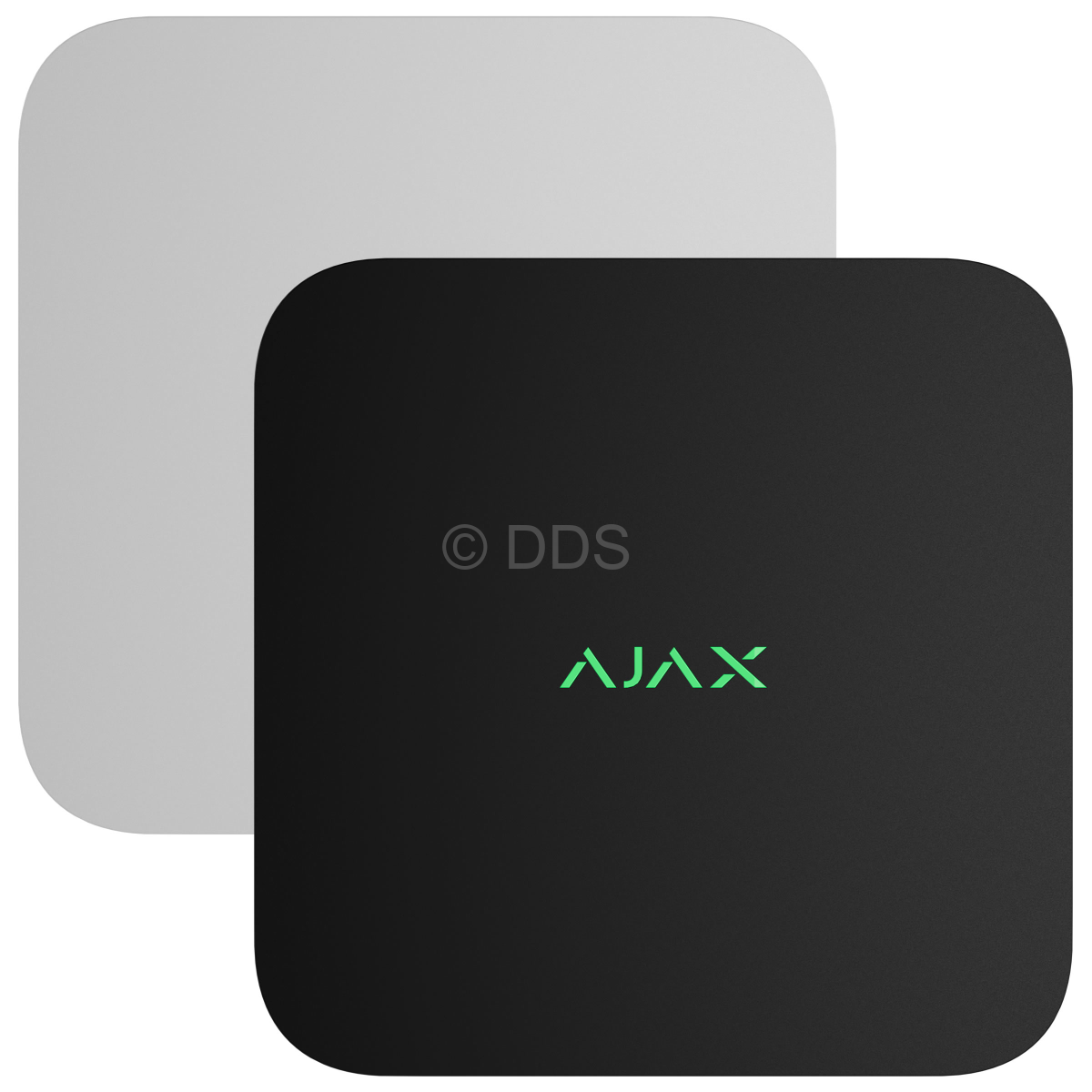

Ajax NVR (8ch)
Save
100%
100%
Ajax NVR is a network video recorder for home and office video surveillance, supporting Ajax IP cameras as well as third-party IP cameras. NVR records the received data with corresponding settings and a hard drive (not included). If the hard drive is not installed, the video recorder is used only for integrating third-party IP cameras into the Ajax system. NVR provides users with video alarm verification. NVR requires Internet access to connect to the Ajax Cloud service. The video recorder is connected to the network via Ethernet using the corresponding connector. A hub is only used to add NVR to the Ajax system.
| Technical Specifications | |
| Classification | Network video recorder |
| Installation method | Indoors |
| Compatibility | Operates with Hub, Hub Plus, Hub 2, Hub 2 Plus, and Hub Hybrid |
| Maximum number of cameras | 8 |
| Maximum resolution | Up to 8MP (4K) at 25/30fps |
| 3rd party support | ONVIF (Profile S/T) RTSP |
| Storage | 1x 3.5" HDD, up to 16TB |
| Supported compression | H.264/H.265 |
| Bandwidth | 100Mbps |
| POE | N/A |
| Video output | N/A |
| Communication channels | Ethernet (10/100Mbps) Bluetooth (BLE, only to set up Ethernet connection) |
| Operating temperature | 0°C to +40°C |
| Operating humidity | Up to 75% |
| Weight | 700g |
| Dimensions | 251mm x 251mm x 51mm |
