Ajax Doorbell
Save
100%
100%
Ajax DoorBell combines the convenience of a smart doorbell with high-end security and video surveillance. When someone rings the doorbell, the user talks to the visitor straight away, with no lags or delays. Equipped with a PIR sensor and built-in AI, DoorBell accurately detects movement and recognizes people, animals, and vehicles. Users can always get a clear view of what is happening at the front door, all in outstanding quality thanks to the doorbell’s wide-range HDR camera.
- Resolution: 4MP
- Field of view: 155°
- IR Range: Up to 6m
- Storage: Ajax NVR or Ajax Cloud
- Chime: using HomeSiren or supplied BellKit, for connection to a wired chime
| Technical Specifications | |
| Classification | Video Doorbell |
| Installation method | Outdoors |
| Compatibility | Operates with NVR or Hub 2/2 Plus/Hybrid/BP |
| Maximum resolution | 2560 x 1440 at 25fps |
| Lens | Fixed 2.8mm |
| Angle of view | Horizontal: 155° Vertical: 90° |
| Storage | NVR Ajax Cloud |
| Motion detection | Up to 4m (using a PIR sensor) Horizontal: 120° Vertical: 100° |
| Speaker | Output power: 1.5W Volume: 85dB |
| Supported compression | H.264 |
| Dynamic ranges | HDR WDR |
| Infrared | Up to 6m |
| Power | 12-24V DC 16-24V AC |
| Wi-Fi | 802.11 b/g/n 2.4GHz |
| Operating temperature | -25°C to +60°C |
| Operating humidity | Up to 90% |
| Protection class | IP54 |

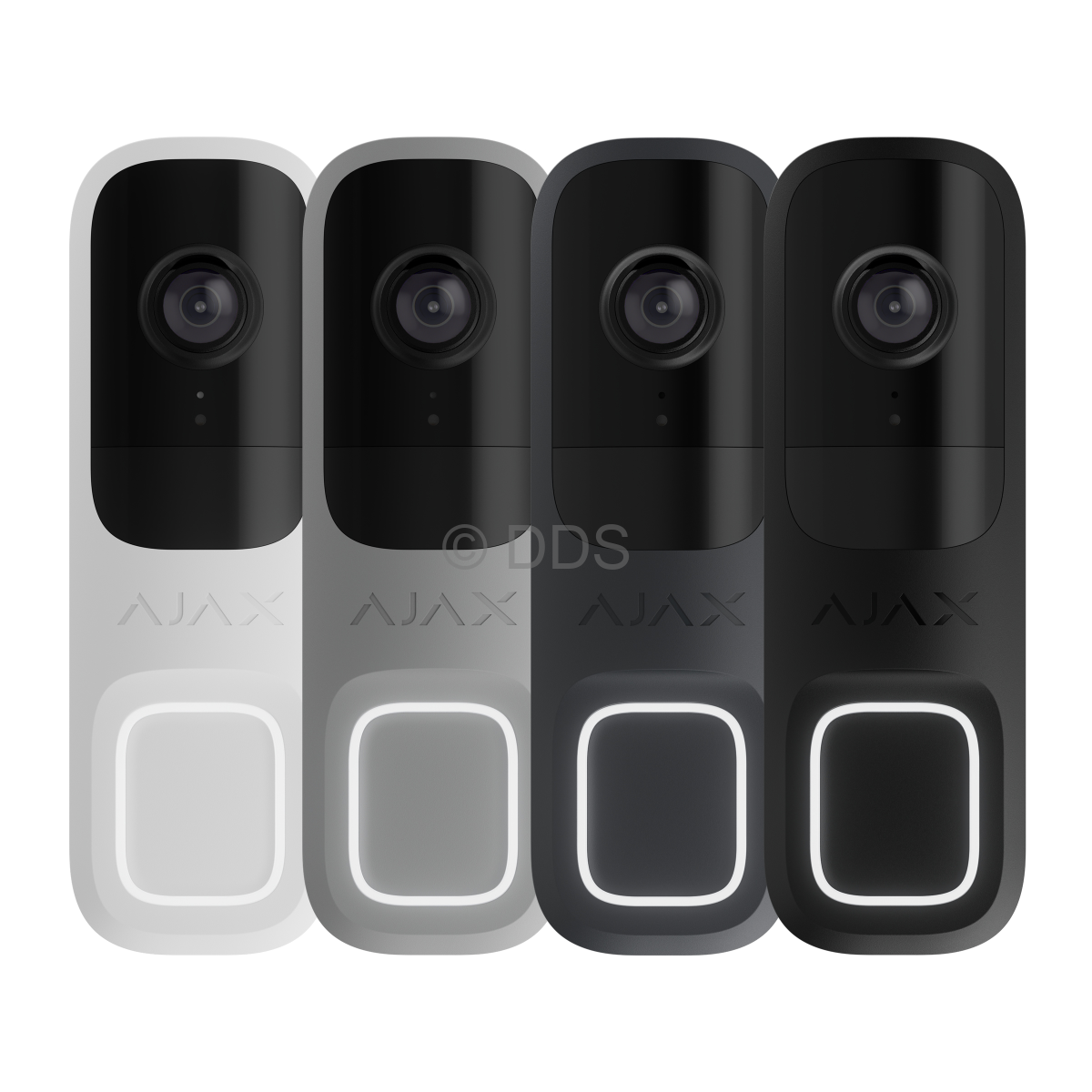

| Colours | White (RAL 9003) Grey (RAL 7004) Graphite (RAL 7024) Black (RAL 9005) |
| Weight | 163g |
| Dimensions | 145mm x 47mm x 34mm |
