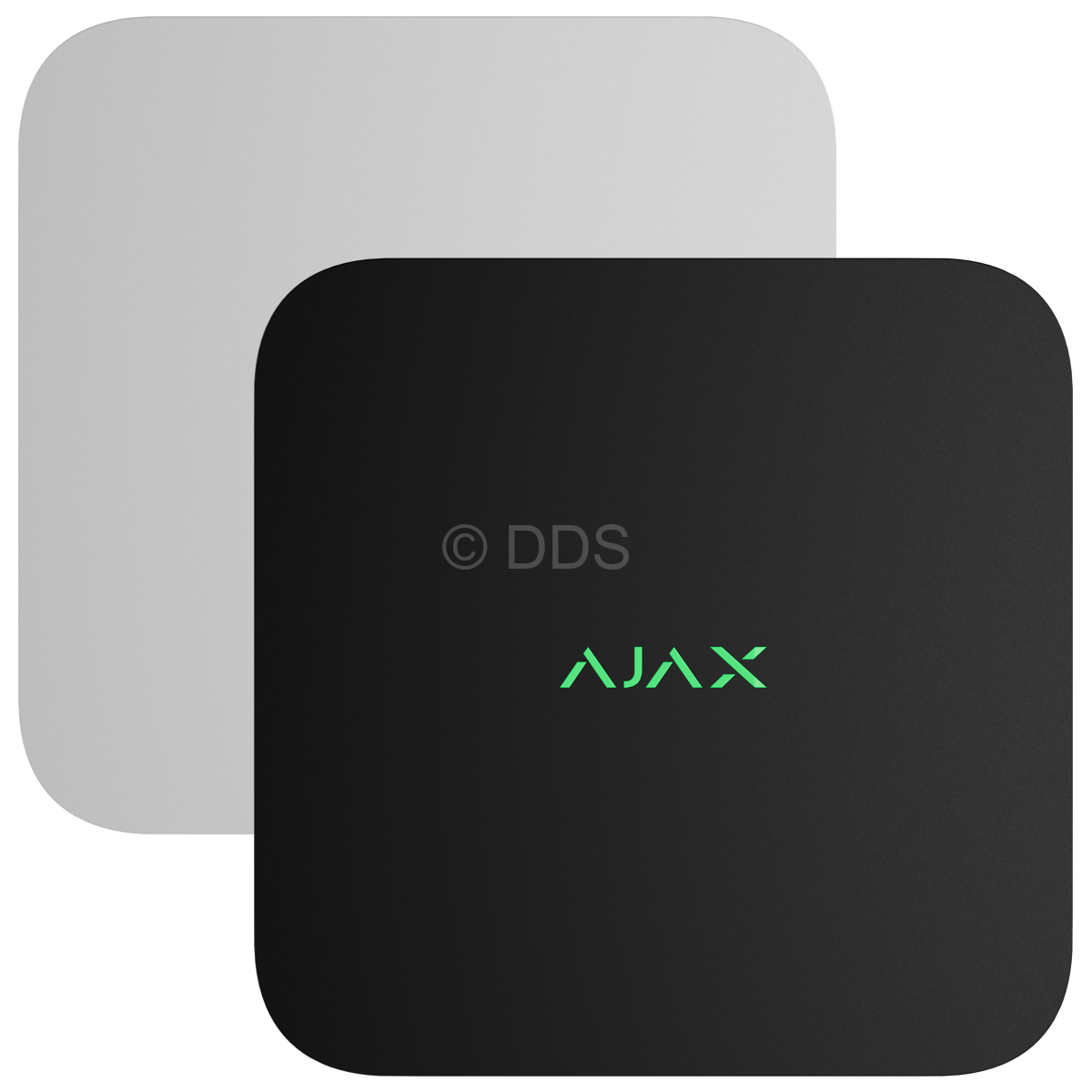

Ajax NVR (16ch)

Call us for a price

AJX-NVR16(77609)

Ajax NVR is a network video recorder for home and office video surveillance, supporting Ajax IP cameras as well as third-party IP cameras. NVR records the received data with corresponding settings and a hard drive (not included). If the hard drive is not installed, the video recorder is used only for integrating third-party IP cameras into the Ajax system. NVR provides users with video alarm verification. NVR requires Internet access to connect to the Ajax Cloud service. The video recorder is connected to the network via Ethernet using the corresponding connector. A hub is only used to add NVR to the Ajax system.



Technical Specifications
Classification Network video recorder
Installation method Indoors
Compatibility Operates with Hub, Hub Plus, Hub 2, Hub 2 Plus, and Hub Hybrid
Maximum number of cameras 16
Maximum resolution Up to 8MP (4K) at 25/30fps
3rd party support ONVIF (Profile S/T)
RTSP
Storage 1x 3.5" HDD, up to 16TB
Supported compression H.264/H.265
Bandwidth 100Mbps
POE N/A
Video output N/A
Communication channels Ethernet (10/100Mbps)
Bluetooth (BLE, only to set up Ethernet connection)
Operating temperature 0°C to +40°C
Operating humidity Up to 75%
Weight 700g
Dimensions 251mm x 251mm x 51mm
