UNV Hybrid DVR (6ch: 4HD+2IP)

Call us for a price

XVR301-04Q3

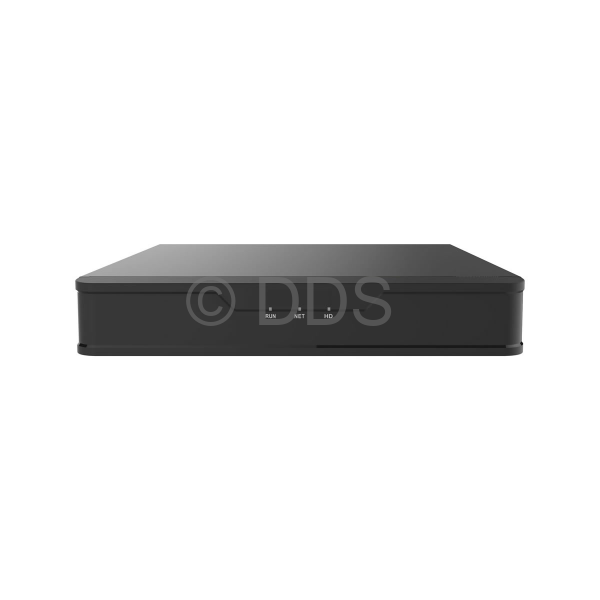

UNV Hybrid DVR range, this DVR (Digital Video Recorder) has HD recording and playback of all channels. It includes a user-friendly mouse driven interface with full remote network and mobile phone access. The DVR can also auto-detect ONVIF compatible IP cameras; it also supports AHD, TVI, CVI, and Analogue cameras.

- 6 Channel Video & Audio (up to 4 BNC and up to 2 IP cameras)
- Hybrid DVR (5-in-1)
- Supports up to 5MP Cameras
- Supports Audio-over-Coax Cameras (TVI only)
- Bandwidth IN: 48Mbps, OUT: 48Mbps
- HDMI, VGA  & CVBS Output
- ONVIF Compliance (Profiles S, T)
- Supports H.264 and H.265
- Fanless design
- Two-way Audio
- Mac Compatible
- Compatible with Sentinel Remote Monitoring



Click here to select Hard Drive options

Video/Audio Input

Video Input:
6ch H.264
Incoming Bandwidth:
48Mbps
Outgoing Bandwidth:
60Mbps
Audio Input:
1ch, RCA
Supported Technologies:
AHD, TVI, CVI, Analogue, IP

Video/Audio Output

Live View/ Playback/ Recording Resolution:
5MP/4MP/3MP/1080P/720P/D1/VGA/CIF/QCIF
Frame Rate:
5MP, 4MP, 3MP, 1080P@30fps
Playback Capacity:
4ch 1080P/2ch 4MP
HDMI Output:
1920x1080, 1280x720, 1024x768
VGA Output:
1920x1080, 1280x720, 1024x768
Audio Output:
1ch, Line out

Hard Disk

Drive quantity:
Up to 1 SATA drive
Drive capacity:
Up to 8TB

Network

Network Interface:
1 RJ45 10M/100M
Protocol:
RTP/RTCP, TCP/UDP ,HTTP, DHCP, DNS, NTP, P2P, UPnP, PPPoE
POE Interface:
N/A
POE Max Power:
N/A

Storage and Backup

Recording Mode:
Manual, Continuous, Schedule, Motion, Sensor, Pre/Post
Playback:
Search by Time, Calendar, Events
Backup Devices:
Via USB Memory Stick, HDD or over the network
Live View:
1, 4, 9 screens, Digital Zoom

General

Power Supply:
12V DC
Power Consumption:
Max 8W (without HDD, USB)
Operating Temperature:
-10°C ~ 55°C
Operating Humidity:
0% - 90% RH
Product Dimensions:
260mm(W) x 240mm(D) x 46mm(H)

Application

Supported OS:
Windows 7+, MacOS X 10.11+

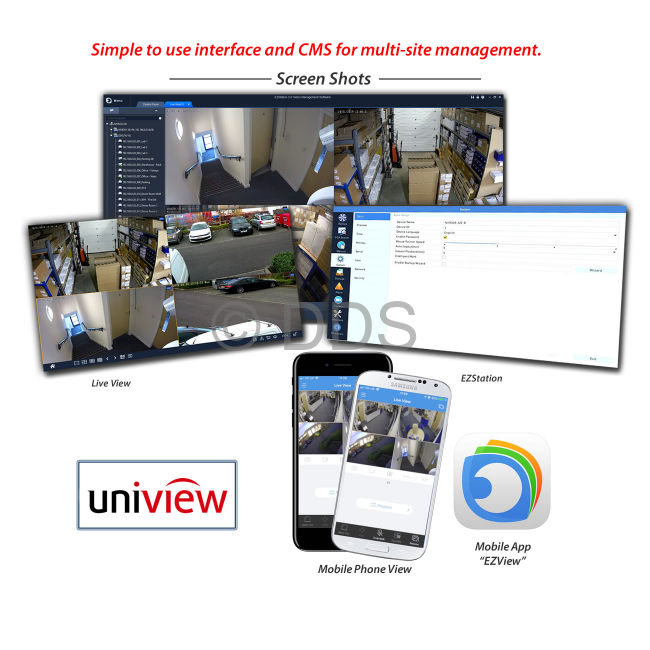

Remote Software:
Internet Explorer 11+, EZStation VMS
Supported Devices:
iOS, Android
Mobile App:
EZView
Notifications:
Email or Push

Interface

Video Outputs:
HDMI (x1), VGA (x1), BNC (x1)
USB:
USB 2.0 (x2)
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
N/A
PTZ Control:
Onvif / RS-485
Control:
Mouse control

This recorder has the following special features:



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. The feature requires VCA support from the camera and XVR. This XVR has the capability to do the following:

  • Intrusion Detection - Entering and loitering in a pre-defined virtual region (only 1ch)
  • Line Crossing - Detect when a pre-defined virtual line has been crossed (only 1ch)
  • Motion Detection - Movement within a pre-defined virtual region
