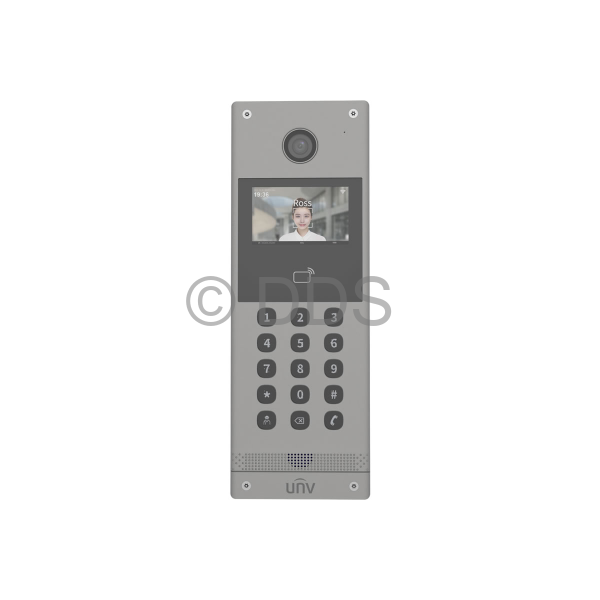

Uniview Outdoor Station (apartment)

Call us for a price

OEU-301S-HMKA

The Uniview outdoor station has a 2MP camera, giving a clear full HD view. It has a 3m infrared range, built-in microphone and speaker for 2-way audio; as well as an IC card reader which supports 13.56MHz credentials, and 2 door lock interfaces. It has a 15-button keypad, allowing it to call up to 500 indoor monitors or a central management desk.

- Resolution: 2MP (1920 x 1080), POE
- Smart IR, Up To 3m IR Range
- Built-in Microphone
- Built-in Speaker



Technical Specifications
Camera Resolution 1920 x 1080
Illumination Infrared (up to 3m)
WDR Supported
Field of View  Horizontal: 106.9°
Vertical: 56.9°
Diagonal: 127.9°
Audio quality Noise reduction, echo cancellation, auto gain control
Protocol Uniview private protocol
Audio compression PCM, G711, MP3 (128kbps)
Ingress protection IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details)
IK08
Interface Power supply (x1), network interface (x1), RS485 (x1), door lock interface (x2), door opening button (x2)door magnet (x2)IO input (x4), IO output (x2)
Card capacity 10,000 (supports 13.56MHz)
Power DC12V ±25% or PoE
Consumption: <11W
Network Network Port: 10/100mbps
Dimensions 125mm x 358mm x 53mm
