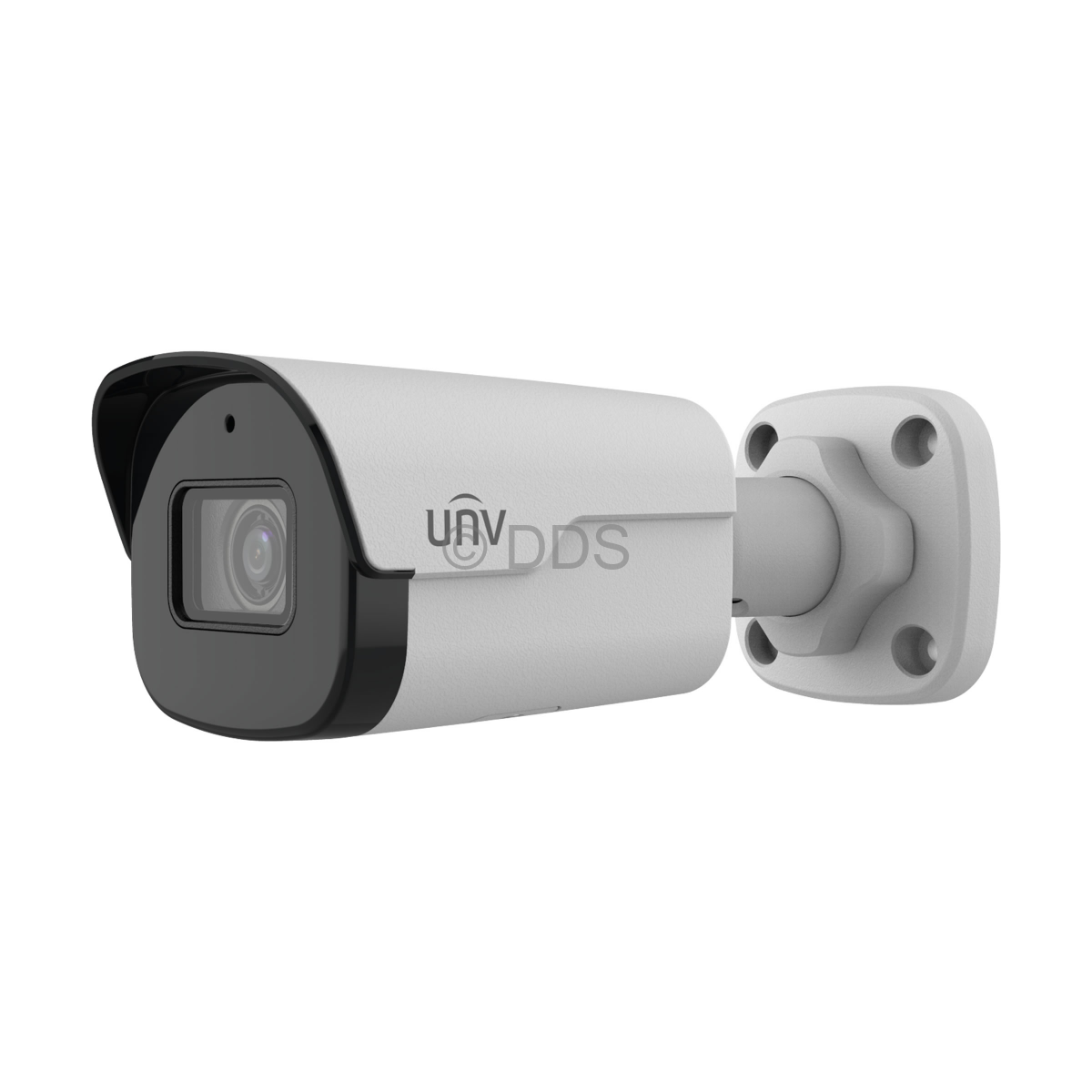

AI Mini Camera (5MP, LightHunter, Smart, Mic)

Call us for a price

IPC2125SB-ADF40KM-I0

Part of the UNV professional range, this mini bullet IP camera boasting an impressive 5 megapixel HD recording resolution and a 4mm fixed-focal lens. This camera has the LightHunter chipset, allowing for full colour at night. Supporting up to Ultra265 compression and 40m of IR range; this camera also features a built-in microphone and MicroSD card slot. Alongside this, it also implements AI for Human Body Detection, allowing it to analyse the picture for movement and only alert/record when a human is detected, ignoring animals and nature.

- Resolution 5MP (2592 x 1944), POE
- Fixed 4mm Lens, Viewing Angle 86.5°(H)
- Smart IR, Up To 40m IR Range
- Built-in Microphone
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- VCA - Line Crossing, Intrusion Detection (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile S)
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- Metal Housing, IP67 Rated

Camera

Image Sensor:
LightHunter CMOS (1/2.7")
Resolution:
5MP
Effective Pixels (H x V):
2880 x 1620
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 4mm Lens
Field of View:
86.5°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.003Lux, 0Lux with IR on
IR Range:
35-40m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2880x1620@25fps
Sub Stream:
720x576@30fps

General

Power:
12V DC (+/- 25%)
Housing:
Metal
Power Consumption:
Max 5W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 90% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
430g

Interface

Built-in Microphone:
Yes

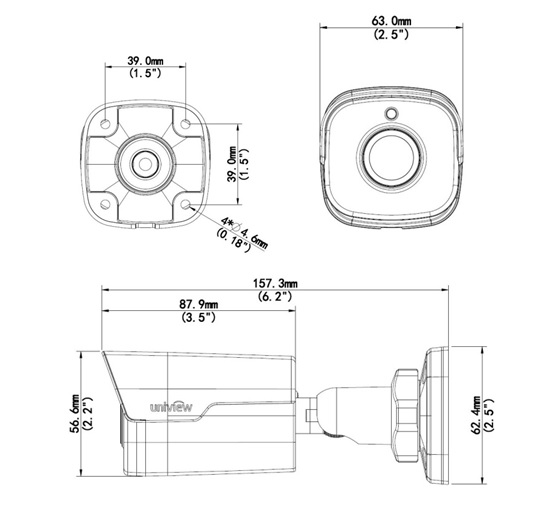

All dimensions are in millimetres (mm)

TR-JB05-A-IN

- Junction box for mini bullet dome camera (Extra back outlet)
- 93mm x 93mm x 43mm
- Weight: 200g

Call us for a price £13.00 You save: £13.00
TR-UP06-B-IN

- Outdoor, pole or rail installation for the IPC22x, IPC24x and IPC212x (square base) cameras
- 99mm x 90mm x 38mm
- Weight 200g

Call us for a price £12.00 You save: £12.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

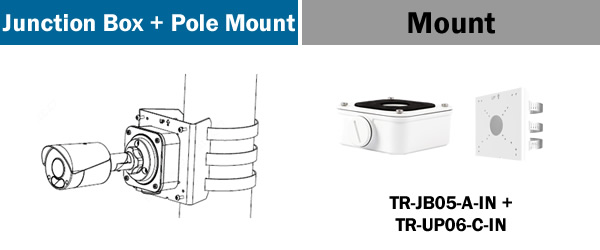

Different ways of mounting this camera:

This camera has the following special features:

ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Enter Area - Entering into a pre-defined virtual region
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Tamper Identification - Detect when the camera has been physically tampered with
