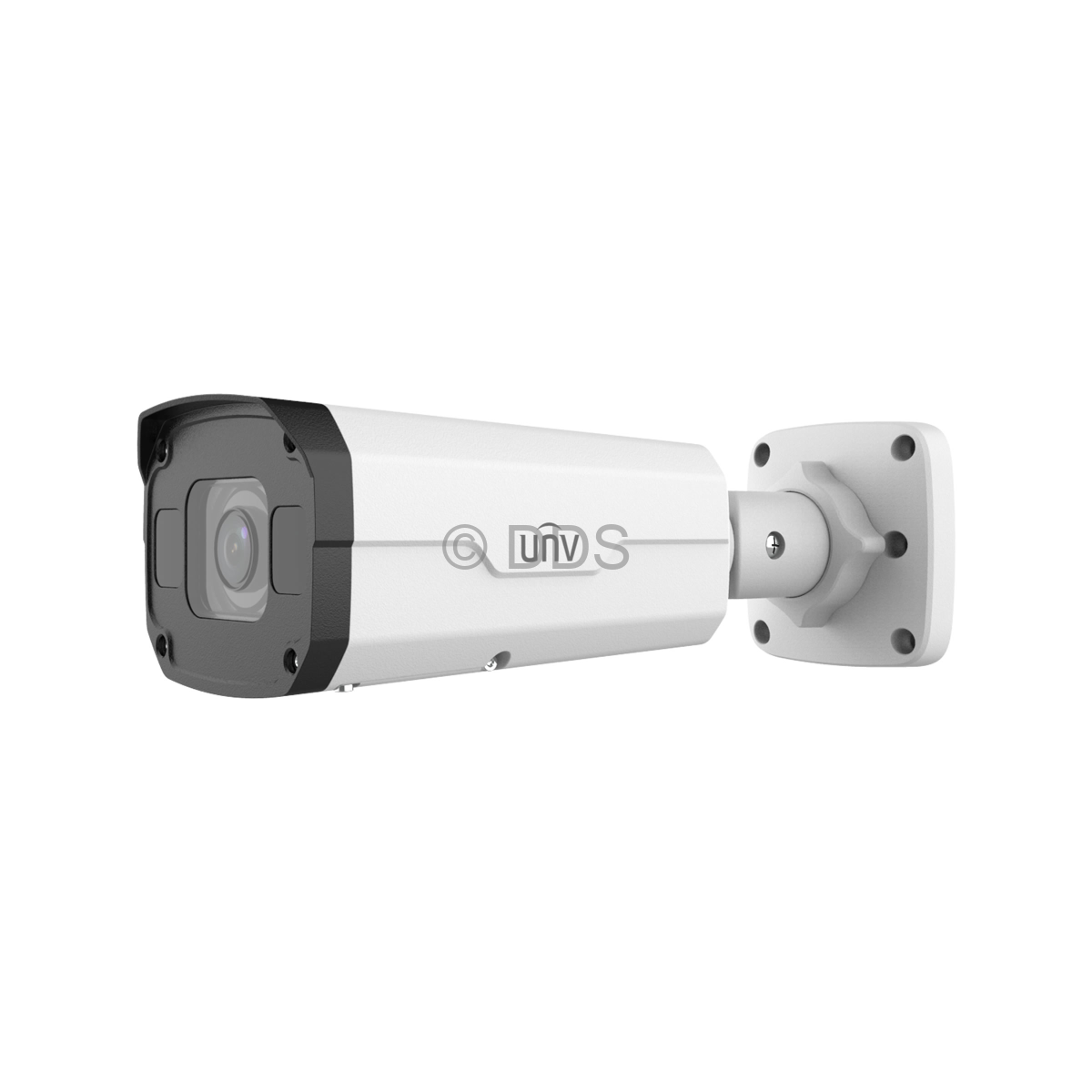

AI LightHunter Bullet Camera (8MP, Auto-Focus, IK10)

Call us for a price

IPC2328SB-DZK-I0

Part of the UNV professional range, this bullet IP camera boasting an impressive 8 megapixel HD recording resolution and a motorised 2.8-12mm auto-focusing lens. This camera has the LightHunter chipset, allowing for full colour at night with sufficient ambient lighting. Supporting up to Ultra265 compression and 50m of IR range; this camera also features a built-in MicroSD card slot. Alongside this, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.

- Vandal Resistant (IK10 Rating)
- Resolution 8MP (3840 x 2160), POE
- Motorised 2.8-12mm Lens, Angles 107.4° ~ 29.2° (H)
- Smart IR, Up To 50m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy & Motion Mask, ROI, 9:16 Corridor Format Support
- VCA - Line Crossing, Face Detection (see Special Features)
- MicroSD Card Slot (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -35°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IK10 and IP67 Rated
- 6kV Surge Protection

Camera

Image Sensor:
LightHunter CMOS (1/2.8")
Resolution:
8MP (4K)
Effective Pixels (H x V):
3840 x 2160
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 2.8-12mm Lens
Field of View:
107.4° ~ 29.2°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

DORI

Detect:
86.9-372.4m
Observe:
34.8-149.0m
Recognise:
17.4-74.5m
Identify:
8.7-37.2m

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.003Lux, 0Lux with IR on
IR Range:
45-50m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
3840x2160@20fps
Sub Stream:
720x576@30fps

General

Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 10.5W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
920g

Interface

Audio I/O:
Audio in (x1), Audio out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)

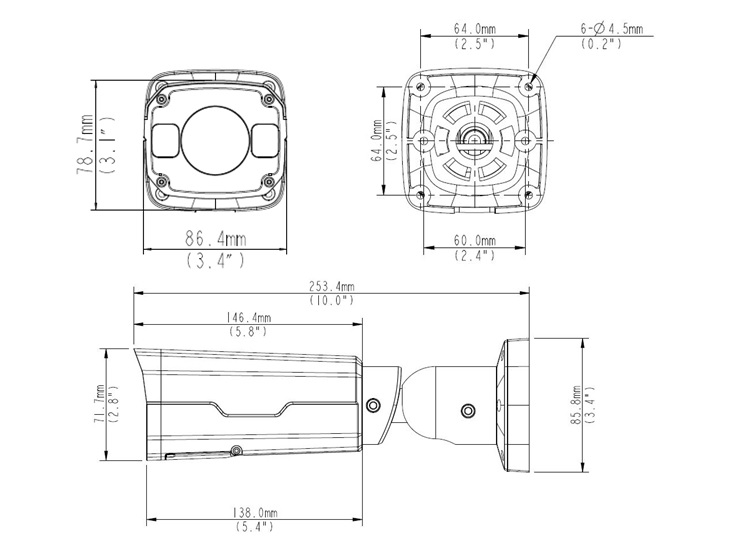

All dimensions are in millimetres (mm)

TR-JB07-D-IN

- Junction box for large bullet cameras (such as IPC222x and IPC23xx)
- 125mm x 125mm x 55mm
- Weight: 750g

Call us for a price £17.00 You save: £17.00
TR-UP06-C-IN

- External pole or rail mount for the IPC22xx and IPC232x series, and can be used with the TR-JB07-D-IN or TR-JB06-A-IN
- 127mm x 136mm x 62.5mm
- Weight: 340g

Call us for a price £17.00 You save: £17.00
TR-UP06-B-IN

- Outdoor, pole or rail installation for the IPC22x, IPC24x and IPC212x (square base) cameras
- 99mm x 90mm x 38mm
- Weight 200g

Call us for a price £12.00 You save: £12.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

Different ways of mounting this camera:

This camera has the following special features:

ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5 kg mass dropped from 400 mm above the impacted surface.



LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Enter Area - Entering into a pre-defined virtual region
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Tamper Identification - Detect when the camera has been physically tampered with
