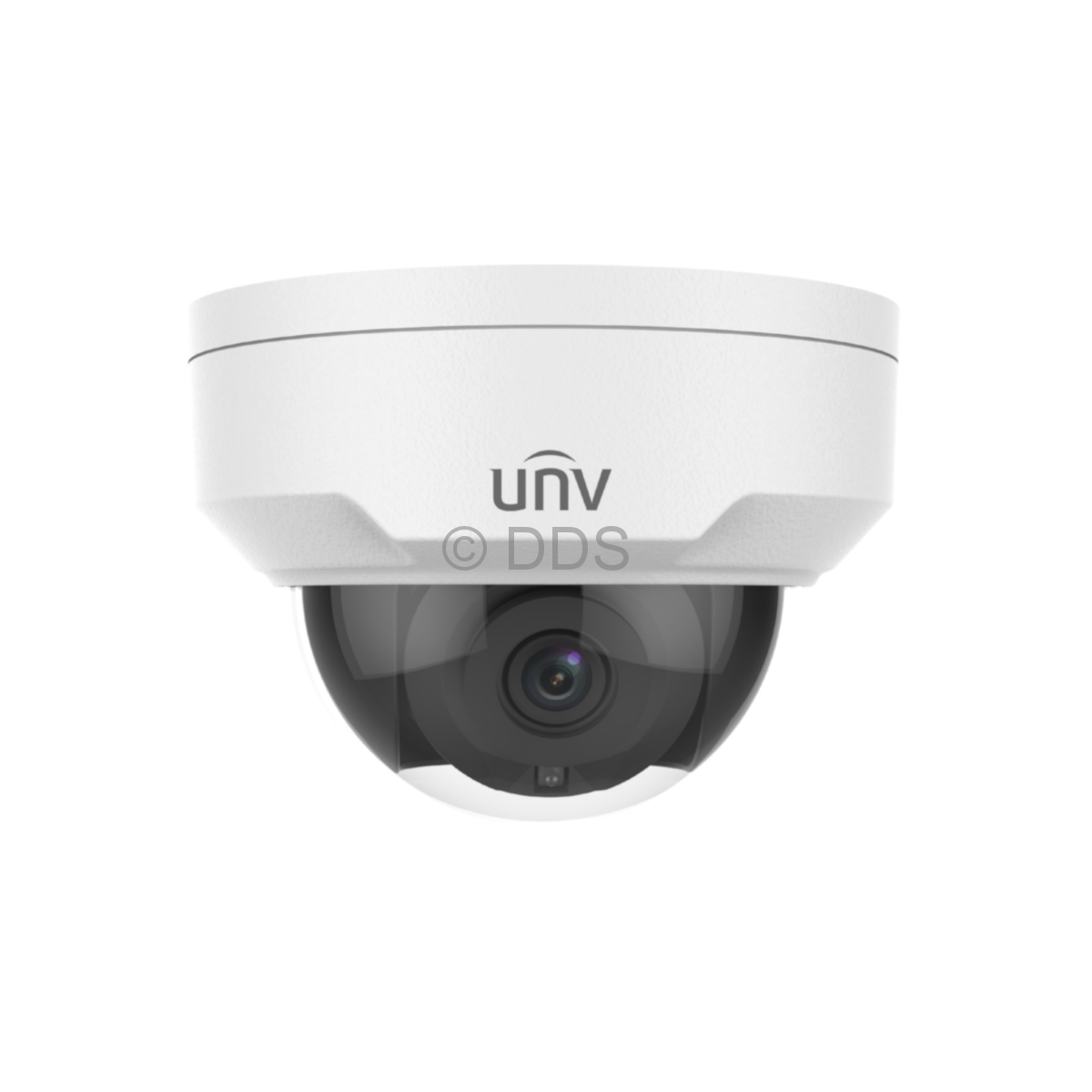

LightHunter Mini Dome Camera (5MP, AI, IK10)

Call us for a price

IPC325SB-DF28K-I0

Part of the UNV LightHunter range, this mini dome IP camera boasting an impressive 5 megapixel HD recording resolution and a 2.8mm fixed-focal lens. This camera has the LightHunter chipset, allowing for full colour at night. Supporting Ultra265 compression and 30m of IR range. This camera also has smart video-analytic features built-in, with deep-learning AI. This allows it to accurately detect humans while ignoring other movements such as trees or animals.

- Vandal Resistant (IK10 Rating)
- Resolution 5MP (2880 x 1620), POE
- Fixed 2.8mm Lens, Viewing Angle 96.1°(H)
- Smart IR, Up To 30m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -35°C to 60°C
- Wide Voltage Range (±25%)
- Metal Housing, IK10 and IP67 Rated
- 2kV Surge Protection

Camera

Image Sensor:
LightHunter CMOS (1/2.7")
Resolution:
5MP
Effective Pixels (H x V):
2880 x 1620
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
96.1°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.003Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2880x1620@30fps
Sub Stream:
720x576@30fps

General

Power:
12V DC (+/- 25%), PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 4.5W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
425g

Interface

Audio I/O:
Microphone input (x1), Audio output (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)

All dimensions are in millimetres (mm)

TR-JB03-G-IN

- Junction box for IPC32x and IPC31x cameras
- 109mm x 109mm x 39mm
- Weight: 200g

Call us for a price £13.00 You save: £13.00
TR-JB07/WM03-G-IN

- Wall mount for IPC361xL, IPC32x and IPC314x cameras
- 229mm x 127mm x 127mm
- Weight: 1kg

Call us for a price £25.00 You save: £25.00
TR-CE45-IN

Indoor, wall or pendant installation for PTZ and dome cameras
- 116.5mm x 239mm

Call us for a price £15.00 You save: £15.00
TR-UF45-J-IN

Indoor, wall or pendant installation for IPC32X series
- 108.5mm x 35mm

Call us for a price £10.00 You save: £10.00
TR-UM06-E-IN

- Mount to install a dome camera at an incline internally, suitable for IPC32x cameras
- 109.6mm x 24.2mm

Call us for a price £6.00 You save: £6.00
TR-UP06-B-IN

- Outdoor, pole or rail installation for the IPC22x, IPC24x and IPC212x (square base) cameras
- 99mm x 90mm x 38mm
- Weight 200g

Call us for a price £12.00 You save: £12.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

This camera has the following special features:

ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.



IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5 kg mass dropped from 400 mm above the impacted surface.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Object Left Behind - Detect when an object has been left inside a region, which wasn't there before
  • Object Removed - Detect when an object has been removed from a region, which was there before
  • Scene Change - Detect when the scene changed
  • Tamper Identification - Detect when the camera has been physically tampered with
