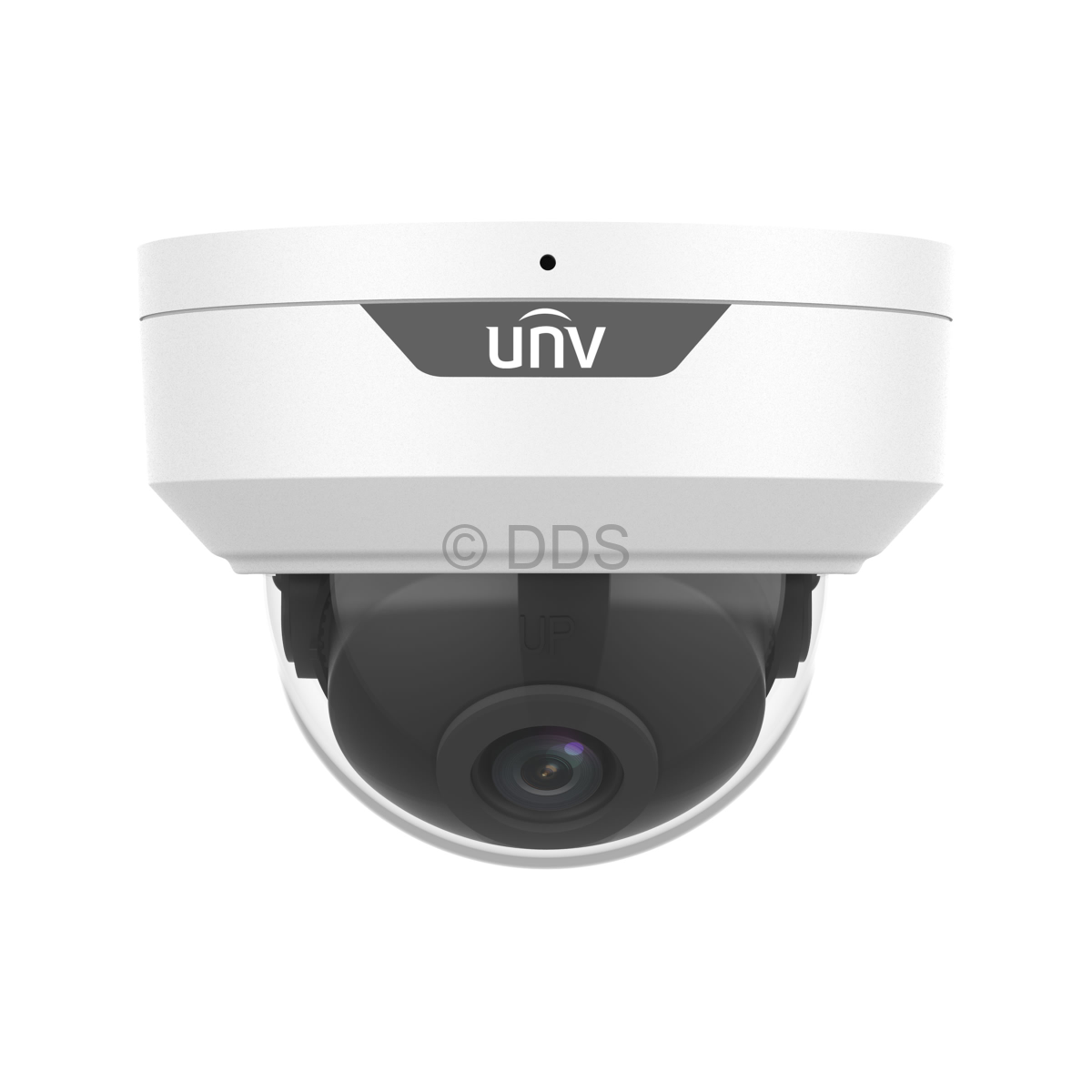

EasyStar Mini Dome Camera (5MP, Mic, IK10)

Call us for a price

IPC325LE-ADF28K-H

Part of the UNV EasyStar range, this mini dome IP camera boasting an impressive 5 megapixel HD recording resolution and a 2.8mm fixed-focal lens. Supporting Ultra265 compression and 30m of IR range.

- Vandal Resistant (IK10 Rating)
- Resolution 5MP (2880 x 1620), POE
- Fixed 2.8mm Lens, Viewing Angle 110°(H)
- Smart IR, Up To 30m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- Metal Housing, IK10 and IP67 Rated
- 4kV Surge Protection

Camera

Image Sensor:
EasyStar CMOS (1/2.7")
Resolution:
5MP
Effective Pixels (H x V):
2880 x 1620
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
110°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 512GB

DORI

Detect:
63.0m
Observe:
25.2m
Recognise:
12.6m
Identify:
6.3m

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.003Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2880x1620@30fps
Sub Stream:
720x576@30fps

General

Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 4.5W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
350g

All dimensions are in millimetres (mm)

TR-JB03-G-IN

- Junction box for IPC32x, IPC361x and IPC31x cameras
- 109mm x 109mm x 39mm
- Weight: 200g

Call us for a price £13.00 You save: £13.00
TR-JB07/WM03-G-IN

- Wall mount for IPC361xL, IPC32x and IPC314x cameras
- 229mm x 127mm x 127mm
- Weight: 1kg

Call us for a price £25.00 You save: £25.00
TR-CE45-IN

Indoor, wall or pendant installation for PTZ and dome cameras
- 116.5mm x 239mm

Call us for a price £15.00 You save: £15.00
TR-UF45-J-IN

Indoor, wall or pendant installation for IPC32X series
- 108.5mm x 35mm

Call us for a price £10.00 You save: £10.00
TR-UM06-E-IN

- Mount to install a dome camera at an incline internally, suitable for IPC32x cameras
- 109.6mm x 24.2mm

Call us for a price £6.00 You save: £6.00
TR-UP06-B-IN

- Outdoor, pole or rail installation for the IPC22x, IPC24x and IPC212x (square base) cameras
- 99mm x 90mm x 38mm
- Weight 200g

Call us for a price £12.00 You save: £12.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

This camera has the following special features:

ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



IK10 Rating

An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5 kg mass dropped from 400 mm above the impacted surface.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Tamper Alarm - Detect when the camera has been physically tampered with
