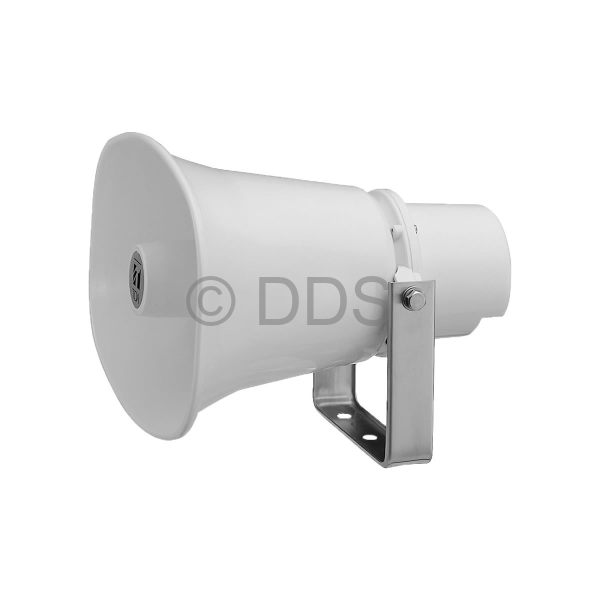

Horn Speaker with built-in amplifier

Call us for a price
SC-P620-EB

The SC-P620 is a highly intelligible and compact horn speaker with a built-in 20W digital power amplifier, that provides public address announcement and remote paging via network video surveillance applications. This powered horn speaker can operate at extreme temperatures. It comes with a powder-coated finish and stainless steel screws to ensure its weatherproof capability. An ideal choice for both indoor and outdoor applications at restricted facilities, train stations, airports, prisons and many more.

- Integrated 20W power amplifier which utilises latest Class D technology
- Switchable Gain: 8dB, 16dB, 24dB & 32dB
- Internal volume control to allow on-site tuning Integration to CCTV systems possible with the majority of IP CCTV systems equipped with an audio line output
- Weatherproof (IP65 rated)
- Requires 12V DC 2A (adapter not supplied)



Technical Specifications
Power source 12V DC, 2A (DC Socket “+” Type A: 5.5 x 2.1mm)
Power consumption 15W (1.25A) at Rated output
25W (2.10A) at Maximum output
Input 0 dB*, 10kΩ, Unbalanced (RCA plug)
Signal gain 8, 16, 24, 32dB (Factory pre-set to 16dB)
Volume adjustment Internal volume control (Factory pre-set to max. position)
Sound pressure level 113 dB (1W, 1m at 500Hz to 2.5kHz peak level)
Frequency response 250Hz - 10kHz
Operating temperature -20°C to +55°C
Dust/water protection IP65
Dimensions 292 x 234 x 280mm
Weight 1.8kg

Click the link below to download a PDF brochure for the SC-P620-EB Horn Speaker

 KIP-779SVR 2MP CameraSC-P620-EB Brochure (PDF)
