Uniview External IP Horn Speaker (30W)
Save
100%
100%

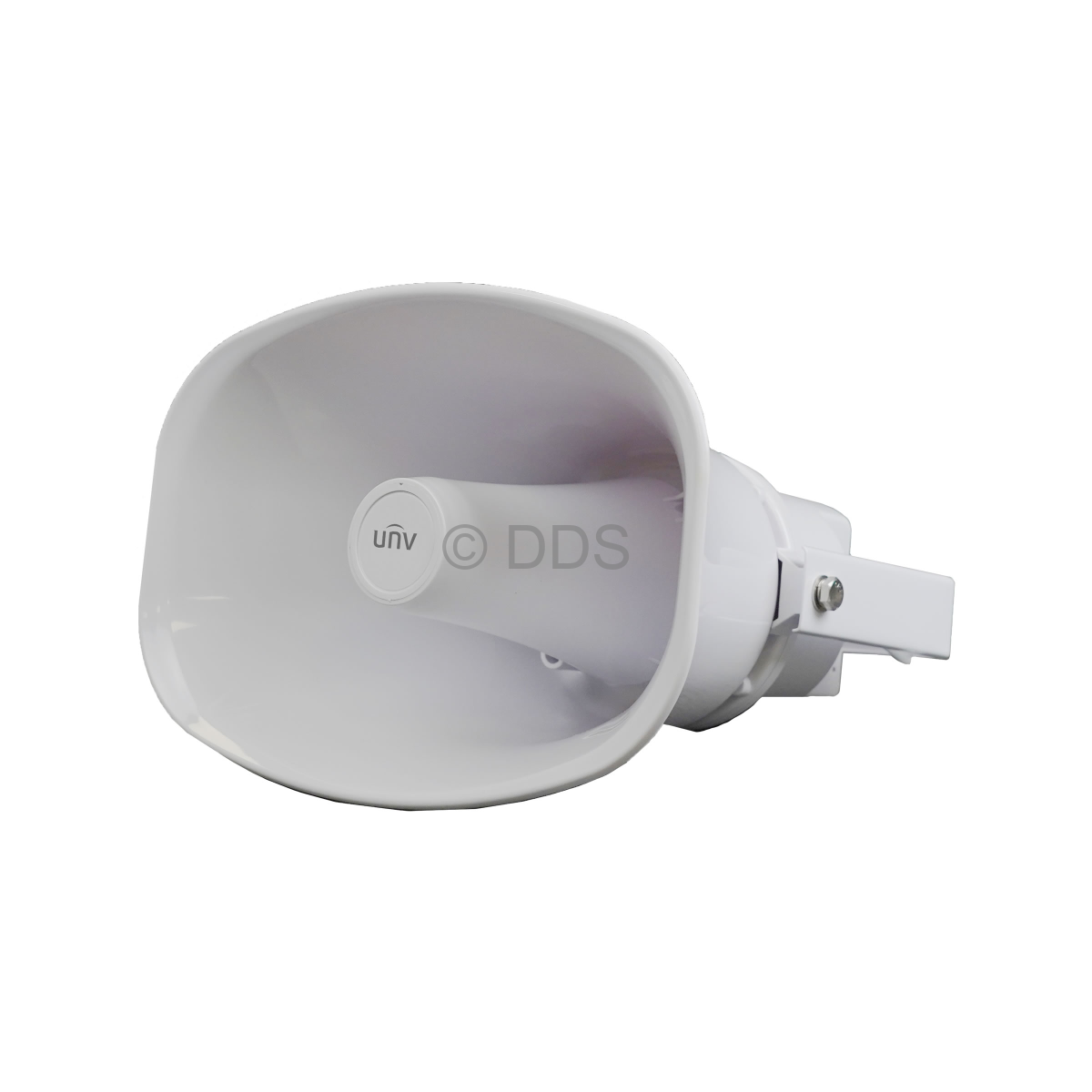

The Uniview IPS302030-S is an external high-power IP horn speaker, supporting POE power and broadcasts. It has built-in storage, allowing for custom audio files to be uploaded directly to the speaker; this in turn can be used with linkage from a camera to trigger particular audio files to be played.
- Rated power: 30W
- Support for two-way audio
- Various options for power (12V DC / 24V DC / POE)
| Specifications | |
| Speaker | |
| Rated Power | 30W |
| Max. Acoustic Pressure | 130 dBSPL |
| Frequency Response | 300 Hz to 12.5 kHz |
| Impedance | 0.2482mm x 0.2482mm |
| Max. Resolution | 8 Ω |
| Microphone | |
| Built-in Microphone | 1 |
| Frequency Response | 100 Hz to 8 kHz |
| Sensitivity | 37 dBV/Pa |
| Sampling Rate | 8 kHz |
| Quantization Bits | 16 bit |
| Audio | |
| Broadcast | Regular, Live, Alarm |
| Two-Way Audio | Supported |
| Compression | G.711U |
| Supported Formats | MP3, WAV |
| File Size | Must be larger than 2KB and smaller than 10MB |
| Storage | 64MB |
| Maximum Number of Audio Files | 100 (including pre-loaded files) |
| Interface | |
| Network | 1x RJ45 10M/100M |
| Audio In | 1 |
| Alarm In | 2 |
| Power Supply | PoE (IEEE 802.3at) / DC 24V,1.4 A / DC 12V,2.5 A |
| Network | |
| Network Protocol | IPv4, HTTP, HTTPS, SSL/TLS, DNS, TCP, UDP, DHCP, UPnP, ARP, SSH |
| Interface Protocol (API) | ONVIF, RTSP, RTP, LAPI |
| General | |
| Material | ABS Plastic |
| Ingress Protection | IP66 |
| Operating Temperature | -30°C ~ +55°C |
| Operating Humidity | 0% ~ 90% (non-condensing) |
| Dimension | 282mm x 205mm x 285mm |
| Weight | 1.7kg |
