Ethernet and Power over Coax

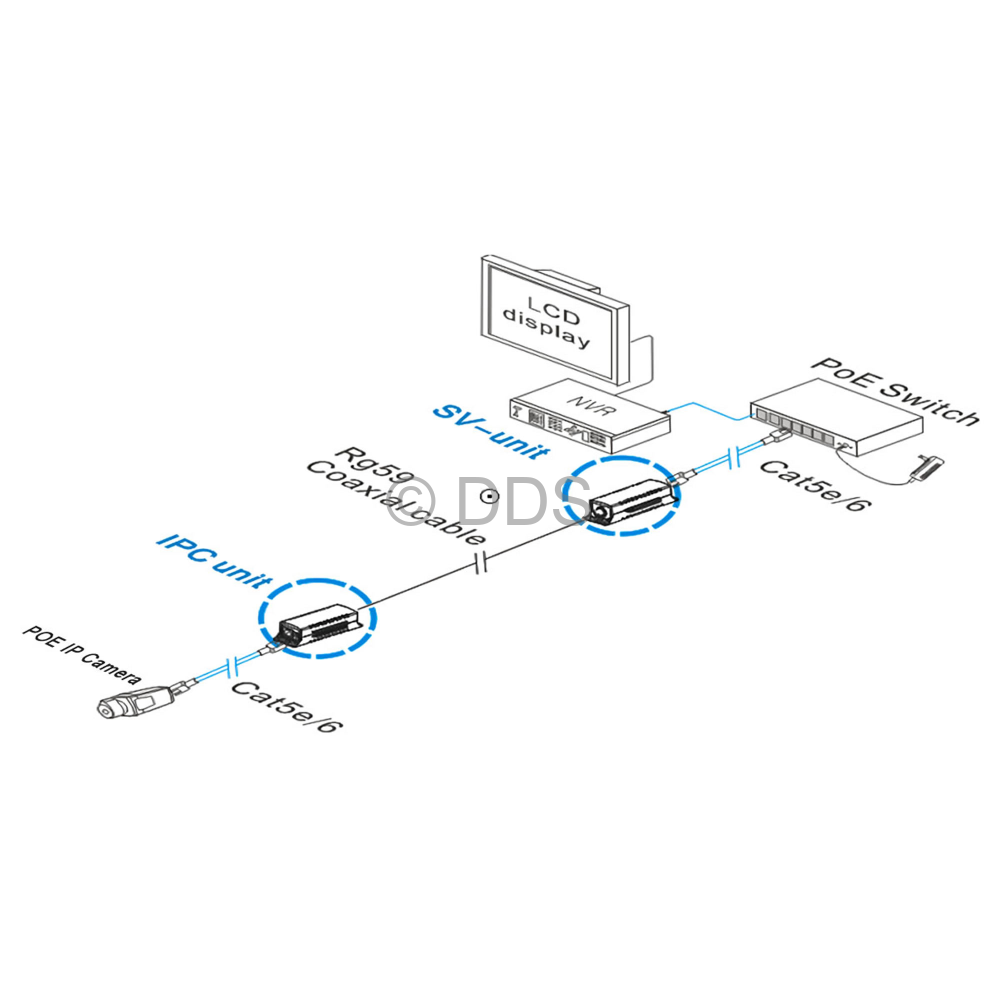

Designed to resolve the problem of using IP cameras with traditional RG59 cable, the POE ethernet extender enables ethernet and POE power transmission distances of up to 300m (cable quality dependent) via an RG59 coaxial cable between the two extender units; with a latency of < 20μs.

- 1 RJ45 Input, optional POE (SV unit)
- 1 RJ45 Output, POE (IPC unit)
- 1 RJ45 port, 1 RG59 BNC port (extender ports)
- Extends standard Ethernet driving distance to 300m
- Supplied as a pair (SV and IPC unit)
- SV unit POE voltage range: 48 - 57vDC
- Compatible with End-span equipment
- Supports POE IEEE802.3af, IEEE802.3at
- Supports IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
- ESD and lightning protection
- Plug 'n Play operation
- Dimensions: 113 x 46 x 29mm
- Weight: 65gms
