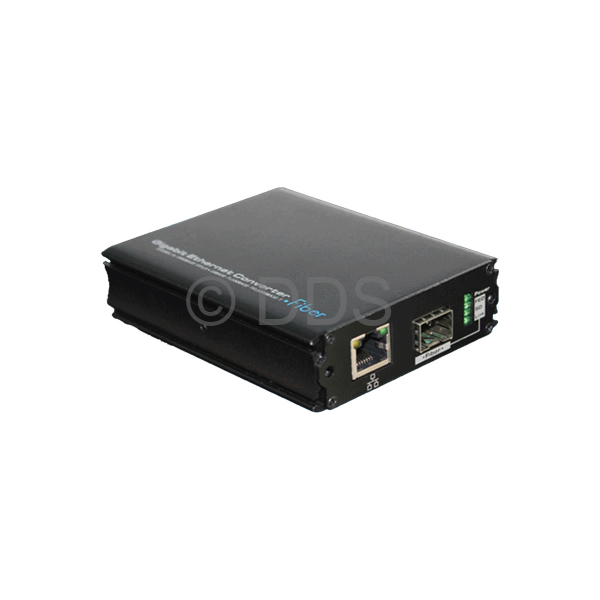

Industrial Gigabit Ethernet/Fibre Converter

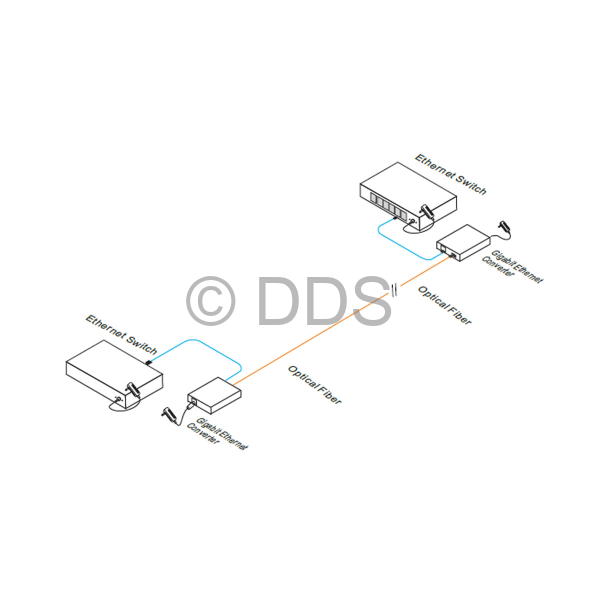

An industrial converter which can convert between ethernet and optical fibre. It can convert between 10/100/1000Base-T and 1000Base-X, at full or half-duplex.
- Package contains Converter (x1), Power Adapter (x1) and Hanger (x2)
| Technical Specifications | |
| Ethernet Port | 10/100/1000Mbps |
| Ethernet transmission distance | 0～100m |
| Fibre Port | LC Port, SFP Optical Module, Single Fiber or Dual Fiber Optional |
| Fibre transmission distance | Depend on SFP module performance |
| Fibre bandwidth | 1.25Gbps |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab/z, 10/100/1000Base-T and 1000Base-X, IEEE 802.3 X |
| LED indicators | Power (1 Red) RJ45 (1 Green) Fibre (3 Green, Link/SD/FED) |
| Power supply | 12~24V DC |
| Surge protection | Up to 6kV |
| ESD protection | Up to 8kV |
| Operating temperature | -40°C to +75°C |
| Dimensions | 103mm х 82mm x 25mm |
| Weight | 160g |
