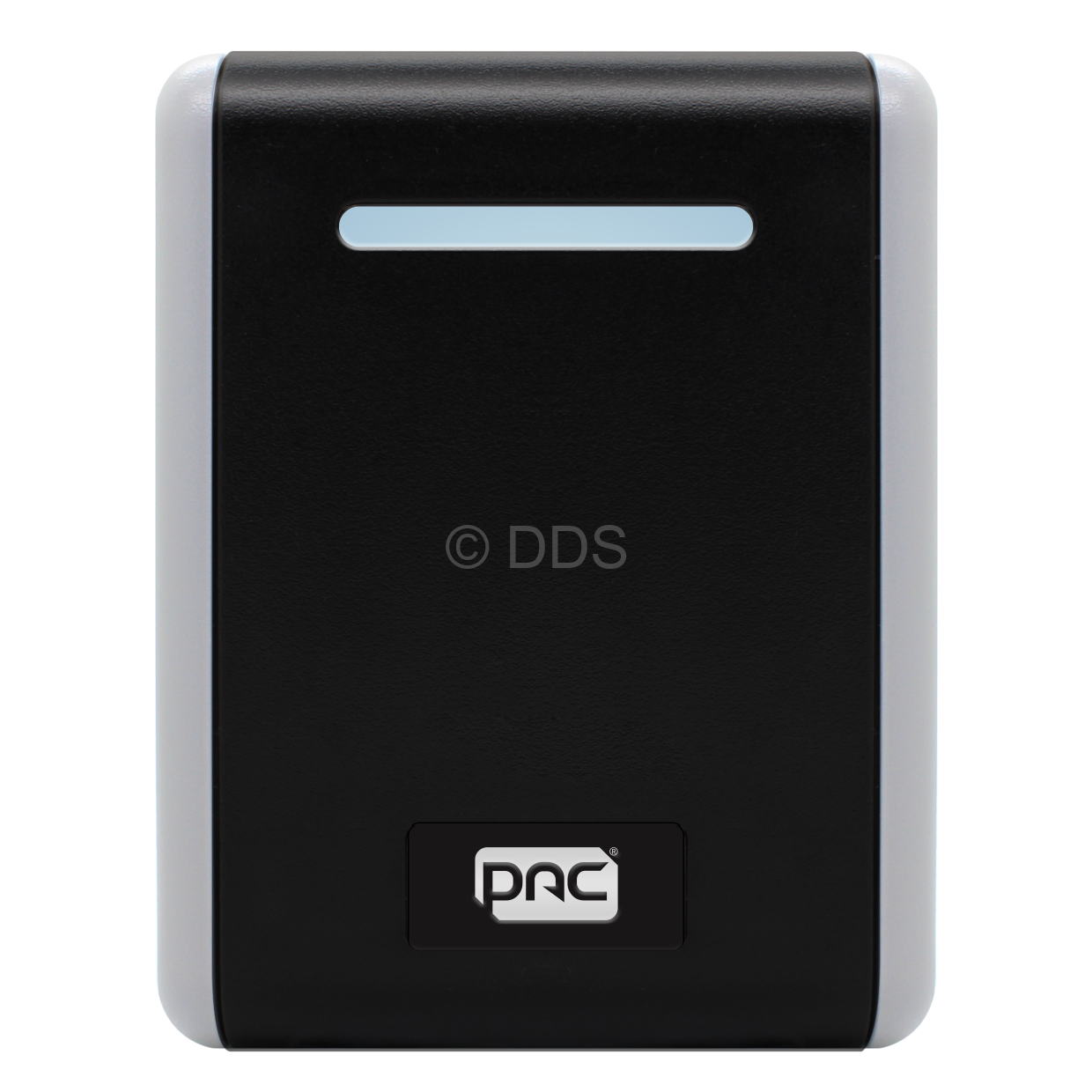

PAC RFID MT Reader (Standard)

Call us for a price

*Lead time of 2-3 days*

CPAC-909020113

PAC's MT Readers provide the one single reader solution that supports all PAC RFID credentials as well as support for all standard LF and HF credentials supported via Wiegand protocols. It is therefore ideal for sites where support of multiple ID Device types is required.

- Integral Tamper circuit and Mounting Plate
- Low Frequency (125kHz and 153.6kHz) and High Frequency (13.56MHz)
- Audible Sounder and Red/Green LEDs
- Security Grade 3
- IP65 rated

Technical Specifications
Programmable Output Formats PAC, PAC32, PAC64 and Wiegand
Supported ID Device formats PAC (Cards and Tokens)
KeyPAC (Cards and Tokens)

PAC OPS™ Lite (Cards and Tokens)
PAC OPS™(Cards and Tokens)
Maximum Read Range LF: Up to 85mm
HF: Up to 45mm
Intruder Grading Security Grade 3, Environmental Class 4A
Ingress Protection Rating IP65
Audio Visual Indication Audible Sounder and Red/Green LEDs
Tamper Output Yes (dependent on controller specification), meets EN 50131-1 & 3
Recommended Cabling 6 core 24 AWG alarm cable unscreened for PAC
Operating Voltage 12V to 24V DC
Maximum Current Requirements <120mA @ 12V DC
Weight 290g
Standards Compliance UKCA, CE, UL, FCC, IC, RoHS & WEEE compliant
Operating temperature range -40°С to +66°С
Permissible humidity 10% to 85%
Dimensions 115mm х 89mm x 28mm
