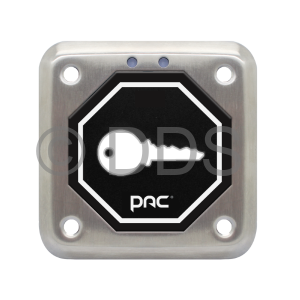

PAC RFID LF Reader (Vandal Resistant)
Save
100%
100%
The Vandal Resistant Reader is designed to work in the most demanding of operating environments as it provides a robust, intruder-graded access reader. The Vandal Resistant Reader is ideal for internal or external installations.
- Raised Key Symbol
- Integral Tamper circuit and Mounting Plate
- Comes with pre-connected 2m cable for ease of installation
- Low Frequency (125kHz and 153.6kHz)
- Audible Sounder and Red/Green LEDs
- Security Grade 3
- IP67 rated
| Technical Specifications | |
| Programmable Output Formats | PAC and Wiegand |
| Supported ID Device formats | PAC (Cards and Tokens) KeyPAC (Cards and Tokens) |
| Maximum Read Range | LF: Up to 40mm |
| Intruder Grading | Security Grade 3, Environmental Class 4A |
| Ingress Protection Rating | IP67 |
| Audio Visual Indication | Audible Sounder and Red/Green LEDs |
| Tamper Output | Yes (dependent on controller specification), meets EN 50131-1 & 3 |
| Recommended Cabling | 6 core 24 AWG alarm cable unscreened for PAC 5-core 22 AWG cable for Wiegand |
| Operating Voltage | 12V to 24V DC |
| Maximum Current Requirements | <100mA @ 12V DC |
| Weight | 442g |
| Standards Compliance | UKCA, CE, UL, FCC, IC, RoHS & WEEE compliant |
| Operating temperature range | -40°С to +66°С |
| Permissible humidity | 10% to 85% |
| Dimensions | 100mm х 100mm x 16mm |
