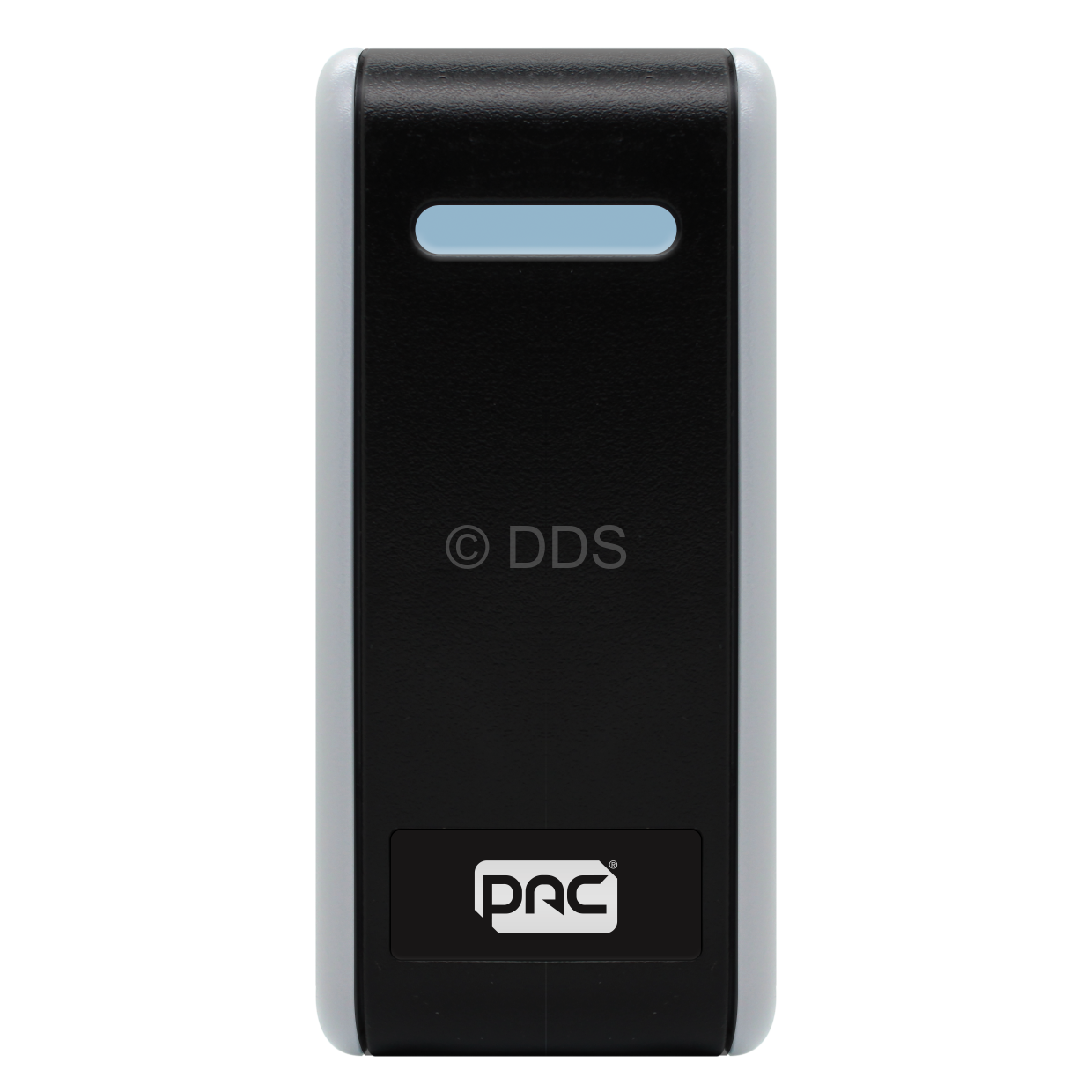

PAC RFID LF Reader (Mullion)

Call us for a price

*Lead time of 2-3 days*

CPAC-909020110

The PAC Low-Frequency reader range supports all PAC LF ID Devices, as well as many Wiegand format Tokens. Designed to work in the most demanding of operating environments, LF Readers support installations which require reliability and security. The reader comes in a sleek, two-colour housing with a light bar for visual indication.

- Integral Tamper circuit and Mounting Plate
- Low Frequency (125kHz and 153.6kHz)
- Audible Sounder and Red/Green LEDs
- Security Grade 3
- IP65 rated

Technical Specifications
Programmable Output Formats PAC and Wiegand
Supported ID Device formats PAC (Cards and Tokens)
KeyPAC (Cards and Tokens)
Maximum Read Range Up to 85mm
Intruder Grading Security Grade 3, Environmental Class 4A
Ingress Protection Rating IP65
Audio Visual Indication Audible Sounder and Red/Green LEDs
Tamper Output Yes (dependent on controller specification), meets EN 50131-1 & 3
Recommended Cabling 6 core 24 AWG alarm cable unscreened for PAC or 5-conductor 22AWG for Wiegand
Operating Voltage 12V to 24V DC
Maximum Current Requirements <100mA @ 12V DC
Weight 150g
Standards Compliance UKCA, CE, UL, FCC, IC, RoHS & WEEE compliant
Operating temperature range -40°С to +66°С
Permissible humidity 10% to 85%
Dimensions 105mm х 48mm x 28mm
