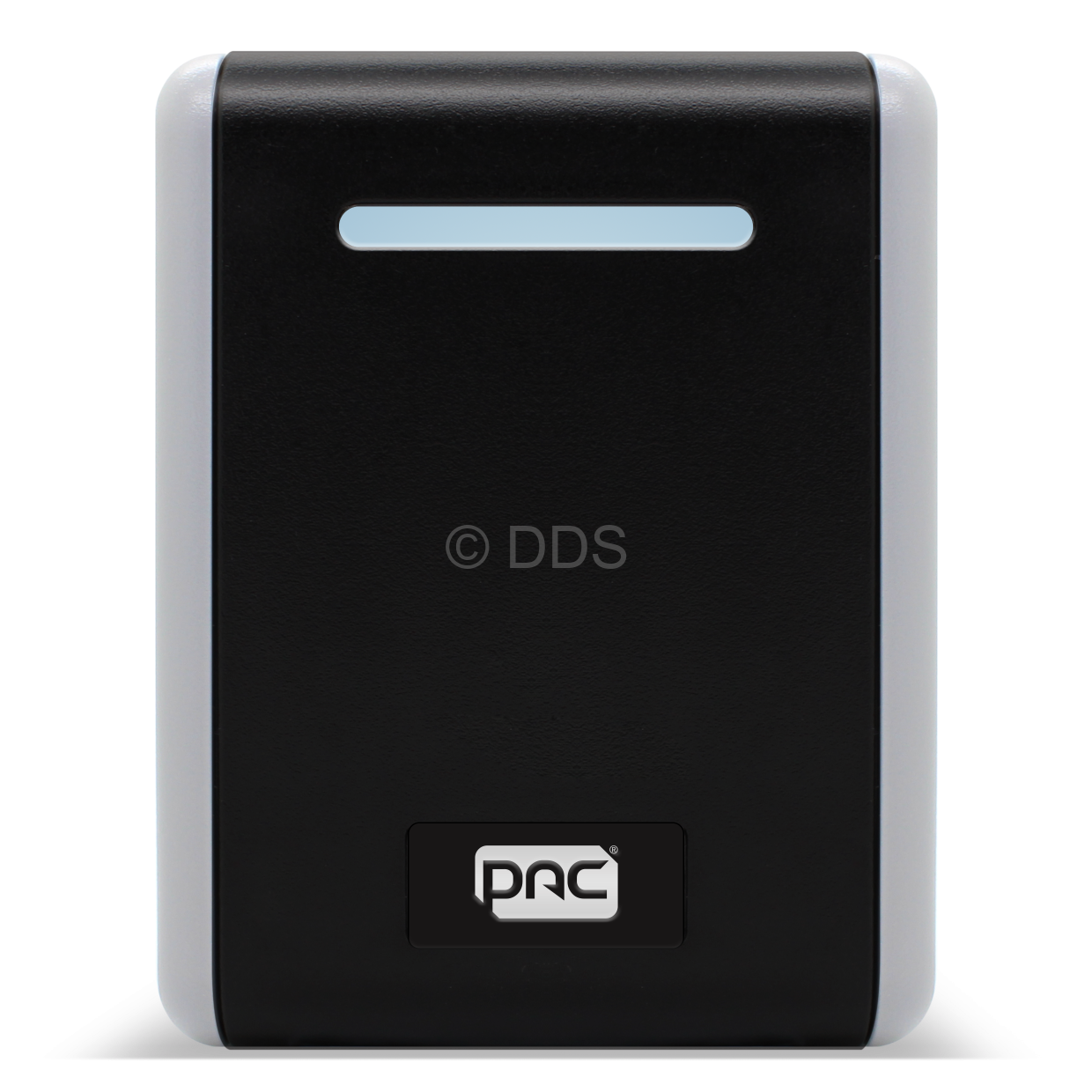

PAC RFID HF Reader (Standard)
Save
100%
100%
The Standard Reader provides the same functionality as a Mullion Reader but in a larger form. It supports all PAC HF ID Devices as well as many Wiegand format Tokens. Designed to work in the most demanding of operating environments, HF Readers support installations which require reliability and security. The reader comes in a sleek, two-colour housing with a light bar for visual indication.
- Integral Tamper circuit and Mounting Plate
- High Frequency (13.56MHz)
- Audible Sounder and Red/Green LEDs
- Security Grade 3
- IP65 rated
| Technical Specifications | |
| Programmable Output Formats | PAC32, PAC64 and Wiegand |
| Supported ID Device formats | PAC OPS™ Lite (Cards and Tokens) PAC OPS™(Cards and Tokens) Wiegand |
| Maximum Read Range | Up to 45mm |
| Intruder Grading | Security Grade 3, Environmental Class 4A |
| Ingress Protection Rating | IP65 |
| Audio Visual Indication | Audible Sounder and Red/Green LEDs |
| Tamper Output | Yes (dependent on controller specification), meets EN 50131-1 & 3 |
| Recommended Cabling | 6 core 24 AWG alarm cable unscreened for PAC |
| Operating Voltage | 12V to 24V DC |
| Maximum Current Requirements | <90mA @ 12V DC |
| Weight | 290g |
| Standards Compliance | UKCA, CE, UL, FCC, IC, RoHS & WEEE compliant |
| Operating temperature range | -40°С to +66°С |
| Permissible humidity | 10% to 85% |
| Dimensions | 105mm х 48mm x 28mm |
