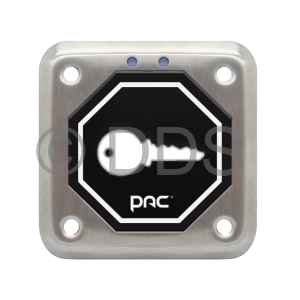

PAC RFID HF Reader (Vandal Resistant)

Call us for a price

*Lead time of 2-3 days*

CPAC-909020118

The Vandal Resistant Reader is designed to work in the most demanding of operating environments as it provides a robust, intruder-graded access reader. The Vandal Resistant Reader is ideal for internal or external installations.

- Raised Key Symbol
- Integral Tamper circuit and Mounting Plate
- Comes with pre-connected 2m cable for ease of installation
- High Frequency (13.56MHz)
- Audible Sounder and Red/Green LEDs
- Security Grade 3
- IP67 rated

Technical Specifications
Programmable Output Formats PAC32, PAC64, Wiegand
Supported ID Device formats PAC OPS™ Lite (Cards and Tokens)
PAC OPS™ (Cards and Tokens)
Maximum Read Range HF: Up to 40mm
Intruder Grading Security Grade 3, Environmental Class 4A
Ingress Protection Rating IP67
Audio Visual Indication Audible Sounder and Red/Green LEDs
Tamper Output Yes (dependent on controller specification), meets EN 50131-1 & 3
Recommended Cabling 6 core 24 AWG alarm cable unscreened for PAC
5-core 22 AWG cable for Wiegand
Operating Voltage 12V to 24V DC
Maximum Current Requirements <100mA @ 12V DC
Weight 442g
Standards Compliance UKCA, CE, UL, FCC, IC, RoHS & WEEE compliant
Operating temperature range -40°С to +66°С
Permissible humidity 10% to 85%
Dimensions 100mm х 100mm x 16mm
