PAC 512 DCi Controller (Enclosure)

Call us for a price

*Lead time of 2-3 days*

CPAC-909030154

The PAC 512 DCi is an intelligent IP network capable 2-door access controller that can be deployed within a PAC access control system to support on-site access control, lift control and door functions either singularly or part of a larger PAC system. It relies on management software for many additional features but has in-built databases and processing ability to execute local access control and features associated with door management.

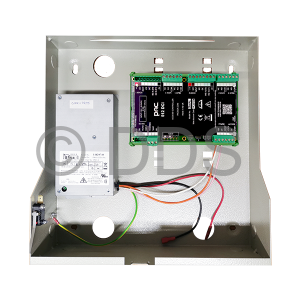

IP controller, complete with lockable metal case, tamper switch and 3Amp PSU

- Read In/Out when using PAC and PAC64 output readers
- Configurable for Residential or Commercial Applications
- Up to 20,000 ID Devices
- Local anti-passback
- 2 Readers per channel when using PAC or PAC64bit output readers
- 3 Amp thermal fuse protection to Lock relays
- Built in TCP/IP for communication to PAC Access Central or EasiNet Residential software and RS485 for secondary PAC 512 Controllers



Technical Specifications
Number of ID Devices supported 20,000
Supported ID Device formats PAC (Cards and Tokens)
Key PAC (Cards and Tokens)
PAC Ops™ Lite (Cards and Tokens)
PAC Ops™ (Cards and Tokens)
Number of doors supported 2 doors with up to 4 access control devices as per the following options:
- An access control reader per door
- An access control reader and Push To Exit (PTE) device per door
- 2 access control readers per door (read-in and read-out)
Configuration Via PC with PAC Access Central/EasiNet Residential software
Event storage 20,000 events
Additional Connections Tamper override
Access Controller input devices PAC readers (LF, HF, MT, Architect and Biometric)
PAC PTE switches
Door contacts
Alarm inputs
Input connection features 1 x tamper alarm input
1 x override input
1 x TCP/IP input
1 x RS-485 input
1 x input per door channel
Output connection features 2 x 5 Amp Lock relays @ 30V DC
2 x 5 Amp Auxiliary relays @ 30V DC
Distance to input devices 70m
Recommended Cabling 0.22mm 8 core alarm cable
Power input 220-240V AC, 50Hz
System power 12–24 V DC
Standards Compliance UKCA, CE, UL, FCC, IC, RoHS & WEEE compliant
Operating temperature range 0°С to +35°С
Permissible humidity 10% to 85%
Dimensions 335mm х 355mm x 90mm
