PAC 512 DC Controller (Enclosure)
Save
100%
100%
The PAC 512 DC is an intelligent 2-door access controller that can be deployed within a PAC access control system to support on-site access control, lift control and door functions either singularly or as part of a larger PAC system. It relies on management software for many additional features but has in-built databases and processing ability to execute local access control and features associated with door management.

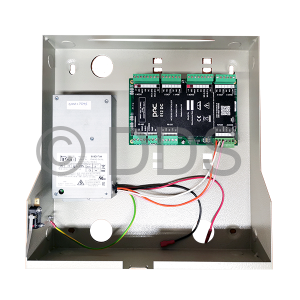

RS-485 serial controller, pre-wired with 3 Amp PSU in metal case with tamper switch and circuit
- Read In/Out when using PAC and PAC64 output readers
- Configurable for Residential or Commercial Applications
- Up to 20,000 ID Devices
- Local anti-passback
- 2 Readers per channel when using PAC or PAC64bit output readers
- 3 Amp thermal fuse protection to Lock relays
| Technical Specifications | |
| Number of ID Devices supported | 20,000 |
| Supported ID Device formats | PAC (Cards and Tokens) Key PAC (Cards and Tokens) PAC Ops™ Lite (Cards and Tokens) PAC Ops™ (Cards and Tokens) |
| Number of doors supported | 2 doors with up to 4 access control devices as per the following options: - An access control reader per door - An access control reader and Push To Exit (PTE) device per door - 2 access control readers per door (read-in and read-out) |
| Configuration | Via PC with PAC Access Central/EasiNet Residential software |
| Event storage | 20,000 events |
| Additional Connections | Tamper override |
| Access Controller input devices | PAC readers (LF, HF, MT, Architect and Biometric) PAC PTE switches Door contacts Alarm inputs |
| Input connection features | 1 x tamper alarm input 1 x override input 1 x TCP/IP input 1 x RS-485 input 1 x input per door channel |
| Output connection features | 2 x 5 Amp Lock relays @ 30V DC 2 x 5 Amp Auxiliary relays @ 30V DC |
| Distance to input devices | 70m |
| Recommended Cabling | 0.22mm 8 core alarm cable |
| Power input | 220-240V AC, 50Hz |
| System power | 12–24 V DC |
| Standards Compliance | UKCA, CE, UL, FCC, IC, RoHS & WEEE compliant |
| Operating temperature range | 0°С to +35°С |
| Permissible humidity | 10% to 85% |
| Dimensions | 335mm х 355mm x 90mm |
