Gigabit POE Splitter

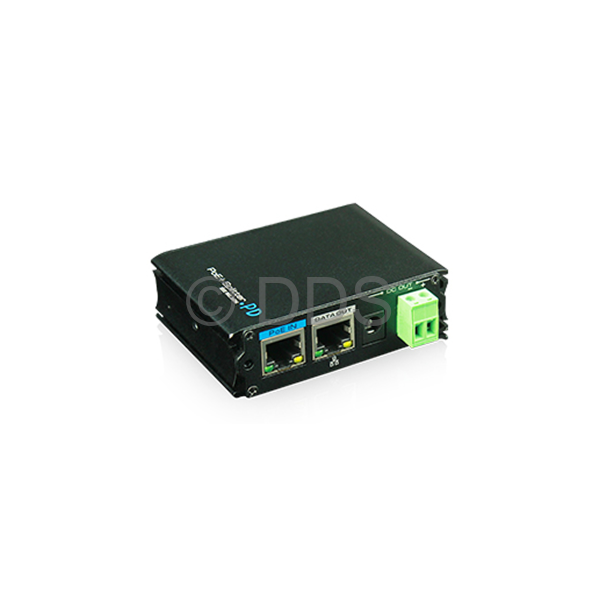

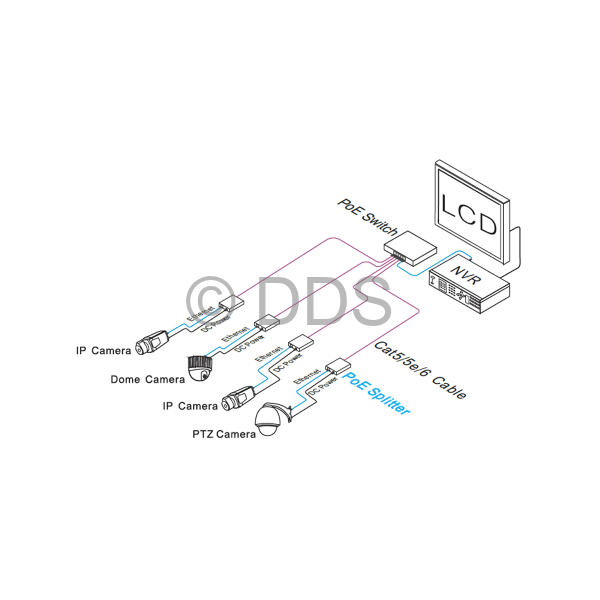

Easily power your non-PoE devices using your existing Ethernet setup. This PoE Splitter features one PoE input port, one Ethernet output port, and one DC power output port - delivering both data and power over a single cable. Compatible with all IEEE 802.3af/at PoE switches and adapters, it supports both Mode A (endspan) and Mode B (midspan) configurations. The splitter provides up to 25W of power and supports distances up to 100 meters, making it ideal for IP cameras, access points, or other networked devices that don’t support PoE natively.
- IEEE 802.3af/at compliant
- Supports Mode A (Endspan) & Mode B (midspan)
- Up to 25W power output
- 100m transmission distance
- Package contains Splitter (x1), DC plug cable (x1) and Hanger (x2)
| Technical Specifications | |

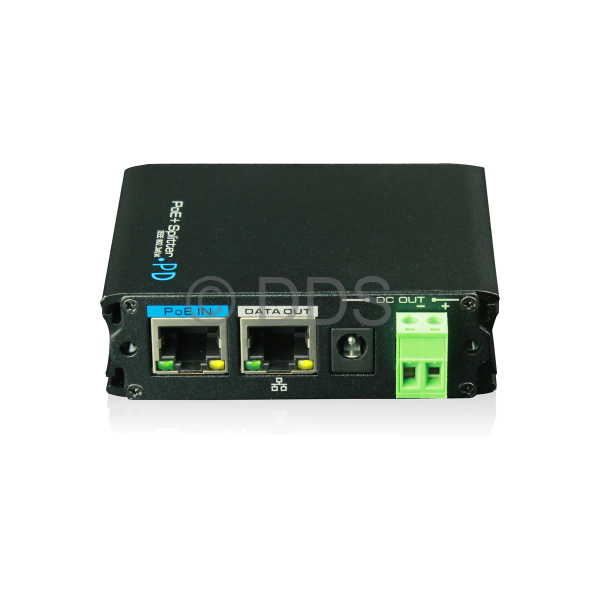

| Ethernet Ports | PoE In x1 Data Out x1 |
| Power Out | Green terminal x1 DC Connector x1 |
| PoE Standard | IEEE803.2af/at |
| Power Supply | Support Mode A (End-Span) and Mode B (Mid-Span) |
| Power Requirement | PoE36V~60V 30W(max) |
| Power Consumption | ≤25.4W |

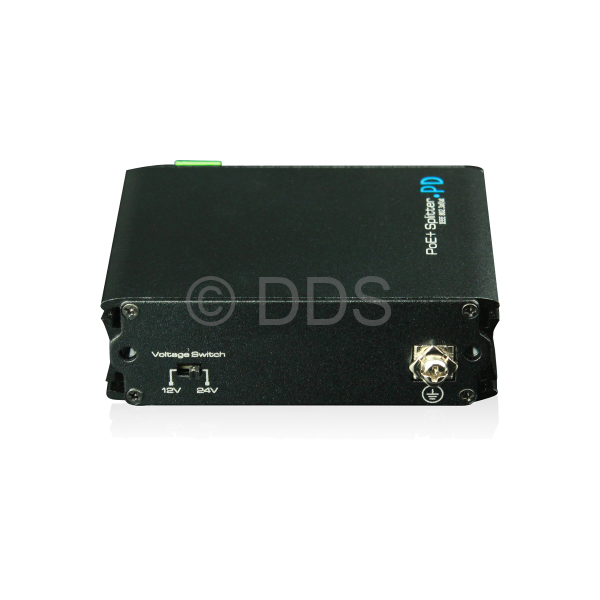

| Output power | DC 12V/24V (by DIP switch control) |
| Transmission Distance | 100m |
| Transmission Speed | 10/100/1000Mbps |
| Indicators | Input PoE Power x1 Output DC Power x1 |
| Surge protection | Differential mode: 3kV Common mode: 6kV |
| ESD protection | 3 level, Standard: IEC61000-4-2 |
| Operating temperature | -40°C to +75°C |
| Dimensions | 82mm х 63mm x 25mm |
| Weight | 180g |
