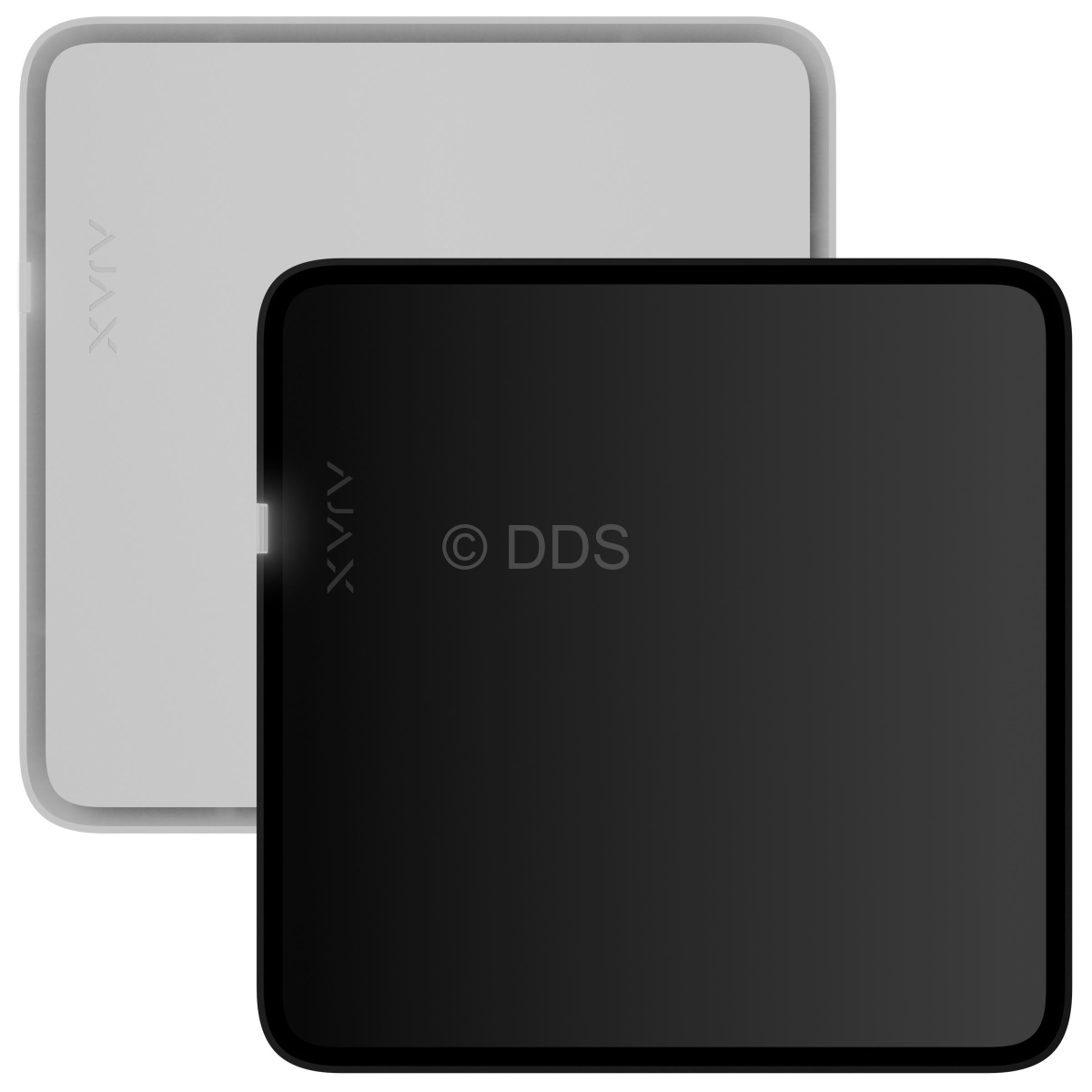

Ajax NVR HAC (8ch)
Save
100%
100%
Keep all recordings from Ajax video devices and third-party cameras in view with Ajax network video recorders. NVR HAC series delivers an even more flexible video monitoring experience — from the comfort of the desk or on the go. With a HDMI output, NVRs can display live and archived footage directly on a connected display, even with no internet connection on site. Built with proprietary technologies and industry best practices, these devices ensure a smooth and secure video management experience at all times.
| Technical Specifications | |
| Classification | Network video recorder |
| Installation method | Indoors |
| Compatibility | Operates with Hub, Hub Plus, Hub 2, Hub 2 Plus, and Hub Hybrid |
| Maximum number of cameras | 8 |
| Maximum resolution | Up to 8MP (4K) at 25/30fps |
| 3rd party support | ONVIF (Profile S/T) RTSP |
| Storage | 1x 3.5" HDD, up to 16TB |
| Supported compression | H.264/H.265 |
| AI object detection | Only with Ajax cameras |
| POE | N/A |
| Video output | HDMI (up to 1920 x 1080) |
| USB ports | 2x USB 2.0 (Type A) |
| Bandwidth | Incoming: 80Mbps Outgoing: 40Mbps |
| Communication channels | Ethernet (10/100Mbps) Bluetooth (BLE, only to set up Ethernet connection) |
| Operating temperature | 0°C to +40°C |
| Operating humidity | Up to 75% |
| Weight | 782g |
| Dimensions | 212mm x 212mm x 64mm |
