Ajax Alarm Control Hub

Save 100%
Ajax Alarm Control Hub
Call us for a price
AJX-HUB(7561)

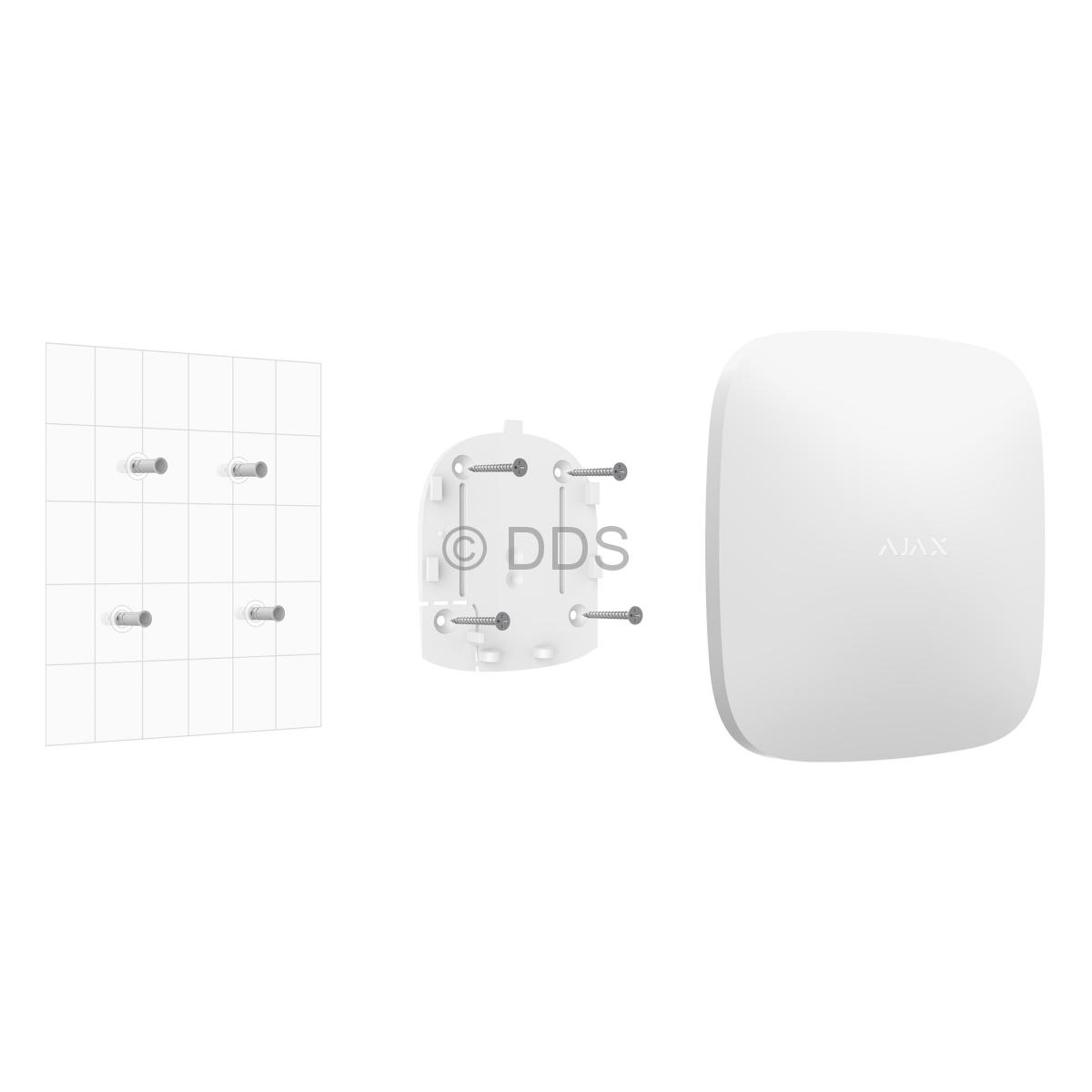

The Hub intelligent control panel is a key element of the Ajax security system. The device monitors operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station. The device collects information on detector operation in an encrypted format, analyzes the data, and in case of alarm, notifies the system owner and the Central Monitoring Station in just milliseconds. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount.

- Connect up to 100 devices to the hub
- Up to 50 users per hub
- Connects using ethernet or Micro-SIM
- Grade II rated
- Checks in with devices every 36 seconds (other systems tend to check in every 20 minutes)
- Built-in battery backup (2 А⋅h) for up to 15 hours of offline operation when Ethernet is switched off
- Compatible with iOS and Android



Technical Specifications
Classification The radio channel central unit with GSM and Ethernet modules
Maximum number of devices connected to the hub 100
Maximum number of cameras connected to the hub 10
Maximum number of users 50
Maximum number of rooms 50
Maximum number of groups 9
Mobile apps iOS 9.1 and later
Android 4.1 and later
Communication channels Ethernet, GSM (850/900/1800/1900 MHz)
Alarm signal Delivery time: 0.15 s
Types of notifications: SMS message, call, push
Communication with Central Monitoring Station Contact ID, SIA
Power supply

Mains supply: 110−240 V
Battery backup: Li-Ion 2 А⋅h
Up to 15 hours of offline operation when Ethernet is switched off

SIM card support Micro SIM 2G
Operating temperature range +5°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Video surveillance Up to 10 cameras or DVRs
Dimensions 163mm x 163mm x 36mm
Weight 350g
Certification Grade 2 (EN 50131), CE
