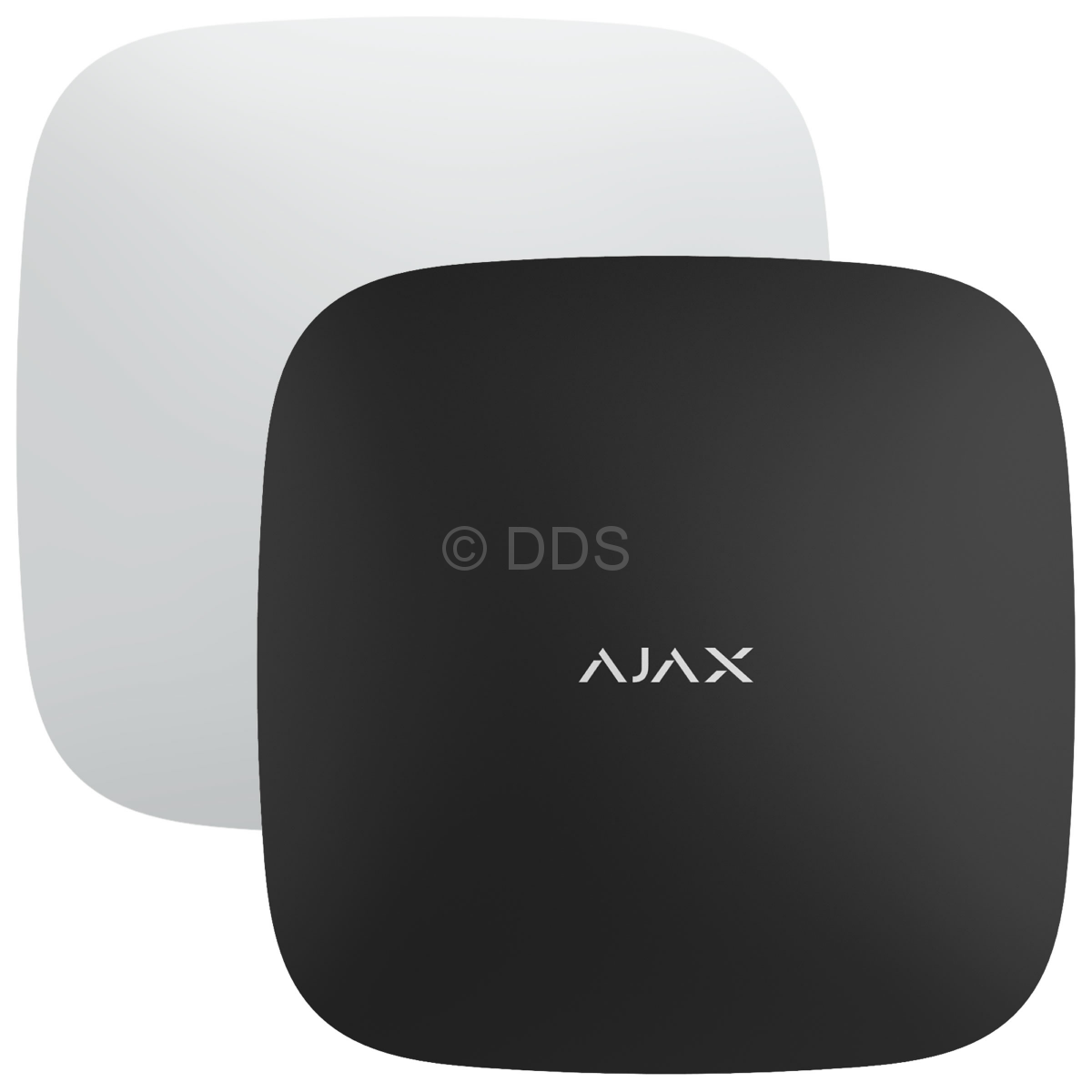

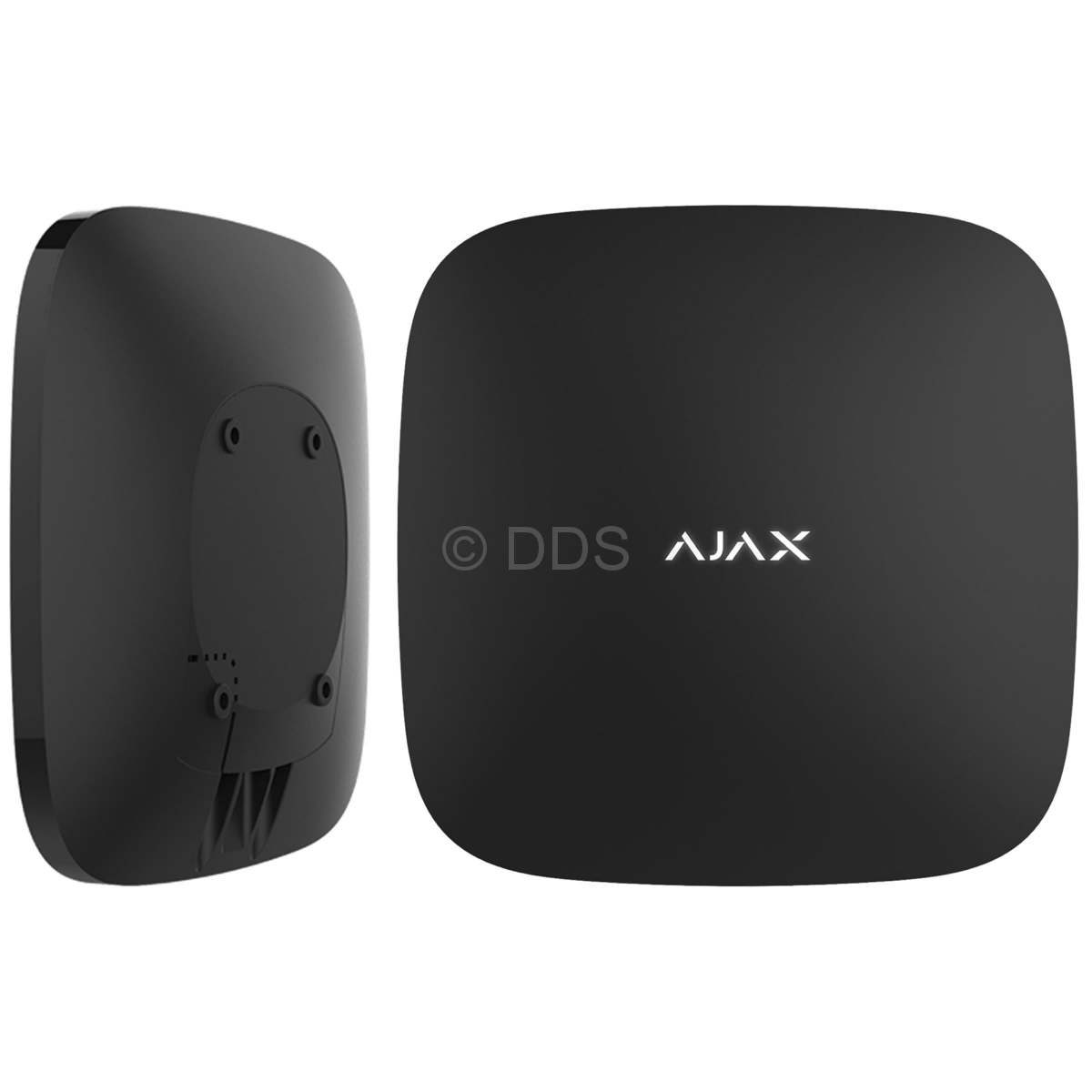

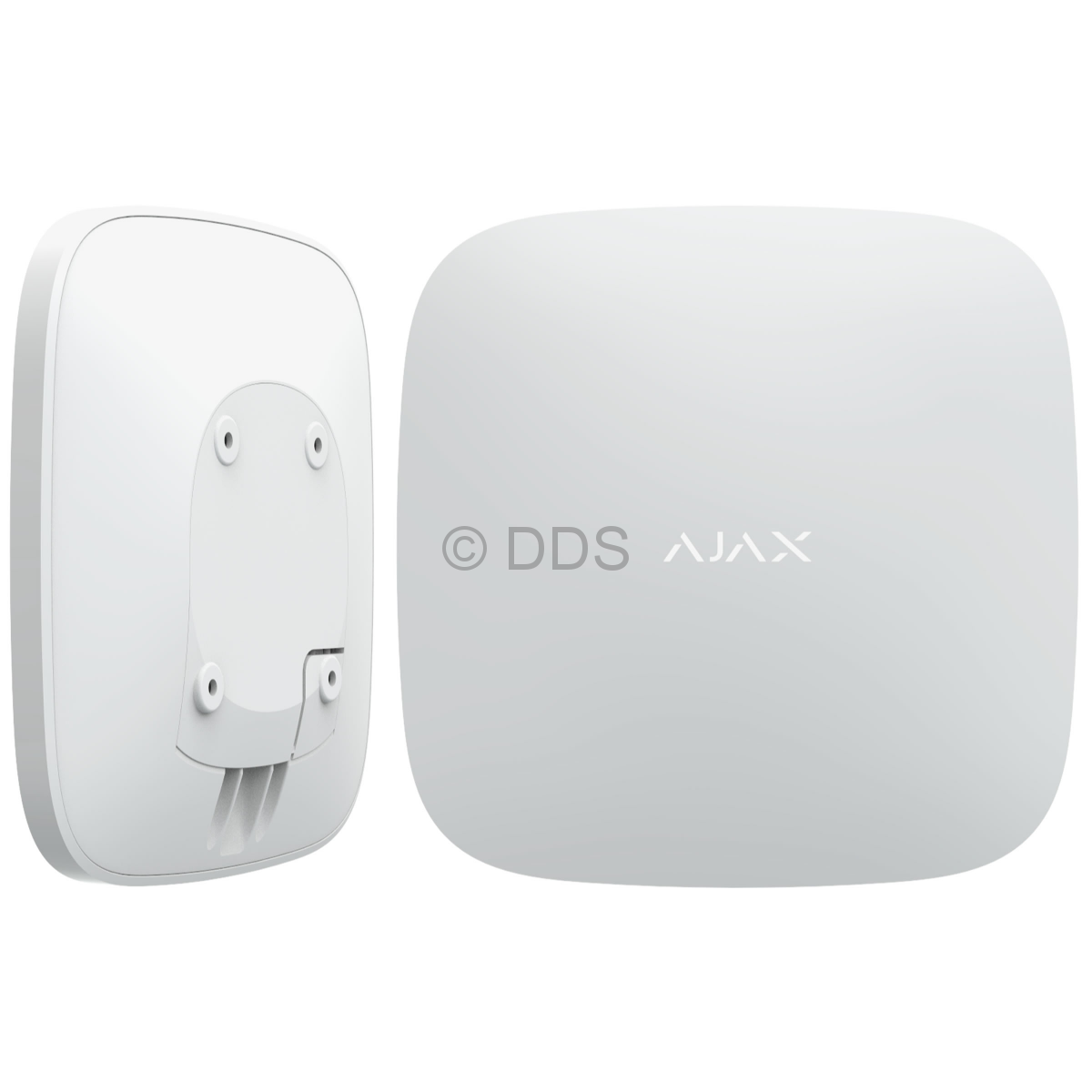

Ajax Alarm Control Hub 2 Plus

Call us for a price

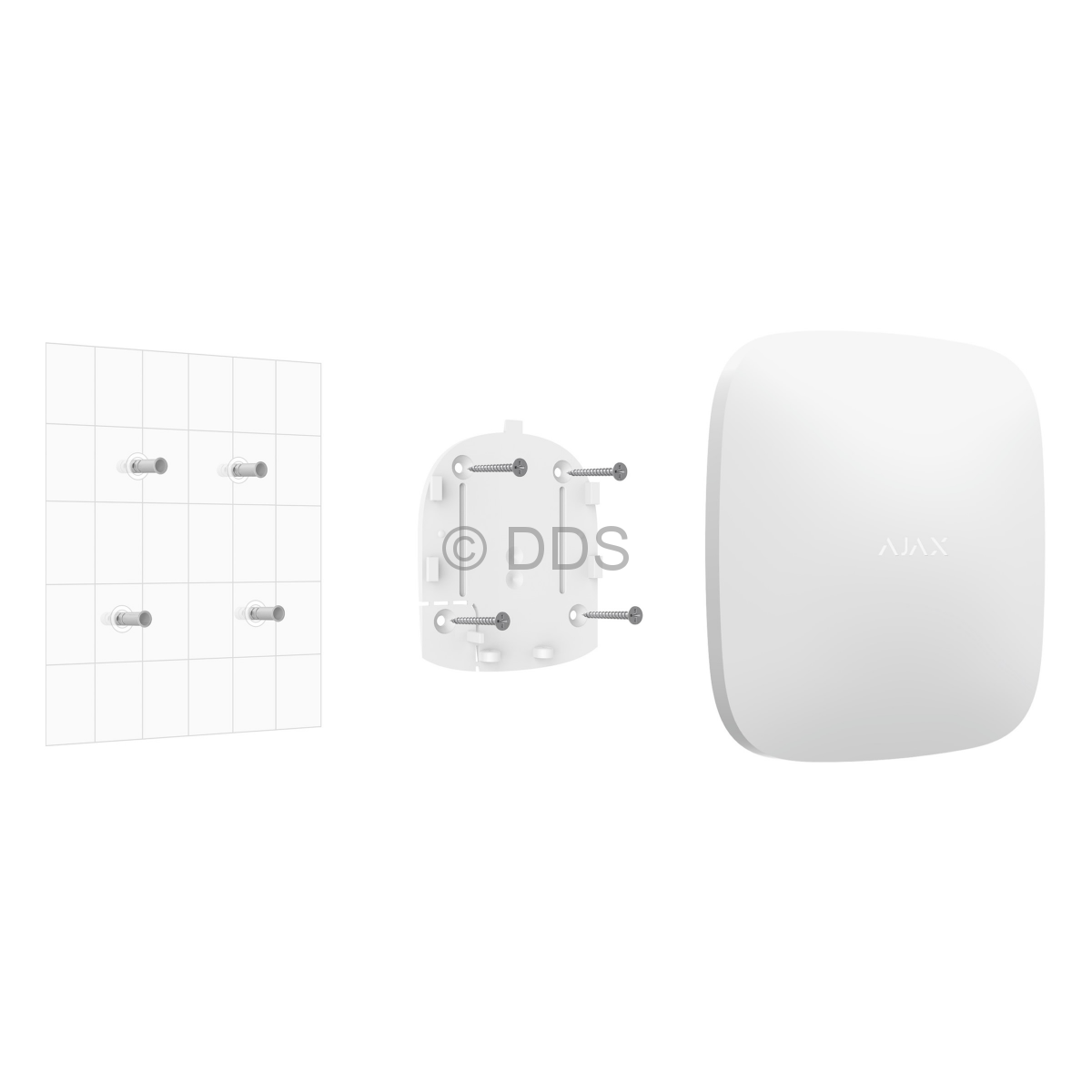

The Hub 2 Plus intelligent control panel is a key element of the Ajax security system. The device monitors operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station. The device collects information on detector operation in an encrypted format, analyzes the data, and in case of alarm, notifies the system owner and the Central Monitoring Station in just milliseconds. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount.

- Connect up to 200 devices to the hub
- Up to 200 users per hub
- Supports the MotionCam
- Connects using Ethernet, Wifi or 2 Micro-SIM's
- Checks in with devices every 36 seconds (other systems tend to check in every 20 minutes)
- Built-in battery backup (2 А⋅h) for up to 15 hours of offline operation when power is switched off
- Compatible with iOS and Android


Technical Specifications
Classification Security system control panel with four in-built channels for external communication and support of detectors with photo cameras
Maximum number of devices connected to the hub 200
Maximum number of cameras/DVRs connected to the hub 100
Maximum number of users 200
Maximum number of rooms 50
Maximum number of groups 25
Number of REX connected 5
Scenarios supported 64
Mobile apps iOS 9.1 and later
Android 4.1 and later
Communication channels 2G (GSM900/DCS1800 (B3/B8))
3G (WCDMA 850/900/2100 (B1/B5/B8))
LTE (FDD B1/B3/B5/B7/B8/B20)
Wi-Fi (802.11 b/g/n)
Alarm signal Delivery time: 0.15 s
Types of notifications: SMS message, call, push-notification
Communication with Central Monitoring Station CMS connectivity: Contact ID, SIA •Photo verification integrated in Manitou, ABsistemDC(NG) and SBN
Power supply Mains supply: 110−240 V
Battery backup: Li-Ion 3 А⋅h
Up to 15 hours of autonomous work when Ethernet or Wi-Fi channels are disabled
Energy consumption from mains — 10 W
SIM card support 2 x Micro-SIM 2G/3G/4G
Operating temperature range -10°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Jeweller Radio Technology Communication range with detectors — up to 2,000 m in an open space
Two-way communication between devices
Operating frequencies — 868,0−868,6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping
Dimensions 163mm x 163mm x 36mm
Weight 351g
Certifications Grade 2 (EN 50131), PD6662:2017, CE
