Vortec Mini IP Dome Camera (Pro)
Save
62%
62%
Professional Range - Vortec 4MP mini Dome camera with an impressive 4 megapixel HD recording resolution. Suitable for ceiling mounting, it is a relatively small camera so it is not too intrusive within a home or working environment. Includes built-in POE.
- Vortec 4MP Camera
- Image Resolution 2688 x 1520 / 2560 x 1440 / 1920*1080 pixels
- Streams 2688 x 1520 /2560 x 1440/2304 x 1296@15fps, 1920 x 1080@30fps
- Advanced H264 compression, Dual Stream
- Smart IR, IR Range 10m
- Fixed 2.8mm Lens, 4MP
- ICR, Defog, DiS, dWDR, HLC
- ONVIF compatible
- Built-in PoE
- IP65 rated
Model:
SIP4-349R
Camera
Image Sensor:
Sony CMOS (1/3”)
Resolution:
4MP
Effective Pixels (H x V):
2688 x 1520
TV System:
PAL / NTSC
Shutter Speed:
1/5-1/20000
Signal-to-noise Ratio:
≥50dB
Iris:
Electronic
Back Light Compensation:
Auto
Wide Dynamic Range:
dWDR
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
75°
Up-the-Coax Control:
N/A
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.05Lux, IR on 0Lux
Infrared LEDs:
16µ x 1pc
IR Range:
8-10m
IR Status:
Below 10 Lux by CDS
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
TCP/IP,ICMP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF:
Supports ONVIF 2.4
POE:
Yes
Main Stream:
2560x1440@15fps
Sub Stream:
720x480@30fps
General
Power:
12V DC (+/- 10%), 650mA
Housing:
Metal
Power Consumption:
2.5W (IR off), 5W (IR on)
Operating Temperature:
-20℃ ~ +60℃
Operating Humidity:
0% - 90% RH
Ingress Protection:
IP65
Approvals:
CE / FCC
Weight:
400g

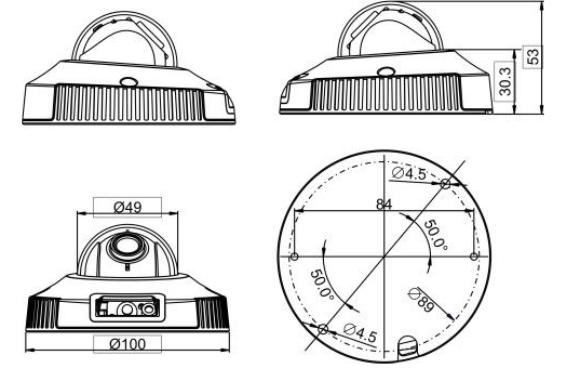

All dimensions are in millimetres (mm)
Click the link below to download a PDF copy of the product specification for the SIP4-349R 4MP Camera
