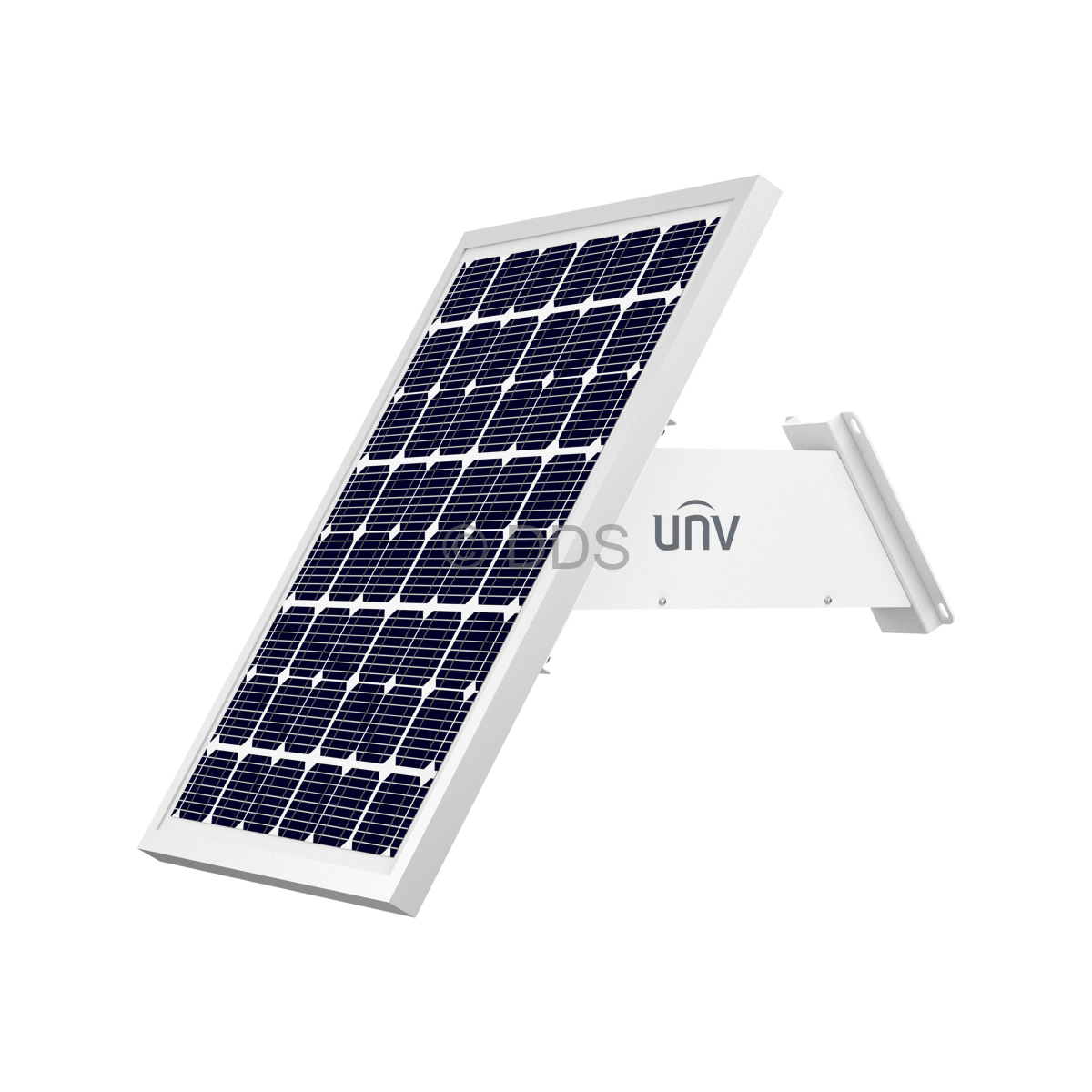

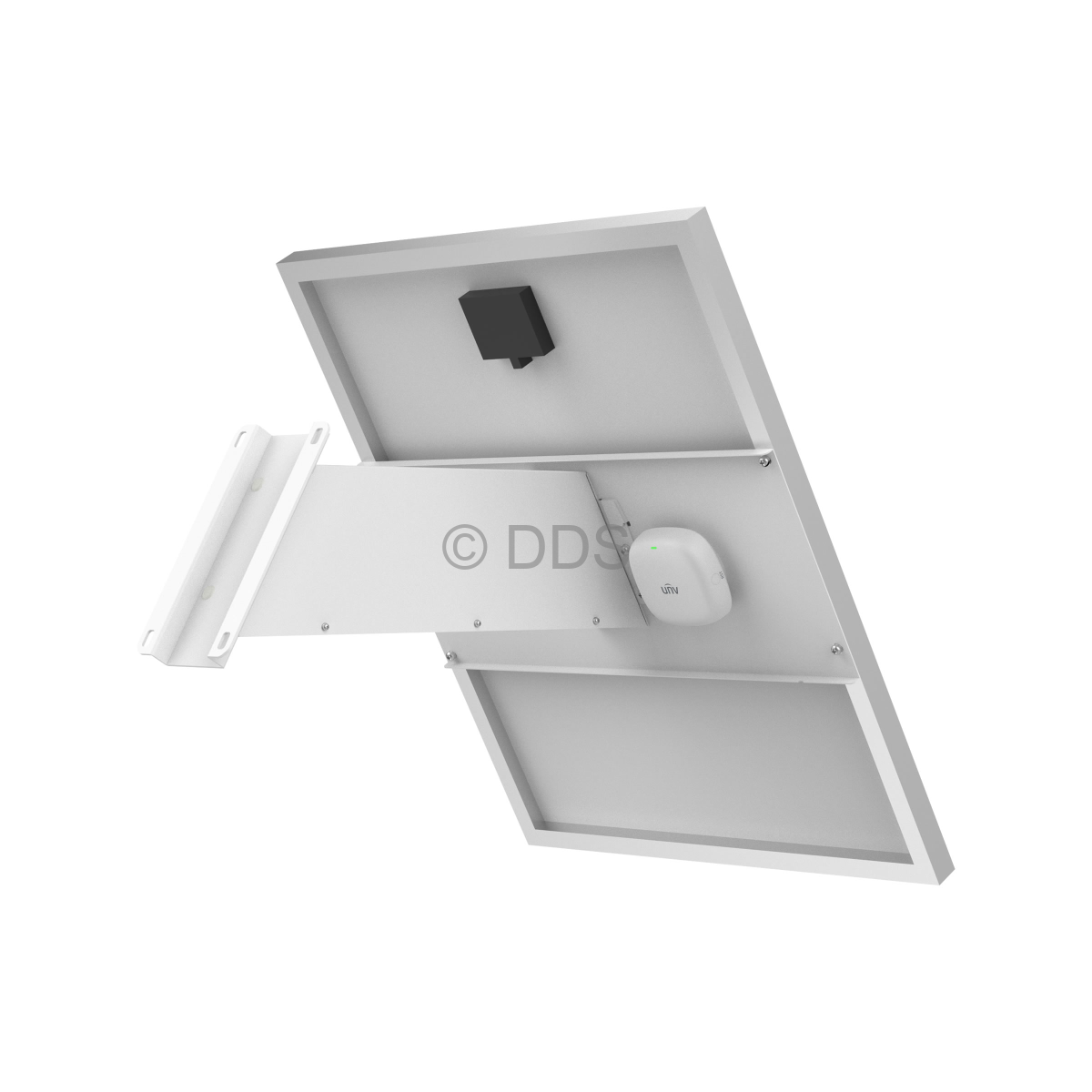

Uniview Solar Panel System (320Wh/60W)
Save
100%
100%
The Uniview SLR-B320P60 is a robust and efficient 320Wh/60W solar power system designed to provide reliable off-grid energy solutions for various outdoor applications. Its modular design facilitates easy battery assembly and solar panel installation, making it ideal for remote surveillance setups, environmental monitoring stations, and other off-grid scenarios.
- Modular Design: Simplifies battery assembly and solar panel installation, enhancing flexibility and scalability.
- High-Safety Lithium Battery: Incorporates a high-reliability, long-life lithium battery cell suitable for diverse application scenarios.
- Efficient Solar Controller: Features a self-developed high-efficiency solar controller that enables faster charging.
- Comprehensive Protection Functions: Includes protections against high and low battery temperatures, overcharge, and undervoltage, ensuring system safety.
- Durable Metal Casing: Windproof and rainproof metal casing capable of withstanding harsh outdoor environments.
- Built-in Heating Module: Activates in low-temperature environments to protect battery life and ensure safe charging.
| Specifications | |
| Solar Panel | |
| Peak power | 60W |
| Operating voltage | 4.5V |
| Operating current | 13.33A |
| Open circuit voltage | 5.4V |
| Short circuit voltage | 14.66V |
| Cell conversion efficiency | ≥ 22% |
| Output interface type | 4-pin quick connector (for battery switch) |
| Dimensions | 765mm x 395mm x 25mm |
| Lithium Battery | |
| Battery capacity | 100Ah |
| Rated energy | 320Wh |
| Limited charge voltage | 7V |
| Output voltage | 9V to 12.6V |
| Maximum output current | 2A |
| Input interface type | 4-pin quick connector (for battery switch) |
| Output interface type | DC 12V circular connector |
| RS-485 | Support |
| Protection | High/low temperature protection Overcharge protection Undervoltage protection |
| Dimensions | 419.2mm x 118mm x 336.5mm |
| Solar Panel | |
| Open circuit voltage | 12V |
| Typical power consumption | 0.84W |
| Maximum power consumption | 2W |
| Input interface type | DC 12V circular connector |
| RS-485 | Support |
| Reset button | Support |
| Indicator | Flashing green: Normal Solid red: Network error |
| Ingress protection | IPx5 |
| Accessory | One to two cable |
| Dimensions | 90mm x 90mm x 38.3mm |
| General | |
| Suitable pole diameter | 67mm to 110mm |
| Operating temperature | -20°C to +45°C (charge) -20°C to +55°C (discharge) |
| Weight | Battery: 4.61kg Solar Panel: 4.42kg Module: 0.15kg |
