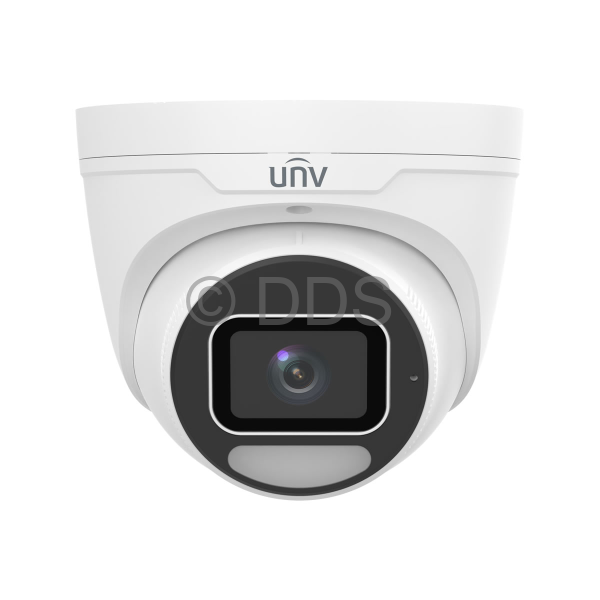

OwlView Plus Turret Camera (8MP, AI, WhiteLight, Mic)

Call us for a price

IPC3638SE-ADF28K-WP-I1

Part of the UNV Owlview Plus range, this Uniview turret IP camera has the latest Wise-ISP algorithm, allowing for 24/7 full colour with better performance than previous full-colour models, even without using the built-in white light. It combines the large 1/1.2" sensor with a F1.0 aperture, and using Uniview's self-developed large model engine allows the image to be brighter yet more true to life, with advanced smear control and dynamic noise reduction. It also boasts an impressive 8 megapixel UHD recording resolution and a 2.8mm fixed-focal lens. Supporting Ultra265 compression, and up to 30m of White Light.  Alongside this, it also features a built-in microphone for recording audio.

- Vandal Resistant, IK10 rated
- Resolution: 8MP (3840 x 2160), POE
- Fixed 2.8mm Lens, Viewing Angle 105° (H)
- Up to 30m White Light Range
- Built-in Microphone
- Day/Night, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Mode
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Face Detection (see Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- IP67 Rated
- 4kV Surge Protection

Camera

Image Sensor:
ColourHunter CMOS (1/1.2")
Aperture:
F1.0
Resolution:
8MP (4K)
Effective Pixels (H x V):
3840 x 2160
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
130dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
105.0°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 512GB

DORI

Detect:
43.4m
Observe:
17.4m
Recognise:
8.7m
Identify:
6.3m

Day/Night

Minimum Illumination:
Colour 0.0003Lux
White Light Range:
25-30m

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
3840x2160@30fps
Sub Stream:
1280x720@30fps

General

Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 6W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
690g

Interface

Built-in Microphone:
Yes
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)

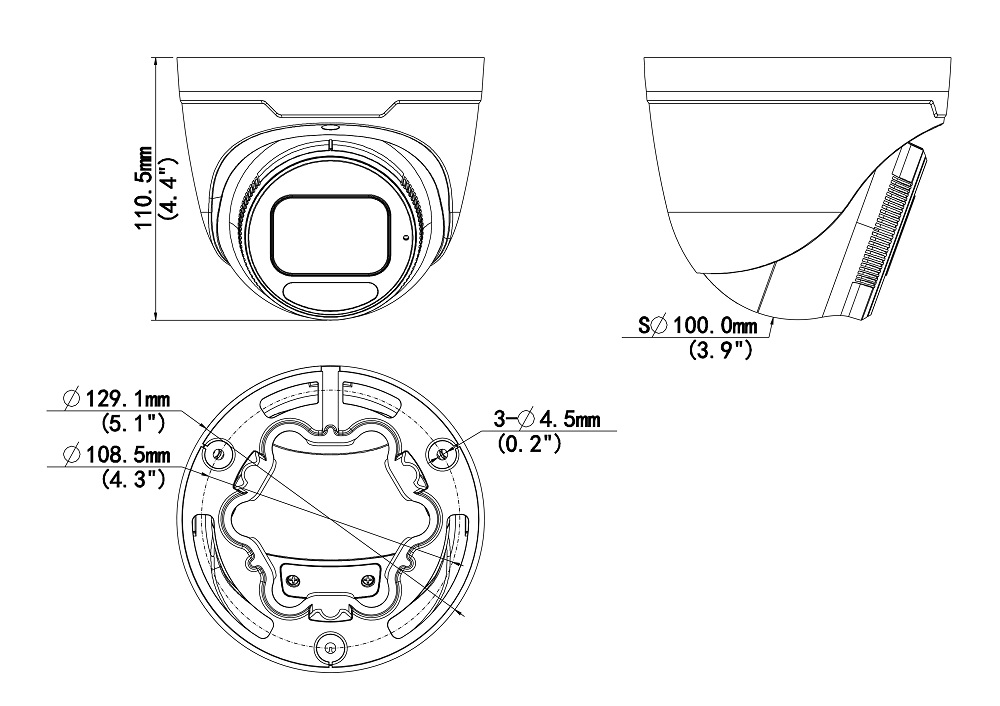

All dimensions are in millimetres (mm)

Dimensions of IPC3638SE-ADF28K-WP-I1

TR-JB03-H-IN

- Junction box for IPC363x Series and IPC36xxSS
- Screw hole allows this base to be used with pendant mounts
- 126mm x 126mm x 36mm
- Weight: 240g

Call us for a price £13.00 You save: £13.00
TR-JB07/WM03-F-IN

- Wall mount for IPC363x and IPC36xxS/E cameras
- 233mm x 125mm x 125mm
- Weight: 1kg

Call us for a price £25.00 You save: £25.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

Different ways of mounting this camera:



This camera has the following special features:

ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



ASM (Auto Scene Match)

ASM is a feature which allows a camera to analyse the scene it's looking at, and adjust its image settings according to give the best possible picture. This feature requires WDR to be enabled.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Crowd Density Monitoring - Detect the number of people in a pre-defined virtual region
  • Enter Area - Entering into a pre-defined virtual region
  • Face Detection - Detect a human face
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • People Flow Counting - Count the number of people passing over a virtual line, in a specified direction
  • Tamper Identification - Detect when the camera has been physically tampered with
