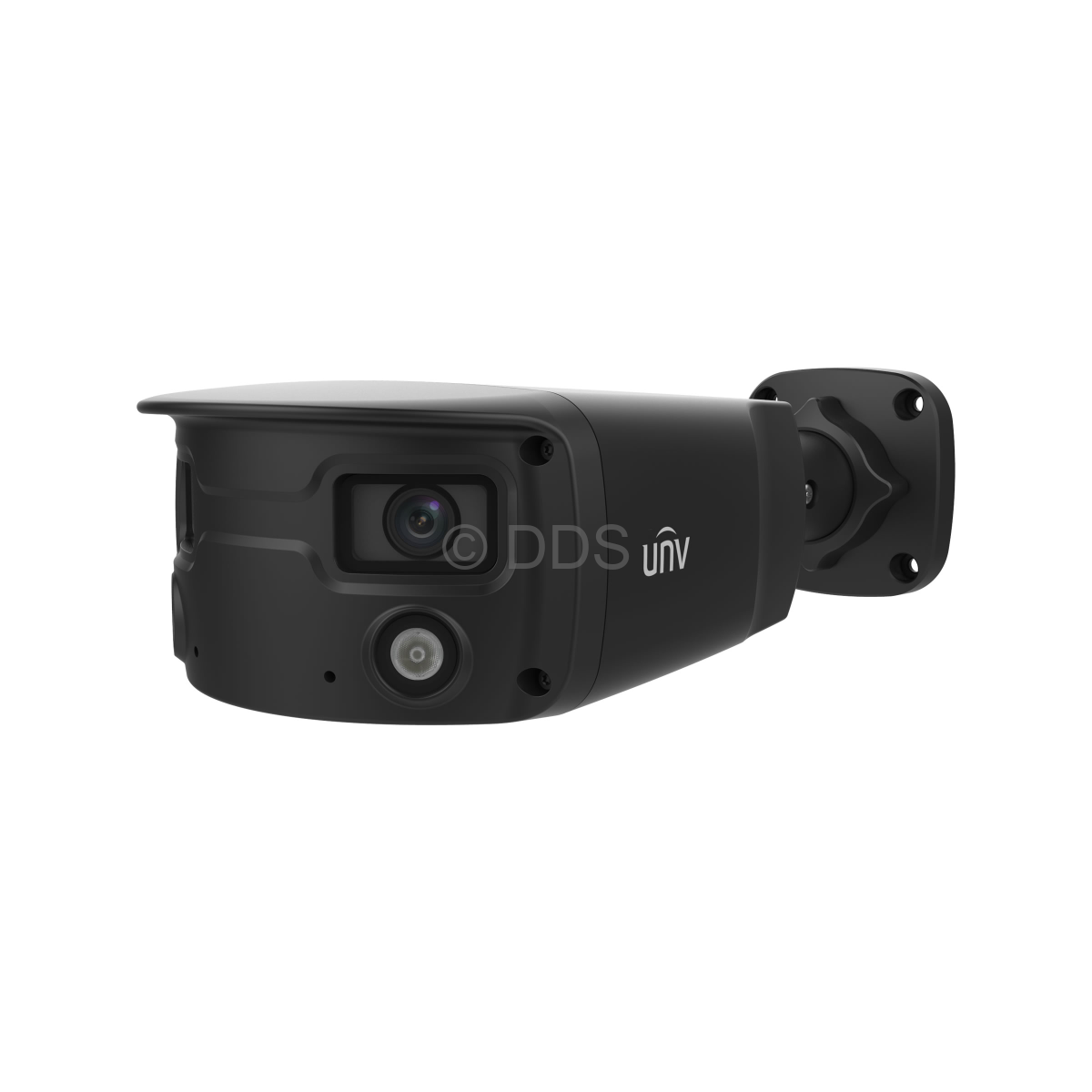

Black Dual Lens ColourHunter+ Camera (4MP, Two-Way Audio, IK10)

Call us for a price

IPC2K24SE-ADF40KMC-WL-I0(B)

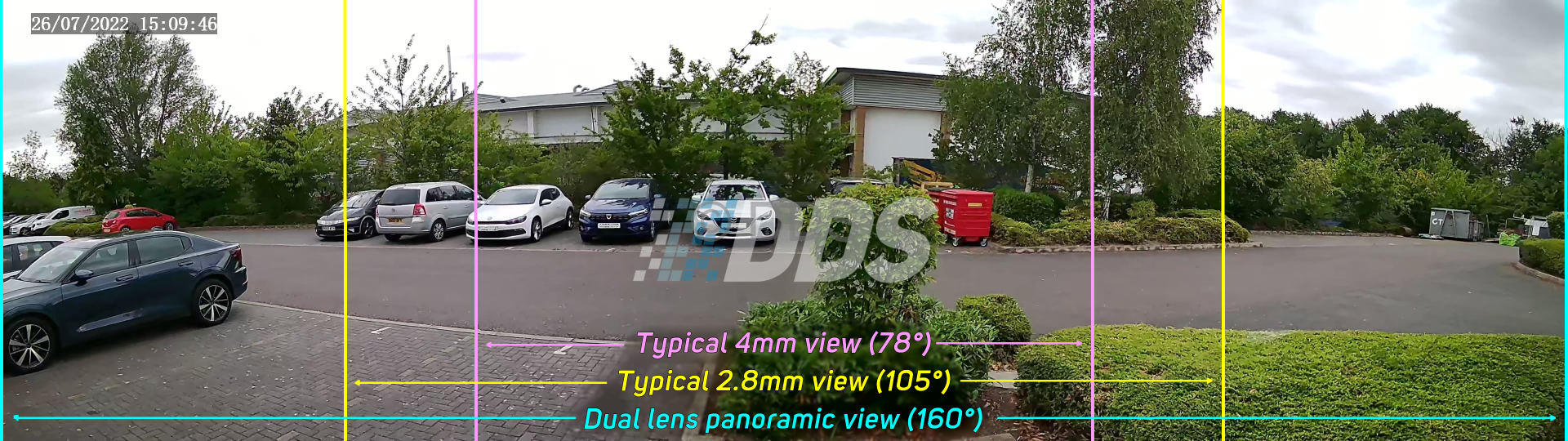

Part of the Uniview Omniview series, this IP camera has dual 2MP cameras each with a 4mm fixed lens. Both images are stitched together to give an ultra-wide 160° field of view. This camera has the ColourHunter chipset, allowing for full colour at night. Supporting Ultra265 compression and 30m of White-Light range; this camera also features dual microphones and a speaker for two-way audio.

- Vandal Resistant, IK10 rated
- Resolution 4MP (3840 x 1080), POE
- Fixed 4mm Lens, Viewing Angle 160° ±10° (H)
- Up To 30m White Light Range
- Full Colour, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- MicroSD Card Slot (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated
- 4kV Surge Protection

Camera

Image Sensor:
ColourHunter CMOS (1/2.9")
Resolution:
4MP
Effective Pixels (H x V):
3840 x 1080
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
dWDR
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 4mm Lens
Field of View:
160° ±10°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

DORI

Detect:
64.3m
Observe:
25.7m
Recognise:
12.9m
Identify:
6.4m

Day/Night

Minimum Illumination:
Colour 0.0005Lux
White Light Range:
25-30m

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
3840x1080@25fps (Human Body Detection off) | 3840x1080@20fps (Human Body Detection on)
Sub Stream:
1920x540@25fps

General

Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 6.5W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
950g

Interface

Built-in Microphone:
Yes (2x)
Built-in Speaker:
Yes
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)

All dimensions are in millimetres (mm)

Dimensions of IPC2K24SE-ADF40KMC-WL-I0

TR-JB06-A-IN

- Junction box for the IPC23xx cameras with square base
- Extra back outlet
- 104mm x 104mm x 55.5mm
- Weight: 420g

Call us for a price £13.00 You save: £13.00
TR-JB07-D-IN(B)

- Outdoor or indoor cable junction box for IPC2XX and IPC74X series (Extra back outlet)
- 125mm x 125mm x 55mm
- Weight: 750g

Call us for a price £17.00 You save: £17.00
TR-UP06-B-IN

- Outdoor, pole or rail installation for the IPC22x, IPC24x and IPC212x (square base) cameras
- 99mm x 90mm x 38mm
- Weight 200g

Call us for a price £12.00 You save: £12.00
TR-UP06-C-IN(B)

- External pole or rail mount for the IPC22xx and IPC232x series, and can be used with the TR-JB07-D-IN or TR-JB06-A-IN
- 127mm x 136mm x 62.5mm
- Weight: 340g

Call us for a price £17.00 You save: £17.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

Different ways of mounting this camera:

This camera has the following special features:

ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5 kg mass dropped from 400 mm above the impacted surface.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Motion Detection - Movement within a pre-defined virtual region
  • Tamper Alarm - Detect when the camera has been physically tampered with
