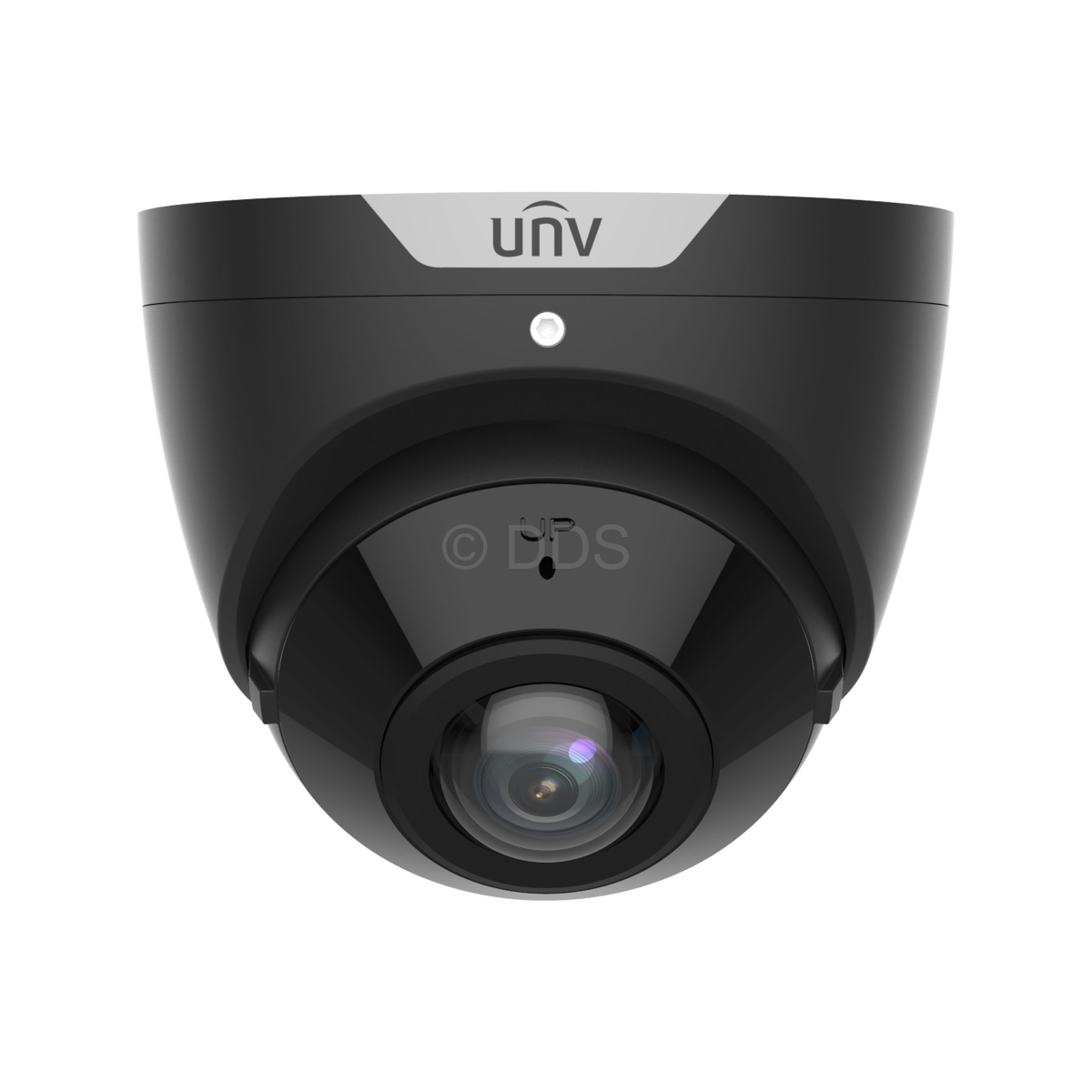

Black 180° Turret Camera (5MP, AI, Mic, IK10)

Call us for a price

IPC3605SB-ADF16KM-I0(B)

Part of the Uniview Omniview series, this vandal-resistant turret IP camera has an impressive 5 megapixel HD resolution with a 1.68mm fixed-focal lens giving an ultra-wide 180° view. Supporting Ultra265 compression, with up to 20m of IR range. Alongside this, it also features a built-in microphone and an IK10 rating for vandal resistance. In addition, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.

- Vandal Resistant, IK10 rated
- Resolution 5MP (2880 x 1620), POE
- Fixed 1.68mm Lens, Viewing Angle 180° (H)
- Smart IR, Up To 20m of Infrared
- Built-in Microphone
- Onboard Dewarping (Up to 9 Levels)
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated
- 4kV Surge Protection

Camera

Image Sensor:
CMOS (1/2.7")
Resolution:
5MP
Effective Pixels (H x V):
2880 x 1620
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 1.68mm Lens
Field of View:
180°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

DORI

Detect:
37.8m
Observe:
15.1m
Recognise:
7.6m
Identify:
3.8m

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.01Lux, 0Lux with IR on
IR Range:
15-20m

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2880x1620@30fps
Sub Stream:
720x576@30fps

General

Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 5.5W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
480g

Interface

Built-in Microphone:
Yes

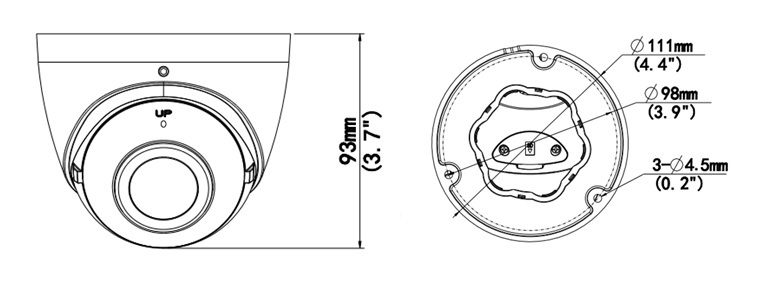

All dimensions are in millimetres (mm)

TR-JB03-G-IN(B)

- Junction box for IPC32x, IPC361x and IPC31x cameras
- 109mm x 109mm x 39mm
- Weight: 200g

Call us for a price £13.00 You save: £13.00
TR-JB07/WM03-G-IN(B)

- Wall mount for IPC361xL, IPC32x and IPC314x cameras
- 229mm x 127mm x 127mm
- Weight: 1kg

Call us for a price £25.00 You save: £25.00
TR-UM06-E-IN

- Mount to install a dome camera at an incline internally, suitable for IPC32x cameras
- 109.6mm x 24.2mm

Call us for a price £6.00 You save: £6.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

Different ways of mounting this camera:



This camera has the following special features:

ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Enter Area - Entering into a pre-defined virtual region
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • People Counting - Count the number of people crossing a line or in an area
  • Tamper Identification - Detect when the camera has been physically tampered with
