4K Mini Camera (8MP, 4, Smart, WDR)

Save 100%
True WDR 4K resolution Supports VCA UNV Mini IP Camera (8MP, WDR, Smart)
Call us for a price
IPC2128SR3-DPF40

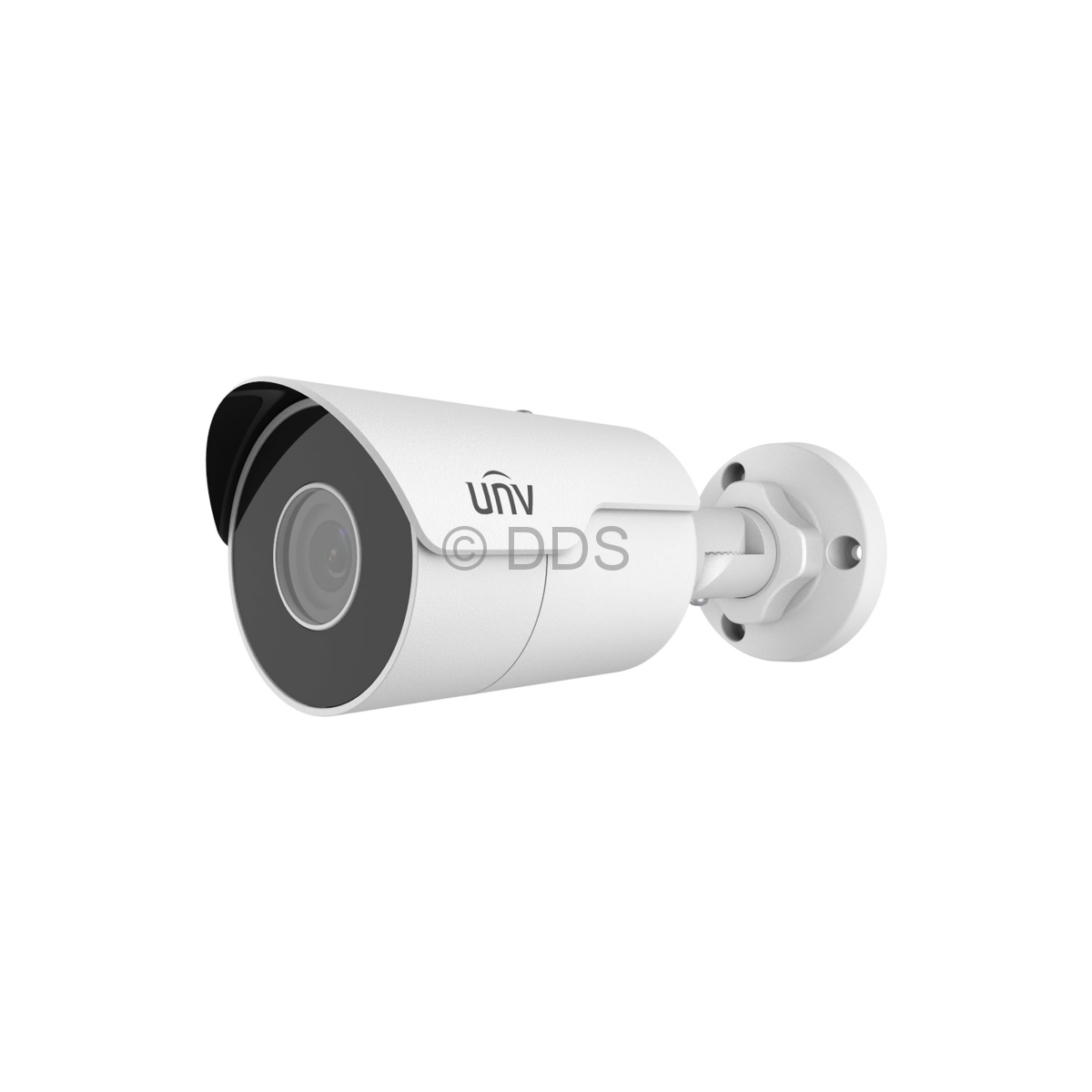

Part of the UNV professional range, this mini bullet IP camera boasting an impressive 8 megapixel HD recording resolution and a 4mm fixed-focal lens. Supporting up to Ultra265 compression and 30m of IR range.

- Resolution 8MP (3840 x 2160), POE
- Fixed 4mm Lens, Viewing Angle 91.6°(H)
- Smart IR, Up To 30m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- VCA - Line Crossing, Face Detection (see Special Features)
- Supports H.264, H.265 or Ultra H.265
- ONVIF Compliance (Profile S)
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- Metal Housing, IP67 Rated

Camera

Image Sensor:
Aptina CMOS (1/2.5")
Resolution:
8MP
Effective Pixels (H x V):
3840 x 2160
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/6~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 4mm Lens
Field of View:
78.9°
Scanning:
Progressive Scan

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.005Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile S)
POE:
Yes
Main Stream:
3840x2160@15fps
Sub Stream:
1920x1080@30fps

General

Power:
12V DC (+/- 25%)
Housing:
Metal
Power Consumption:
Max 6.4W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
10% - 90% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
450g

All dimensions are in millimetres (mm)

TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price
TR-JB05-B-IN

- Junction box for mini bullet dome camera (Extra back outlet)
- 93mm x 93mm x 43mm
- Weight: 200g

Call us for a price
TR-UP06-B-IN

- Outdoor, pole or rail installation for bullet camera of IPC22X and IPC24X series
- 99mm x 90mm x 38mm
- Weight 200g

Call us for a price

The cameras have the following special features:

VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Recognition - Face and audio detection
  • Tamper Identification - Detect when the camera has been phyiscally tampered with
  • Statistical Analysis - People counting


Tip: Watch in full screen mode
