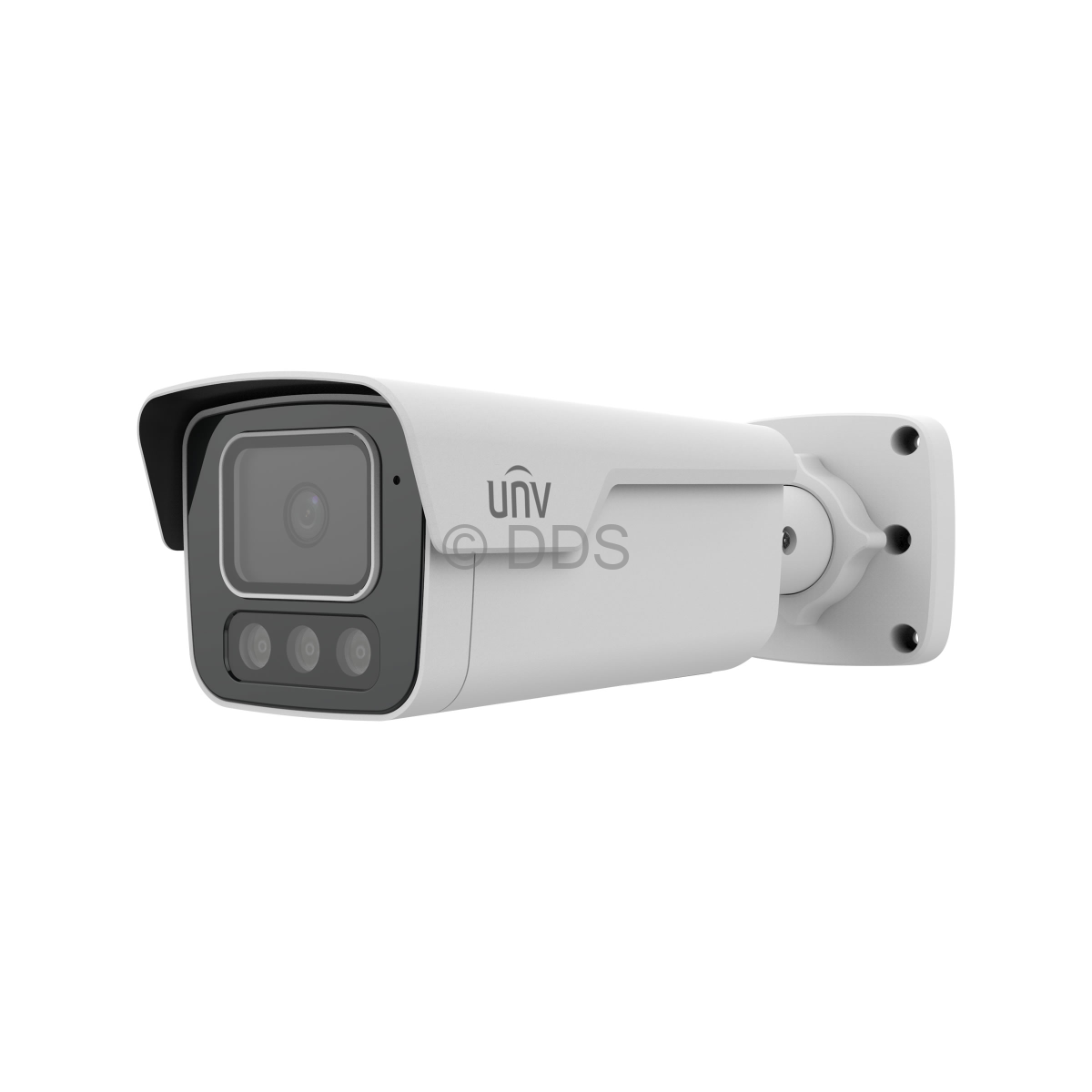

4K Tri-Guard 2.0 Bullet Camera (8MP, AI, WDR)

Call us for a price

IPC2B18SS-ADF40KMC-I1

Part of the Uniview Tri-Guard 2.0 series, this bullet IP camera has an impressive 8 megapixel HD resolution with a 4mm fixed-focal lens. Supporting Ultra265 compression, up to 40m of IR range and up to 40m of White Light; as well as red and blue warning lights. Alongside this, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.

- Active Deterrence
- Up to 40m White Light Range
- Play Pre-Recorded Messages
- Two-Way Audio (Built-in Microphone and Speaker)
- Resolution 8MP (3840 x 2160), POE
- Fixed 4mm Lens, Viewing Angle 92° (H)
- Smart IR, Up To 40m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67

Camera

Image Sensor:
ColourHunter CMOS (1/2.8")
Resolution:
8MP (4K)
Effective Pixels (H x V):
3840 x 2160
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
130dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 4mm Lens
Field of View:
92°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

DORI

Detect:
124.1m
Observe:
49.7m
Recognise:
24.8m
Identify:
12.4m

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.001Lux, 0Lux with IR on
IR Range:
35-40m
IR Control:
CDS Auto
White Light Range:
35-40m

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
3840x2160@30fps
Sub Stream:
1280x720@30fps

General

Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 10W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
1.93kg

Interface

Audio I/O:
Audio in (x1), Audio out (x1)
Alarm I/O:
Alarm input (x2), Alarm output (x1)

All dimensions are in millimetres (mm)

Dimensions of IPC2B18SS-ADF40KMC-I1

TR-JB06-A-IN

- Junction box for the IPC23xx cameras with square base
- Extra back outlet
- 104mm x 104mm x 55.5mm
- Weight: 420g

Call us for a price £13.00 You save: £13.00
TR-JB07-D-IN

- Junction box for large bullet cameras (such as IPC222x and IPC23xx)
- 125mm x 125mm x 55mm
- Weight: 750g

Call us for a price £17.00 You save: £17.00
TR-UP06-C-IN

- External pole or rail mount for the IPC22xx and IPC232x series, and can be used with the TR-JB07-D-IN or TR-JB06-A-IN
- 127mm x 136mm x 62.5mm
- Weight: 340g

Call us for a price £17.00 You save: £17.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

This camera has the following special features:

Active Deterrence

This camera can prevent intruders using the built-in strobing siren, white light, speaker or a combination of all 3. Using human body detection, it will avoid any false triggers from other moving objects or animals.



ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



ASM (Auto Scene Match)

ASM is a feature which allows a camera to analyse the scene it's looking at, and adjust its image settings according to give the best possible picture. This feature requires WDR to be enabled.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Crowd Density Monitoring - Detect the number of people in a pre-defined virtual region
  • Enter Area - Entering into a pre-defined virtual region
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • People Flow Counting - Count the number of people passing over a virtual line, in a specified direction
  • Tamper Identification - Detect when the camera has been physically tampered with
