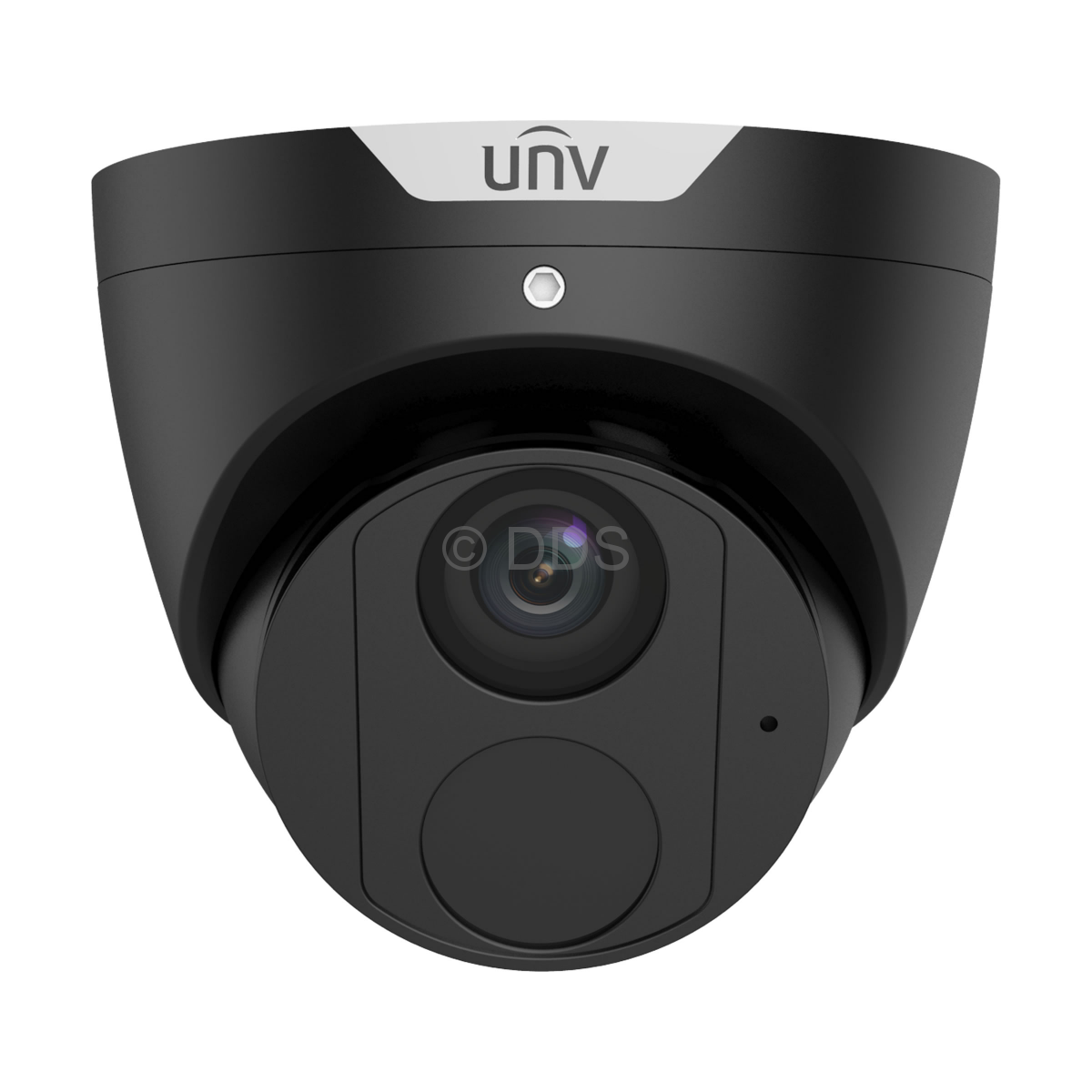

AI 4K Turret Camera (8MP, LightHunter, Mic, WDR)

Call us for a price

IPC3618SB-ADF28KM-I0(B)

Part of the Uniview LightHunter series, this turret IP camera has an impressive 8 megapixel UHD resolution with a 2.8mm fixed-focal lens. This camera has the LightHunter chipset, allowing for full colour at night.  Supporting up to Ultra265 compression and 30m of IR range; this camera also features a built-in microphone and MicroSD card slot. Alongside this, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.

- Resolution 4K/8MP (3840 x 2160), POE
- Fixed 2.8mm Lens, Viewing Angle 112.4° (H)
- Smart IR, Up To 30m IR Range
- Built-in Microphone
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile S)
- Temperature Range -30° C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated

Camera

Image Sensor:
LightHunter CMOS (1/2.7")
Resolution:
8MP (4K)
Effective Pixels (H x V):
3840 x 2160
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
112.4°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.01Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
3840x2160@20fps
Sub Stream:
720x576@30fps

General

Power:
12V DC (+/- 25%)
Housing:
Metal
Power Consumption:
Max 5W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
400g

Interface

Built-in Microphone:
Yes

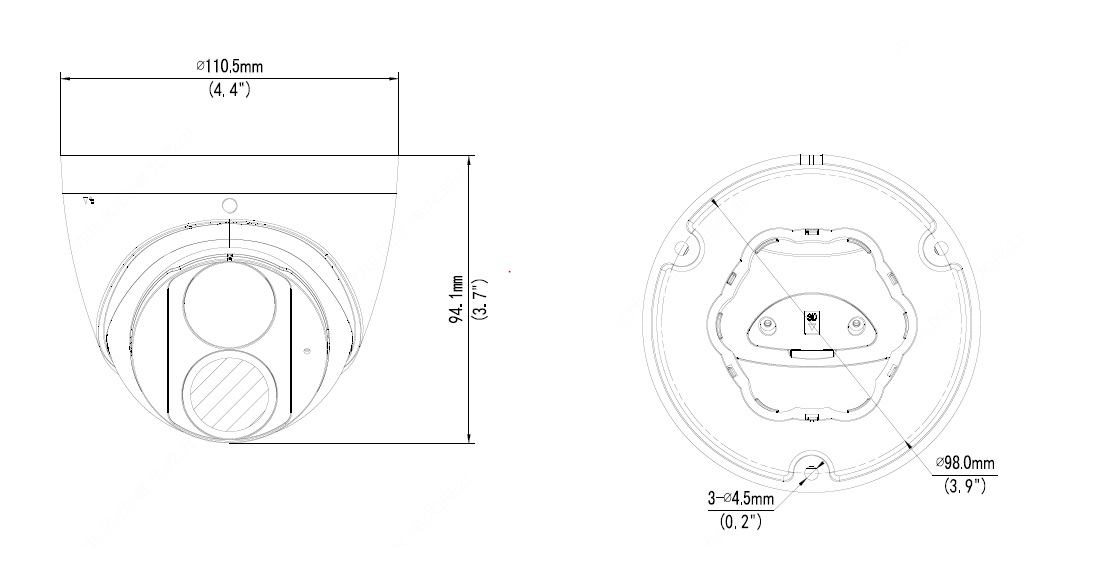

All dimensions are in millimetres (mm)

TR-JB03-G-IN

- Junction box for IPC32x and IPC31x cameras
- 109mm x 109mm x 39mm
- Weight: 200g

Call us for a price £13.00 You save: £13.00
TR-JB07/WM03-G-IN

- Wall mount for IPC361xL, IPC32x and IPC314x cameras
- 229mm x 127mm x 127mm
- Weight: 1kg

Call us for a price £25.00 You save: £25.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

Different ways of mounting this camera:



This camera has the following special features:

ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Enter Area - Entering into a pre-defined virtual region
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Tamper Identification - Detect when the camera has been physically tampered with

Tip: Watch in full screen mode
