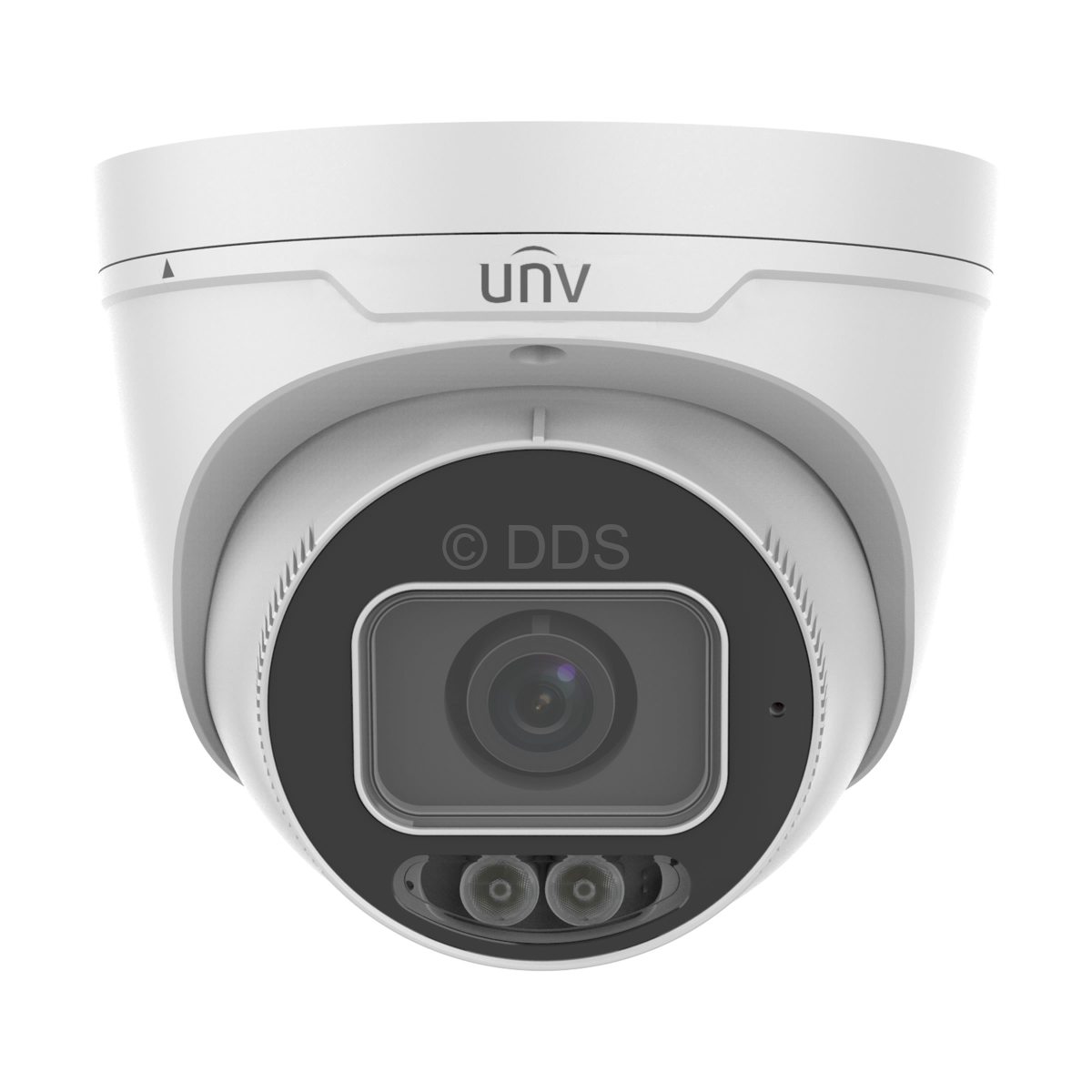

4K ColourHunter Eyeball Camera (8MP, AI, WhiteLight, Mic, WDR)

Call us for a price

IPC3638SE-ADF28K-WL-I0

Part of the Uniview ColourHunter+ series, this eyeball dome IP camera has an impressive 8 megapixel UHD resolution with a fixed 2.8mm lens. Supporting Ultra265 compression and 30m of White Light range, allowing this camera to stay in colour 24/7; this camera also features a built-in microphone and MicroSD card slot. Alongside this, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.

- Vandal Resistant (IK10 Rating)
- Resolution 8MP (3840 x 2160), POE
- Fixed 2.8mm Lens, Angles 110.15° (H)
- Up To 30m White Light Range
- Built-in Microphone
- Full Colour, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated
- 4kV Surge Protection

Camera

Image Sensor:
ColourHunter CMOS (1/1.8")
Resolution:
8MP (4K)
Effective Pixels (H x V):
3840 x 2160
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Yes
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
110.15°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

DORI

Detect:
63.0m
Observe:
25.2m
Recognise:
12.6m
Identify:
6.3m

Day/Night

Minimum Illumination:
Colour 0.0005Lux, 0Lux with IR on
White Light Range:
25-30m

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
3840x2160@30fps
Sub Stream:
720x576@30fps

General

Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 11W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
640g

Interface

Built-in Microphone:
Yes
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)

All dimensions are in millimetres (mm)

TR-JB03-H-IN

- Junction box for IPC363x Series and IPC36xxSS
- Screw hole allows this base to be used with pendant mounts
- 126mm x 126mm x 36mm
- Weight: 240g

Call us for a price £13.00 You save: £13.00
TR-JB07/WM03-F-IN

- Wall mount for IPC363x and IPC36xxS/E cameras
- 233mm x 125mm x 125mm
- Weight: 1kg

Call us for a price £25.00 You save: £25.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

Different ways of mounting this camera:



This camera has the following special features:

ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



IK10 Rating

An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5kg mass dropped from 400 mm above the impacted surface.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Enter Area - Entering into a pre-defined virtual region
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Tamper Identification - Detect when the camera has been physically tampered with
