Uniview 1ch Network Video Decoder

Home/Uniview IP/Uniview IP Recorders (NVR)/Video Decoders/Uniview 1ch Network Video Decoder

2 of 3

Save
100%

Call us for a price

Order Code: DC5601

Description

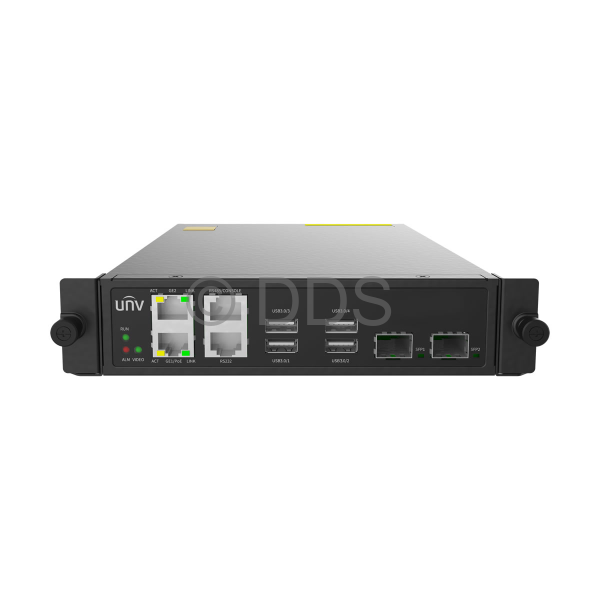

Uniview network video decoder, HDMI, VGA and SDI outputs. Decodes up to 64 channels at 2MP (1080P) or 8 channels at 8MP (4K) or 2 channels at 32MP (8K).

- Outputs: HDMI, VGA, SDI
- Up to 7680x4320@60Hz via HDMI output interfaces
- Decoding up to 32MP (8K) resolution

Technical Specifications
Output channel	1
HDMI output	Up to 7680×4320@60Hz
VGA ouput	Up to 1920×1200@60Hz
SDI output	Up to 1920×1080@60Hz
Decoding Capability	1x8K@60 / 2x8K@30 / 8x12MP@20 / 8x8MP@30 / 32x1080P@30 / 64x1080P@30
Display split	Up to 64
Alarm Input	4 (reserved)
Alarm Output	3 (reserved)
Audio Input	1-ch (reserved)
Audio Output	1-ch (reserved)
USB Interface	4 x USB 3.0
Serial Interface	1 x RS-232, 1 x RS485
Network Interface	2 x RJ-45 (10M/100M/1000M Ethernet) & 2 x Gigabit SFP optical port
Dimensions	277mm(W) x 191mm(D) x 40mm(H)
Weight	2kg
Working Temperature	-10 ~ +60°C
Working Humidity	10% ~ 90%(No-condensing)
Power Supply	12V DC
Consumption	15W
