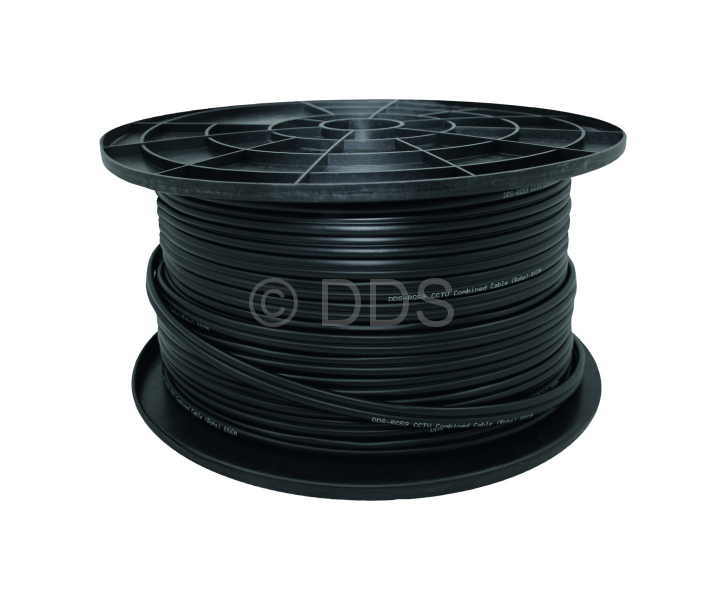

SFX RG59 Coax with 2 Core Power (100m)

(£70.80 inc VAT)


RG59 Cable which also incorporates 2 core power cable (also known as shotgun). The power cable runs along the side of the coax and will allow you to power your cameras

- RG59+2 core for power. Ideal for centralised power distribution
- 100m per roll
- Can be used with Crimp and Twist-On BNC Connectors
- Colour: Black


Technical Specifications
Cable Construction
Inner Conductor Inner Conductor
Inner Conductor 2 Bare Copper
Conductor Diameter (mm) 0.58 ±0.008
Conductor 2 Diameter (mm) 0.20 ±0.01 x 16
Braid CCA (Copper Clad Aluminium)
Braid Construction 0.12 ±0.008 x 16 x 7
Insulation Material PE
Insulation 2 Material PVC
Insulation Thickness (mm) 1.60 ±0.01
Insulation 2 Thickness (mm) 0.42 ±0.03
Insulation Colour Clear
Insulation 2 Colours Red, Black
Jacket Material PVC
Jacket 2 Material PVC
Jacket Thickness (mm) 0.85 ±0.10
Jacket 2 Thickness (mm) 0.50 ±0.10
Jacket Colour Black RAL 9005
Jacket 2 Colour Black RAL 9005
Overall Diameter (mm) 6.10 ±0.10
Overall Diameter 2 (mm) 4.10 ±0.10
Overall Sheath PVC
Test Standards CE2014/30/EU, RoHS2 2011/65/EU, LVD 2014/35/EU
Flame Propagation Standard Eca
