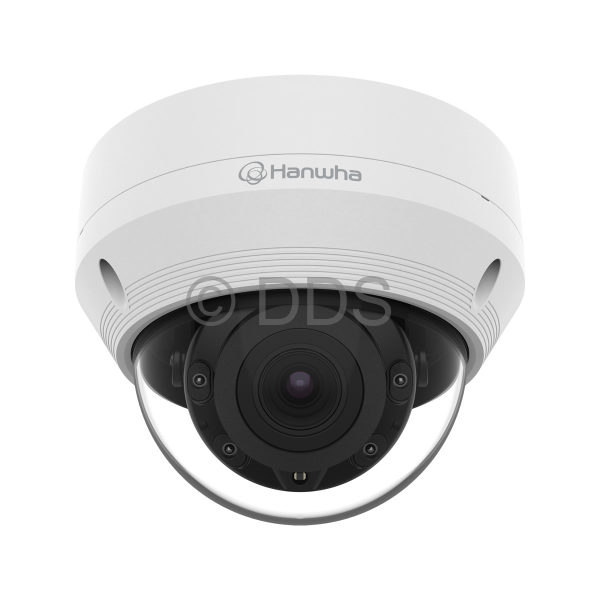

Motorised External Dome Camera (2MP, WDR)
Save
100%
100%
Part of the Hanwha Q-series, this Hanwha IP vandal dome camera boasts an impressive 2 megapixel HD recording resolution and a motorised 3.2-10mm auto-focusing lens. Supporting H.264/H.265 compression and 30m of IR range; this camera also features a built-in MicroSD card slot.
- Vandal Resistant (IK10 Rating)
- Resolution: 2MP (1920 x 1080), POE
- Motorised 3.2-10mm Lens, Angles 109° ~ 33° (H)
- Smart IR, Up To 30m IR Range
- MicroSD Card Slot
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 55°C
- Metal Housing, IP66 Rated
Camera
Image Sensor:
CMOS (1/2.8")
Aperture:
F1.6 (Wide) ~ F2.9 (Tele)
Resolution:
2MP
Effective Pixels (H x V):
1920 x 1080
Shutter Speed:
Auto/Manual, 1/5~1/12000s
Back Light Compensation:
Yes
Wide Dynamic Range:
120dB
Digital Noise Reduction:
SSNR
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
Lens:
Motorised 3.2-10mm Lens
Field of View:
109° ~ 33°
Onboard Recording:
Yes, to MicroSD card up to 128GB
DORI
Detect:
Wide: 27.4m / Tele: 128.8m
Observe:
Wide: 11.0m / Tele: 51.5m
Recognise:
Wide: 5.5m / Tele: 25.8m
Identify:
Wide: 2.7m / Tele: 12.9m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.03Lux, 0Lux with IR on
IR Range:
25-30m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
ONVIF:
Supports ONVIF (Profile G, S, T)
POE:
Yes
Main Stream:
1920x1080@30fps
Sub Stream:
720x576@30fps
General
Power:
DC 12V / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 7.7W
Operating Temperature:
-10°C ~ +55°C
Operating Humidity:
0% - 90% RH
Ingress Protection:
IP66
Weight:
710g
This camera has the following special features:
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Enter Area - Entering into a pre-defined virtual region
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave/Exit Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Identification - Detect when the camera has been physically tampered with
