Motorised Bullet Camera (2MP, WDR)
Save
100%
100%

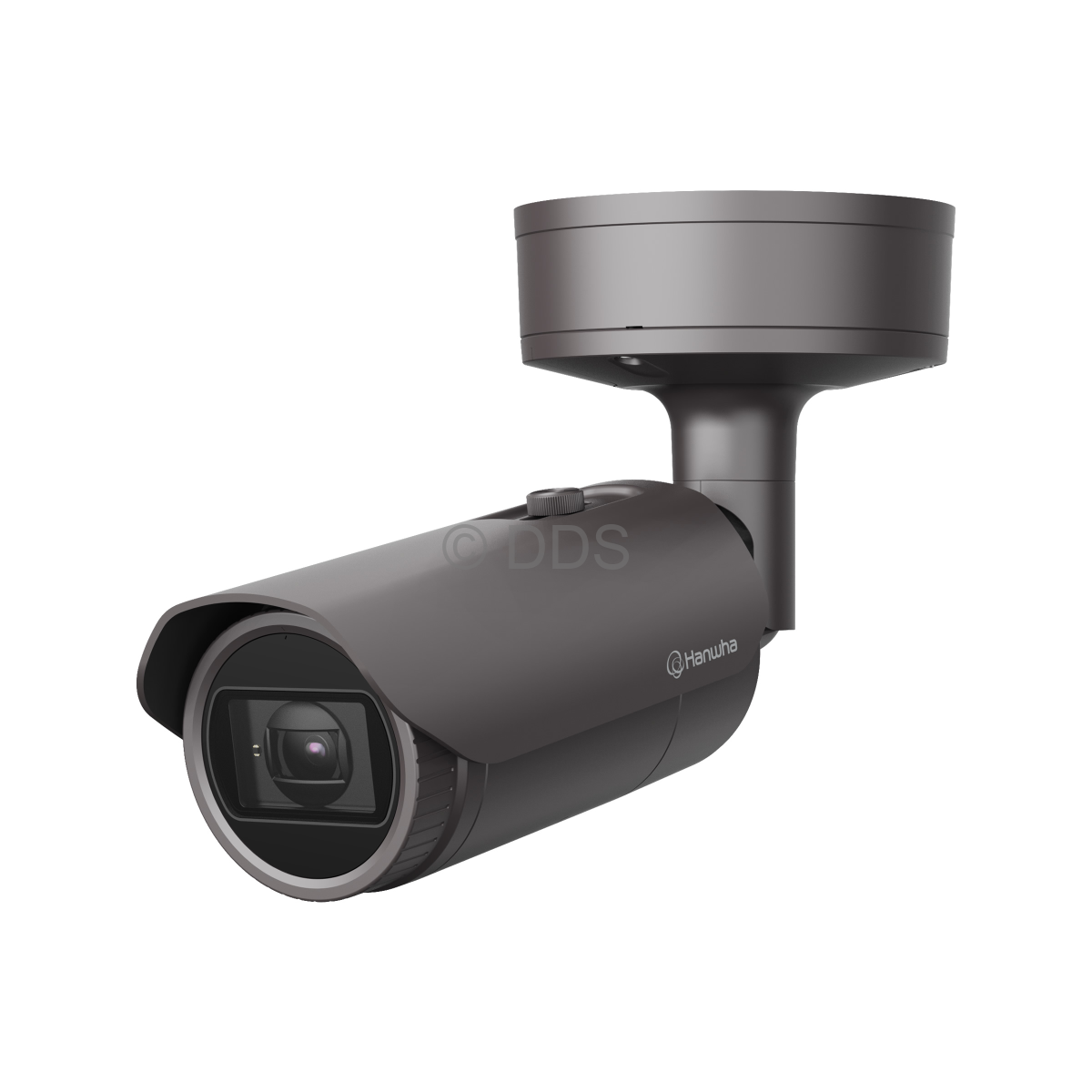

Part of the Hanwha X-series, this Hanwha IP bullet camera boasts an impressive 2 megapixel HD recording resolution and a motorised 2.8-12mm auto-focusing lens. Supporting H.264/H.265 compression and 50m of IR range; this camera also features a built-in MicroSD card slot.
- Vandal Resistant (IK10 Rating)
- Resolution: 2MP (1920 x 1080), POE
- Motorised 2.8-12mm Lens, Angles 119.5° ~ 27.9° (H)
- Smart IR, Up To 50m IR Range
- MicroSD Card Slot
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -40°C to 55°C
- Metal Housing, NEMA4X
Camera
Image Sensor:
CMOS (1/2.8")
Aperture:
F1.4 (Wide) ~ F3.6 (Tele)
Resolution:
2MP
Effective Pixels (H x V):
1920 x 1080
Shutter Speed:
Auto/Manual, 2~1/12000s
Back Light Compensation:
Yes
Wide Dynamic Range:
150dB
Digital Noise Reduction:
SSNR
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
Lens:
Motorised 2.8-12mm Lens
Field of View:
119.5° ~ 27.9°
Onboard Recording:
Yes, to MicroSD card up to 512GB
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.015Lux, 0Lux with IR on
IR Range:
45-50m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
ONVIF:
Supports ONVIF (Profile G, S, T)
POE:
Yes
Main Stream:
1920x1080@60fps
Sub Stream:
720x576@60fps
General
Power:
AC 24V / DC 12V / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 15W
Operating Temperature:
-30°C ~ +55°C
Operating Humidity:
0% - 90% RH
Ingress Protection:
IP67 / NEMA4X
Weight:
2180g
Interface
Video Outputs:
CVBS (x1)
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)
This camera has the following special features:
IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5kg mass dropped from 400 mm above the impacted surface.
NEMA4X Rating
The NEMA system is a tiered rating system established by the National Electrical Manufacturers Association. Each rating identifies a specific set of protective characteristics that an enclosure with that rating provides. A NEMA4X rating means the product is protected against the ingress of foreign objects (such as dust), water and is corrosion-resistant.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Auto-Tracking (digital) - Tracking a specific target until it is out of range
- Audio Detection - Detect a sudden increase or decrease in sound
- Directional Detection - Detect an object moving in a specified direction
- Enter Area - Entering into a pre-defined virtual region
- Face Detection - Detect a human face
- Fog Detection - Detects fog
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave/Exit Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Identification - Detect when the camera has been physically tampered with
