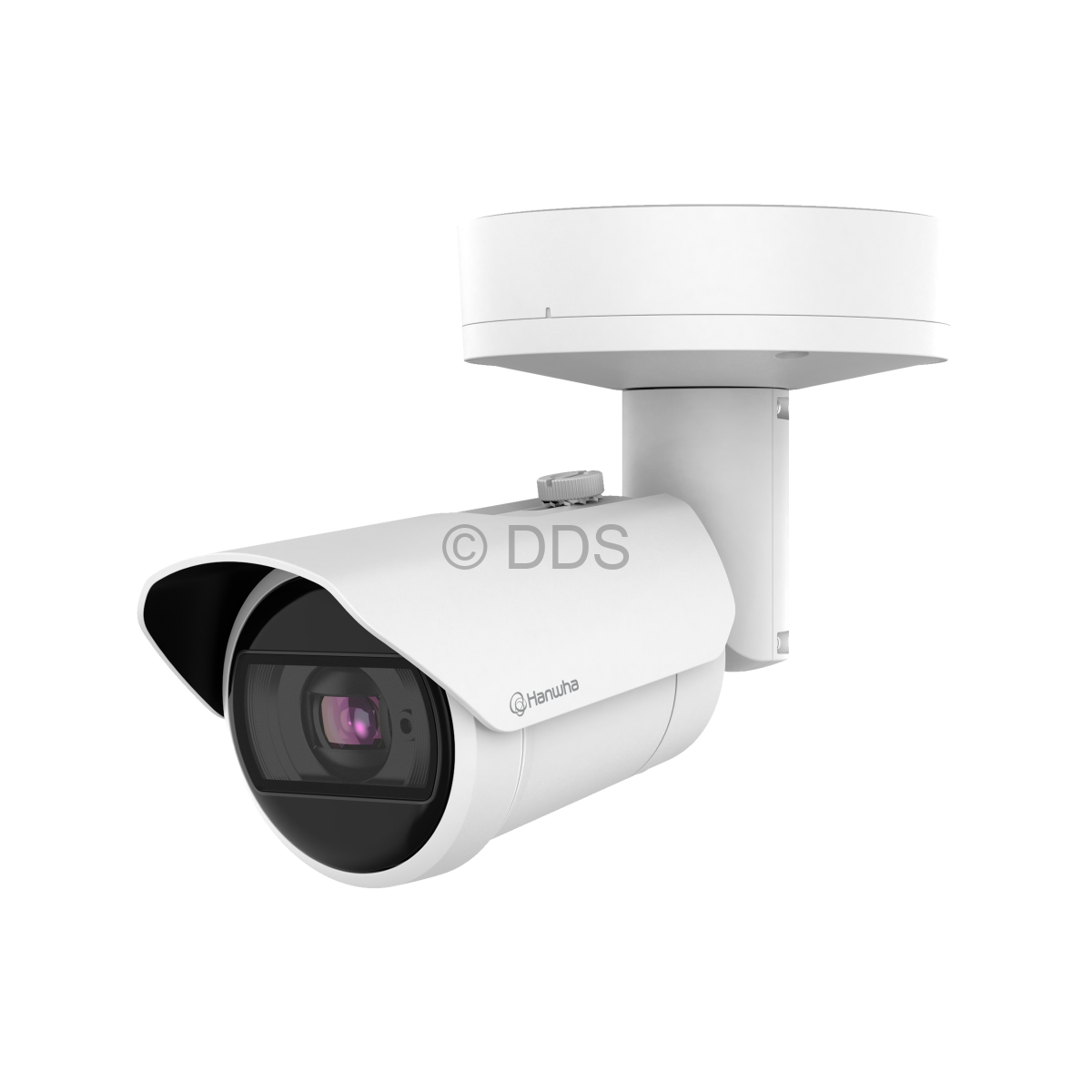

Motorised AI Bullet Camera (8MP, WDR)
Save
100%
100%
Part of the Hanwha X-series, this Hanwha IP bullet camera boasts an impressive 8 megapixel UHD recording resolution and a motorised 4.4-9.3mm auto-focusing lens. Supporting H.264/H.265/WiseStream II/WiseStream III compression and 40m of IR range; this camera also features a built-in MicroSD card slot and an onboard NPU (Neural Processing Unit) for AI analytics.
- Vandal Resistant (IK10 Rating)
- Resolution: 8MP (3840 x 2160), POE
- Motorised 4.4-9.3mm Lens, Angles 113° ~ 47° (H)
- WiseIR, Up To 40m IR Range
- MicroSD Card Slot
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -40°C to 55°C
- Metal Housing, NEMA4X
Camera
Image Sensor:
CMOS (1/1.8")
Aperture:
F1.3 (Wide) ~ F2.15 (Tele)
Resolution:
8MP (4K)
Effective Pixels (H x V):
3840 x 2160
Shutter Speed:
Auto/Manual, 2~1/12000s
Back Light Compensation:
Yes
Wide Dynamic Range:
120dB
Digital Noise Reduction:
SSNR
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
Lens:
Motorised 4.4-9.3mm Lens
Field of View:
113° ~ 47°
Onboard Recording:
Yes, to MicroSD card up to 512GB
DORI
Detect:
Wide: 50.8m / Tele: 176.6m
Observe:
Wide: 20.3m / Tele: 70.7m
Recognise:
Wide: 10.2m / Tele: 35.3m
Identify:
Wide: 5.1m / Tele: 17.7m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.04Lux, 0Lux with IR on
IR Range:
35-40m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
ONVIF:
Supports ONVIF (Profile G, S, T)
POE:
Yes
Main Stream:
3840x2160@30fps
Sub Stream:
720x576@30fps
General
Power:
DC 12V / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 12.95W
Operating Temperature:
-40°C ~ +55°C
Operating Humidity:
0% - 90% RH
Ingress Protection:
IP67 / NEMA4X
Weight:
1640g
Interface
Video Outputs:
USB (x1)
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)
This camera has the following special features:
AI (Artificial Intelligence)
AI allows the camera to use object classification (such as humans and vehicles), instead of the conventional pixel-based motion detection; this reduces the occurrence of false alarms which increases operational efficiency. This feature requires an AI-compatible NVR.
IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5kg mass dropped from 400 mm above the impacted surface.
NEMA4X Rating
The NEMA system is a tiered rating system established by the National Electrical Manufacturers Association. Each rating identifies a specific set of protective characteristics that an enclosure with that rating provides. A NEMA4X rating means the product is protected against the ingress of foreign objects (such as dust), water and is corrosion-resistant.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Enter Area - Entering into a pre-defined virtual region
- Face Detection - Detect a human face
- Fog Detection - Detects fog
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave/Exit Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Identification - Detect when the camera has been physically tampered with
