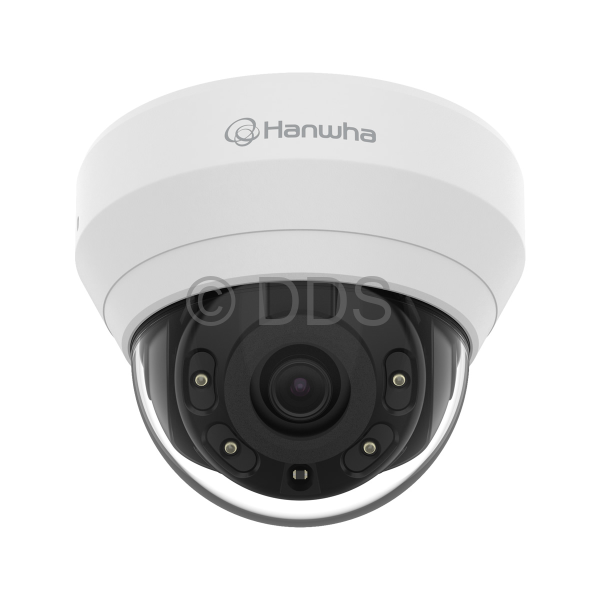

Internal Dome Camera (4MP, 2.8mm, Mic)
Save
100%
100%
Part of the Hanwha Q-series, this Hanwha IP dome camera boasts an impressive 4 megapixel HD recording resolution and a 2.8mm fixed-focal lens. Supporting H.264/H.265 compression and 20m of IR range; this camera also features a built-in microphone and MicroSD card slot.
- Resolution: 4MP (2560 x 1440), POE
- Fixed 2.8mm Lens, Viewing Angle 108° (H)
- Smart IR, Up To 20m IR Range
- Built-in Microphone
- MicroSD Card Slot
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -10°C to 55°C
- Plastic Housing
Camera
Image Sensor:
CMOS (1/3")
Aperture:
F2.0
Resolution:
4MP
Effective Pixels (H x V):
2560 x 1440
Shutter Speed:
Auto/Manual, 1/5~1/12000s
Back Light Compensation:
Yes
Wide Dynamic Range:
120dB
Digital Noise Reduction:
SSNR
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
Lens:
Fixed 2.8mm Lens
Field of View:
108°
Onboard Recording:
Yes, to MicroSD card up to 128GB
DORI
Detect:
37.5m
Observe:
15.0m
Recognise:
7.5m
Identify:
3.8m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.15Lux, 0Lux with IR on
IR Range:
15-20m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
ONVIF:
Supports ONVIF (Profile G, S, T)
POE:
Yes
Main Stream:
2560x1440@30fps
Sub Stream:
720x576@25fps
General
Power:
DC 12V / PoE (IEEE 802.3af)
Housing:
Plastic
Power Consumption:
Max 7.9W
Operating Temperature:
-10°C ~ +55°C
Operating Humidity:
0% - 90% RH
Ingress Protection:
N/A
Weight:
255g
Interface
Built-in Microphone:
Yes
Alarm I/O:
Alarm input (x1), Alarm output (x1)
All dimensions are in millimetres (mm)
This camera has the following special features:
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Enter Area - Entering into a pre-defined virtual region
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave/Exit Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Identification - Detect when the camera has been physically tampered with
