Established in 2005 (UK)

Internal Dome Camera (2MP, WDR)

Home/Hanwha Vision/Q Series/Q Series Dome Cameras/Internal Dome Camera (2MP, WDR)

7 of 16

Save
100%

Call us for a price

*Lead time of 2-3 days*

Order Code: QND-6022R1

Description
Specification
Dimensions
Special Features

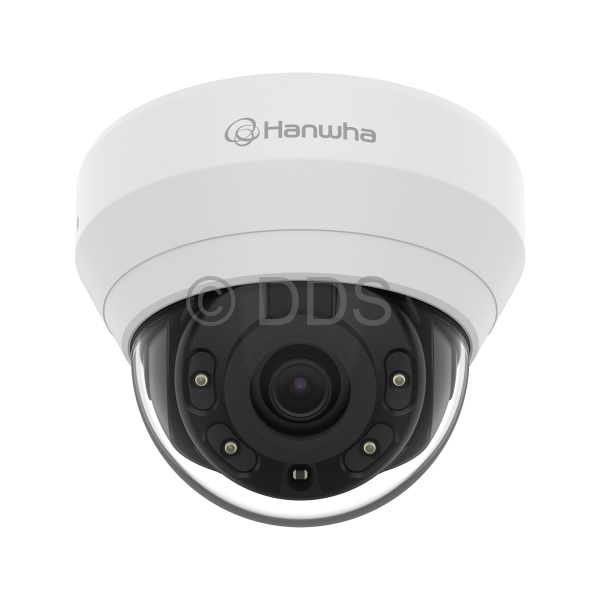

Part of the Hanwha Q-series, this Hanwha IP dome camera boasts an impressive 2 megapixel HD recording resolution and a 4mm fixed-focal lens. Supporting H.264/H.265 compression and 20m of IR range; this camera also features a built-in MicroSD card slot.

- Resolution: 2MP (1920 x 1080), POE
- Fixed 4mm Lens, Viewing Angle 88° (H)
- Smart IR, Up To 20m IR Range
- MicroSD Card Slot
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -10°C to 55°C
- Plastic Housing

Camera

Image Sensor:

CMOS (1/2.8")

Aperture:

F2.0

Resolution:

2MP

Effective Pixels (H x V):

1920 x 1080

Shutter Speed:

Auto/Manual, 1/5~1/12000s

Back Light Compensation:

Yes

Wide Dynamic Range:

120dB

Digital Noise Reduction:

SSNR

Gain Control:

Low / Middle / High

White Balance:

ATW / AWC / Manual / Indoor / Outdoor

Lens:

Fixed 4mm Lens

Field of View:

88°

Onboard Recording:

Yes, to MicroSD card up to 128GB

DORI

Detect:

40.0m

Observe:

16.0m

Recognise:

8.0m

Identify:

4.0m

Day/Night

Day & Night:

IR Cut Filter (Smart IR)

Minimum Illumination:

Colour 0.03Lux, 0Lux with IR on

IR Range:

15-20m

Network

Ethernet:

RJ45 10/100

Supported Protocols:

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH

ONVIF:

Supports ONVIF (Profile G, S, T)

POE:

Yes

Main Stream:

1920x1080@30fps

Sub Stream:

720x576@25fps

General

Power:

DC 12V / PoE (IEEE 802.3af)

Housing:

Plastic

Power Consumption:

Max 7.4W

Operating Temperature:

-10°C ~ +55°C

Operating Humidity:

0% - 90% RH

Ingress Protection:

N/A

Weight:

255g

Interface

Alarm I/O:

Alarm input (x1), Alarm output (x1)

All dimensions are in millimetres (mm)

This camera has the following special features:

VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

Enter Area - Entering into a pre-defined virtual region
Intrusion Detection - Entering and loitering in a pre-defined virtual region
Leave/Exit Area - Leaving a pre-defined virtual region
Line Crossing - Detect when a pre-defined virtual line has been crossed
Motion Detection - Movement within a pre-defined virtual region
Tamper Identification - Detect when the camera has been physically tampered with
