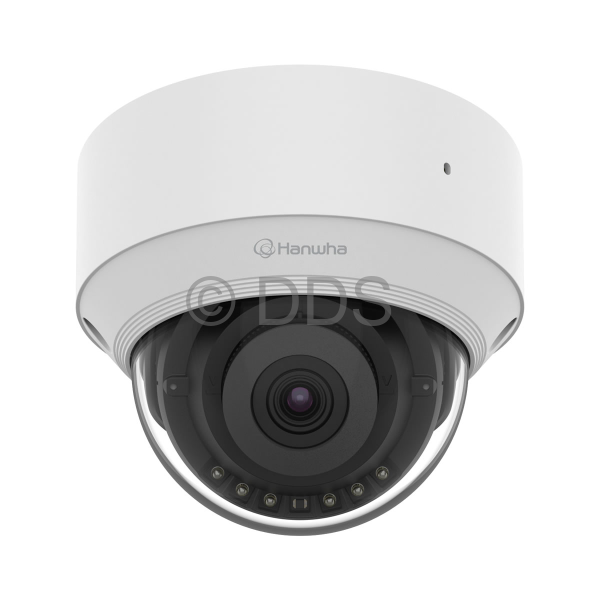

External AI Dome Camera (5MP, 4mm, Mic)
Save
100%
100%
Part of the Hanwha Q-series, this Hanwha IP dome camera boasts an impressive 5 megapixel HD recording resolution and a 4mm fixed-focal lens. Supporting H.264/H.265/WiseStream II/WiseStream III compression and 25m of IR range; this camera also features a built-in MicroSD card slot, microphone and an onboard NPU (Neural Processing Unit) for AI analytics.
- Vandal Resistant (IK10 Rating)
- Resolution: 5MP (2592 x 1944), POE
- Fixed 4mm Lens, Viewing Angle 80° (H)
- Smart IR, Up To 25m IR Range
- Built-in Microphone
- MicroSD Card Slot
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265
- ONVIF Compliance (Profile G, M, S, T)
- Temperature Range -10°C to 45°C
- Plastic/Metal Housing
- IP66 Rated
Camera
Image Sensor:
CMOS (1/2.8")
Aperture:
F1.6
Resolution:
5MP
Effective Pixels (H x V):
2592 x 1944
Shutter Speed:
Auto/Manual, 1/5~1/25000s
Back Light Compensation:
Yes
Wide Dynamic Range:
120dB
Digital Noise Reduction:
SSNR
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
Lens:
Fixed 4mm Lens
Field of View:
80°
Onboard Recording:
Yes, to MicroSD card up to 256GB
DORI
Detect:
61.8m
Observe:
24.7m
Recognise:
12.4m
Identify:
6.2m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.05Lux, 0Lux with IR on
IR Range:
25-30m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
ONVIF:
Supports ONVIF (Profile G, M, S, T)
POE:
Yes
Main Stream:
2592x1944@30fps
Sub Stream:
720x576@30fps
General
Power:
PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 8.1W
Operating Temperature:
-10°C ~ +45°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP66
Weight:
579g
Interface
Built-in Microphone:
Yes
Alarm I/O:
Alarm input (x1), Alarm output (x1)
All dimensions are in millimetres (mm)
This camera has the following special features:
AI (Artificial Intelligence)
AI allows the camera to use object classification (such as humans and vehicles), instead of the conventional pixel-based motion detection; this reduces the occurrence of false alarms which increases operational efficiency. This feature requires an AI-compatible NVR.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Attribute Classification - Detects and classifies attributes of humans and vehicles such as colours of clothing and types of vehicles
- Enter Area - Entering into a pre-defined virtual region
- Heatmap - Generates a map of the hotspots of movement detected
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave/Exit Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- People Counting - Counts the number of humans detected
- Tamper Identification - Detect when the camera has been physically tampered with
- Vehicle Counting - Counts the number of vehicles detected
