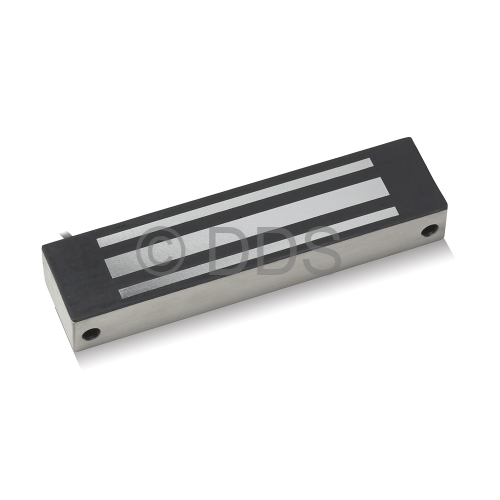

External Midi Stainless Steel Magnet

 Weatherproof electromagnetic locks are specifically designed for high-profile openings that require less obtrusive surface mount locks with an aesthetically superior appearance. They are available for surface and face mount installations with a wide range of brackets for easy installation on any kind of door and door frame. Specially designed with up to 363kg (800 lbs) holding force.

- Operating voltage 12~24V DC
- Fail-Safe (Power-to-Lock)
- Holding force up to 800lbs (363kg)
- Voltage tolerance: ±15%
- Current draw: 340mA at 12Vdc, 250mA at 24Vdc (at temperature 20°C)
- Lock’s surface temperature: Current temperature ±20% (when power is on)
- Built-in magnetic bond sensor monitor output remotely monitors the door lock or unlock status (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc)
- IP65
- Supplied with armature plate
