PAC 212 LF Controller (Enclosure)

Call us for a price

*Lead time of 2-3 days*

CPAC-909033074

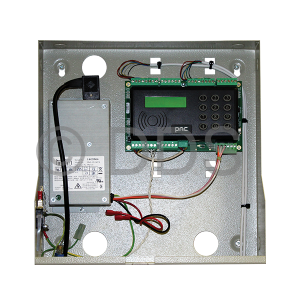

The PAC 212 Access controller range provides cost effective deployment of fully featured access control without the need for any additional software. Built on the PAC 512 controller, the PAC 212 is a standalone access controller that supports onsite programming via an onboard keypad. Pre-wired with 3 Amp PSU in metal case with tamper switch and circuit

- In-built LF proximity reader
- Configurable for Residential or Commercial Applications
- Up to 2,000 ID Devices
- 2 Readers per channel when using PAC or PAC64bit output readers
- Database and Events are exportable on USB drive (included) and viewable on any device with a Windows operating system.



Technical Specifications
Number of ID Devices supported 2000
Supported access control reader protocol PAC and PAC64
Supported ID Device formats PAC (Cards and Tokens)
Key PAC (Cards and Tokens)
Stanley (Cards and Tokens)
PAC Ops™ Lite (Cards and Tokens)
PAC Ops™ (Cards and Tokens)
Number of doors supported 2 doors with up to 4 access control devices as per the following options:
- An access control reader per door
- An access control reader and Push To Exit (PTE) device per door
- 2 access control readers per door (read-in and read-out)
LCD Display Backlit LCD display for full user notification and engineering settings
Configuration Locally using the integrated keypad and administration reader
Via PC with PAC Access Central/EasiNet Residential software (4.6 version or above required)
Event storage 4000 events stored locally that can be exported to a PC via a USB memory device
Access Controller input devices PAC readers (LF, HF and MT)
PAC PTE switches
Door contacts
Input connection features Programmable relays for Door forced / left open
1 x tamper alarm input
1 x override input
Output connection features 2 x Lock outputs
2 x Auxiliary Outputs
Distance to input devices 70m
Recommended Cabling 0.22mm 8 core alarm cable
Power input 10.5 – 28 V DC
50/60 Hz @ 350mA
Power outputs 2 x 5Amp @ 30V DC
Standards Compliance CE, RoHS & WEEE compliant
Operating temperature range 0°С to +35°С
Permissible humidity 10% to 85%
Dimensions 335mm х 335mm x 90mm
