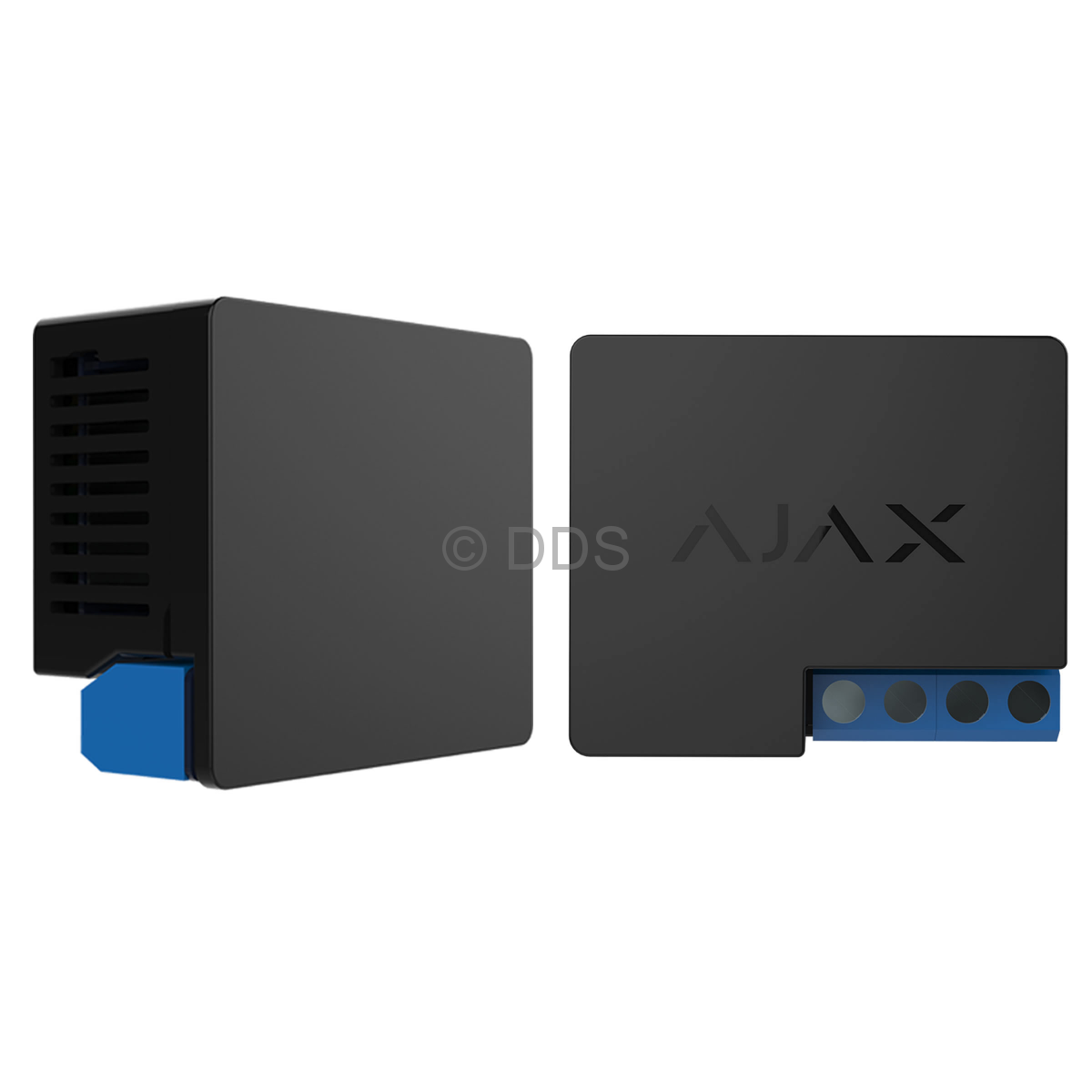

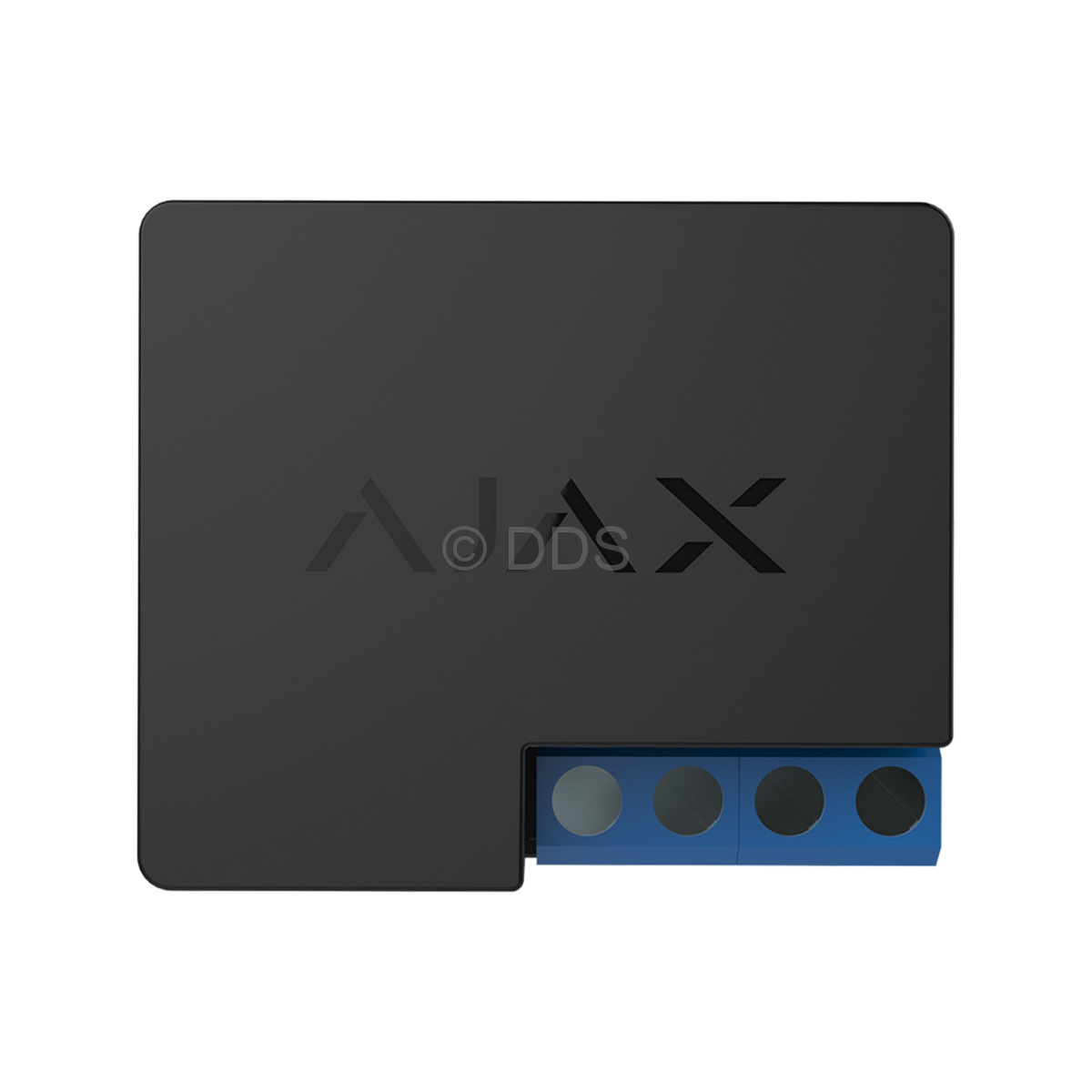

WallSwitch Appliance Controller
Save
100%
100%
A radio channel controller which allows you to control domestic appliances remotely. It is used to switch on/off any appliances such as irons, garage gates, water heaters, and heat-insulated floors. The device switches off automatically during overcurrent, voltage surge and overheating. It also provides information on energy consumption which is available in the mobile application.
- Operates in 110 V and 220 V
- Rated for 200,000 switch ons
- Maximum load current of 13A
- Resistive load of up to 1.5kW (110V) / 3kW (230V)
| Technical Specifications | |
| Classification | Radio channel relay unit |
| Installation method | Into wall plate |
| Compatibility | Operates with Hub, Hub Plus, Hub 2, and ReX |
| Actuating element | Relay |
| Voltage protection | For 230 V mains: min 161V / max 264V For 110 V mains: min 77V / max 126V |
| Relay service life | 200,000 switch-ons |
| Maximum load current |
13A |
| Maximum temperature protection | >65°C in the wall plate |
| Permissible power | Resistive load at 230 V: up to 3 kW Resistive load at 110 V: up to 1.5 kW |
| Energy consumption parameter check | Current, voltage, power consumption |
| Alarm signal delivery time | 0.15s |
| Jeweller radio technology | Communication range with central unit: up to 1,000 m in an open space Two-way communication between devices Operating frequencies: 868.0 - 868.6 MHz Self-adjusting RF output power: up to 25mW Block encryption based on AES algorithm Device polling period: 12−300 s |
| Power supply | 110-230 V±10% 50/60Hz |
| Permissible humidity | Up to 75% |
| Operating temperature range | 0°С to +64°С |
| Anti-sabotage | Protection against fraud Jamming detection |
| Dimensions | 39mm х 33mm × 18mm |
| Weight | 30g |
| Certification | CE, IP20 |
