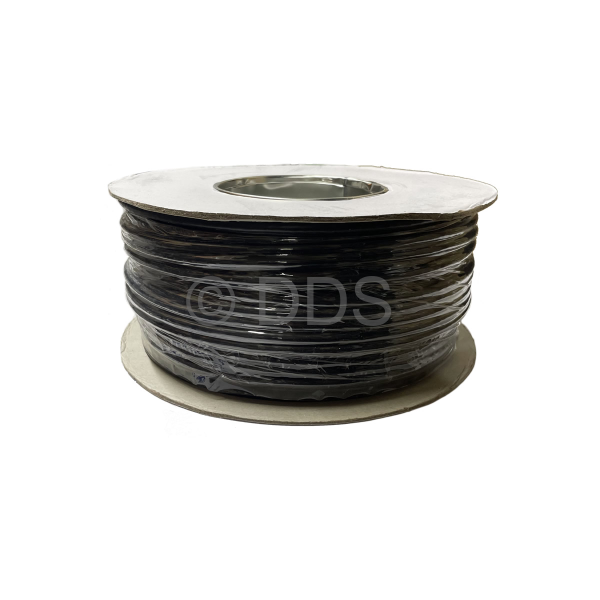

Outdoor CAT5e (Double Sheath, Solid Copper, PE+PVC, 100m)
This cable is specifically designed for CCTV use over long distances
- Cat5e UTP Double Sheath
- 4 pairs, solid cable
- 100m
- Solid Copper
- Colour: Black
| Technical Specifications | |
| Cable Construction | |
| Conductor | Bare Copper |
| Conductor Diameter (mm) | 0.495 ±0.005 |
| AWG | 24 |
| Insulation | |
| Insulation Diameter (mm) | 0.09 ±0.05 |
| Insulation Colours | Blue+White/Blue; Orange+White/Orange; Green+White/Green; Brown+White/Brown |
| Jacket | |
| 1st Jacket Material | PVC |
| Jacket Thickness (mm) | 0.8 |
| Overall Diameter (mm) | 5.8 ±0.2 |
| 2nd Jacket Material | PE |
| Jacket Thickness (mm) | 0.3 |
| Overall Diameter (mm) | 6.4 ±0.2 |
| Electrical Characteristics | |
| Max Conductor DC resistance @ 20°C | <96Ω/km |
| Rated Temperature | 60°C |
